FICM/PCM Harness Resistance

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Savana, 2003 Chevrolet Silverado, and 2003 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch to LOCK position. Disconnect FICM or PCM and appropriate component harness connectors. Check for open or short circuits between appropriate PCM harness connector terminal and appropriate component harness connector terminal. If harness is open or shorted, repair as necessary.

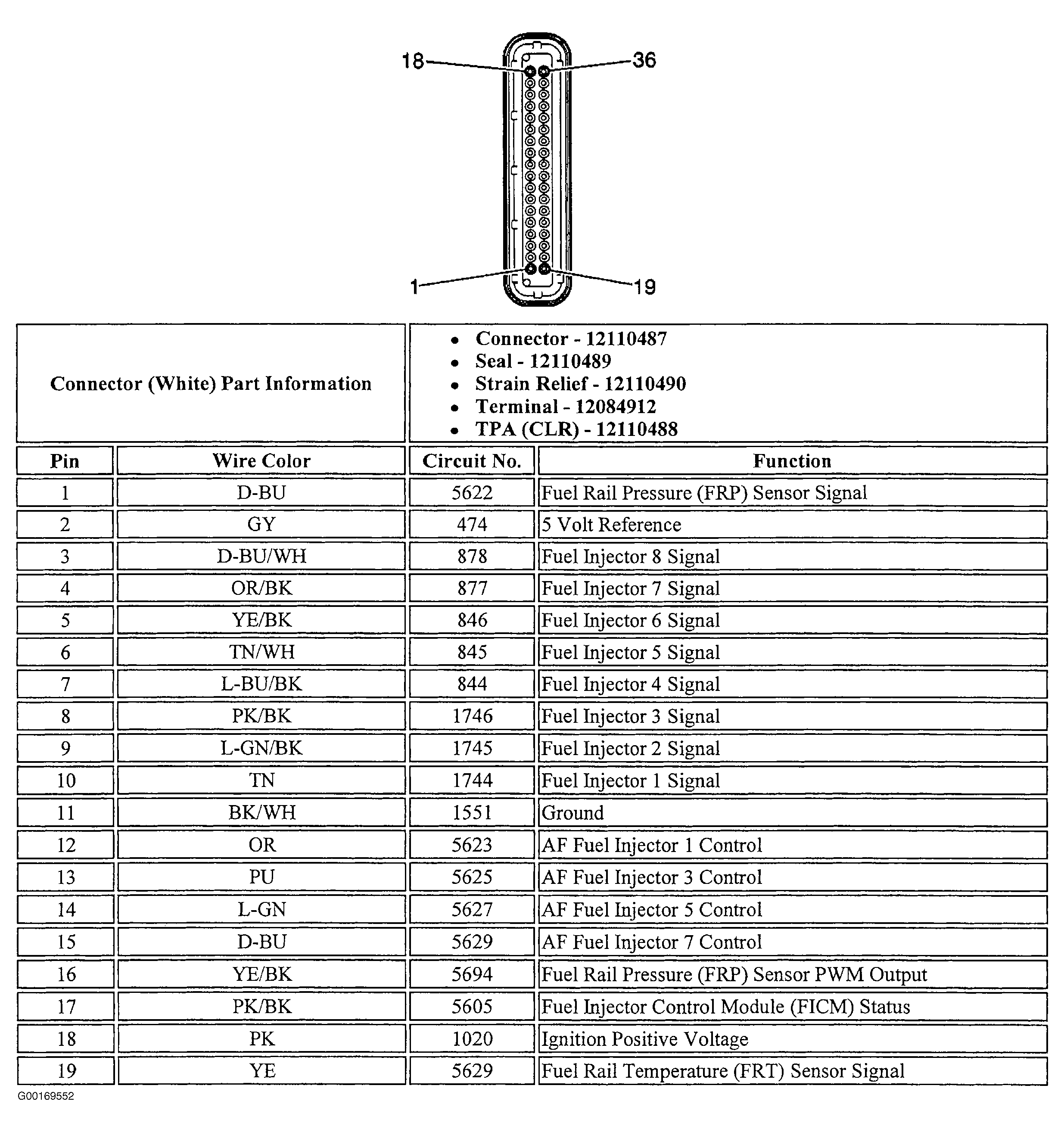

Fig 1: Identifying Fuel Injector Control Module Connector Terminals (1 Of 2)

G00169552

Courtesy of GENERAL MOTORS CORP.

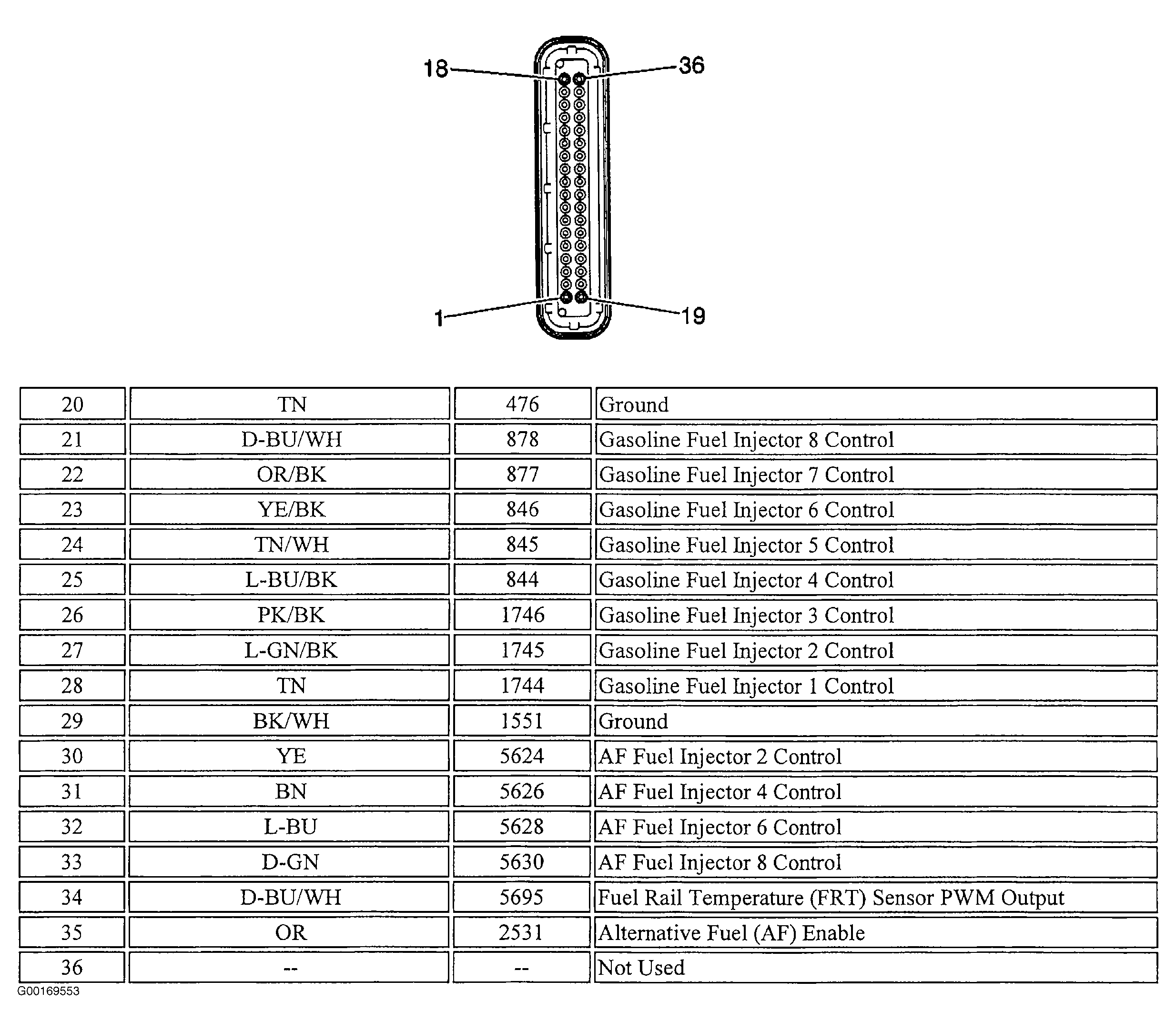

Fig 2: Identifying Fuel Injector Control Module Connector Terminals (2 Of 2)

G00169553

Courtesy of GENERAL MOTORS CORP.

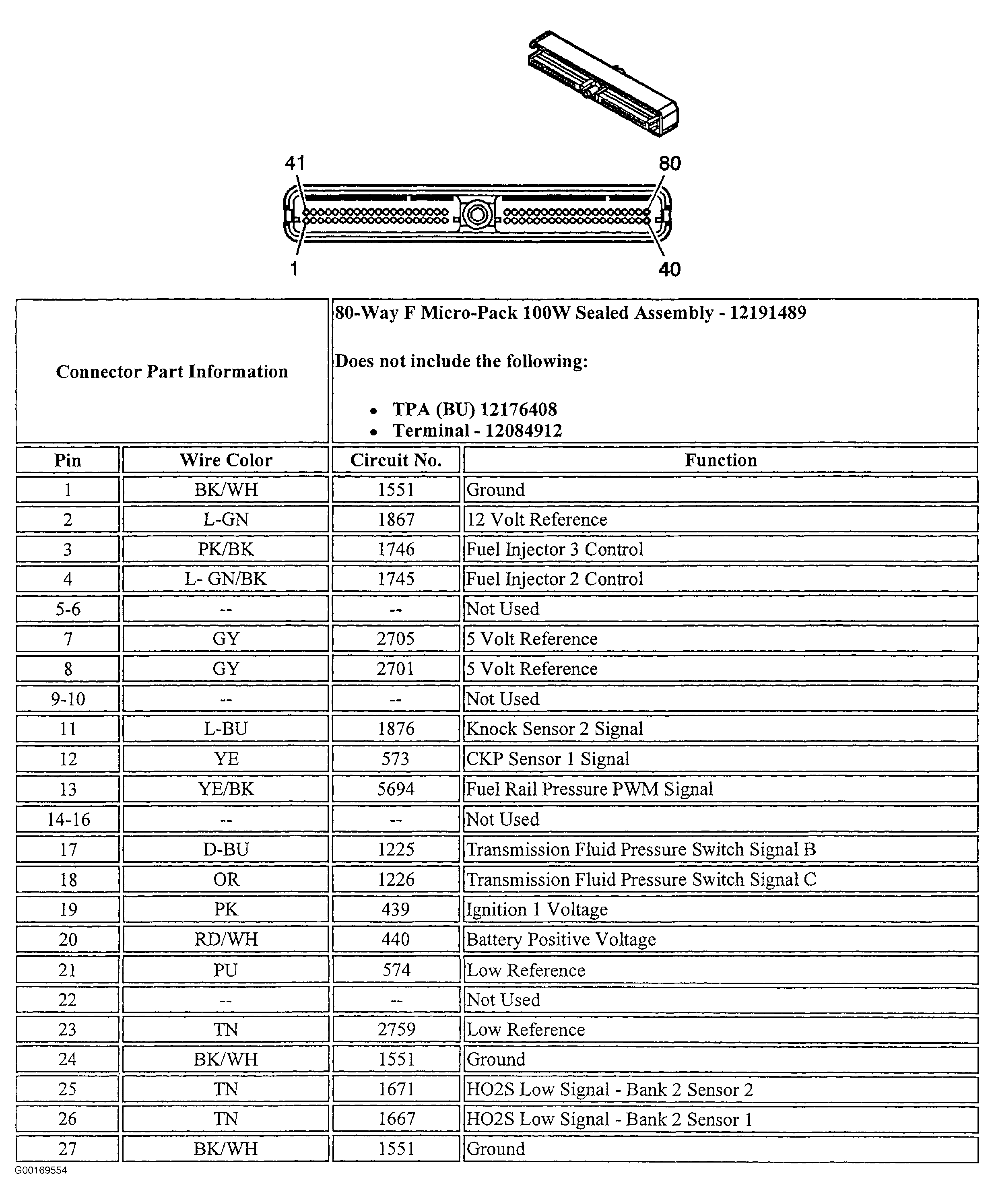

Fig 3: Identifying PCM Connector C1 Terminals - Chevy Express & Savana (1 Of 3)

G00169554

Courtesy of GENERAL MOTORS CORP.

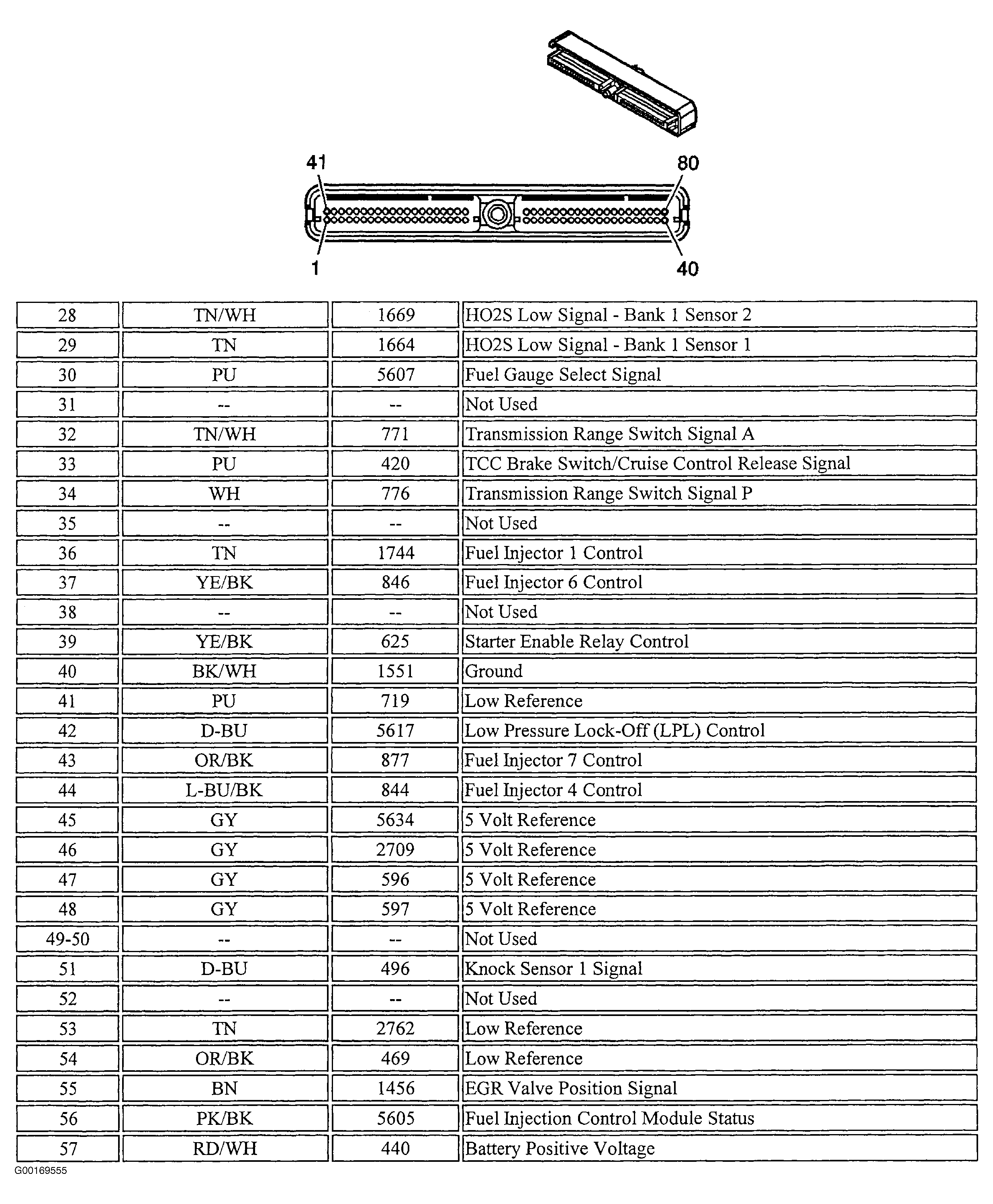

Fig 4: Identifying PCM Connector C1 Terminals - Chevy Express & Savana (2 Of 3)

G00169555

Courtesy of GENERAL MOTORS CORP.

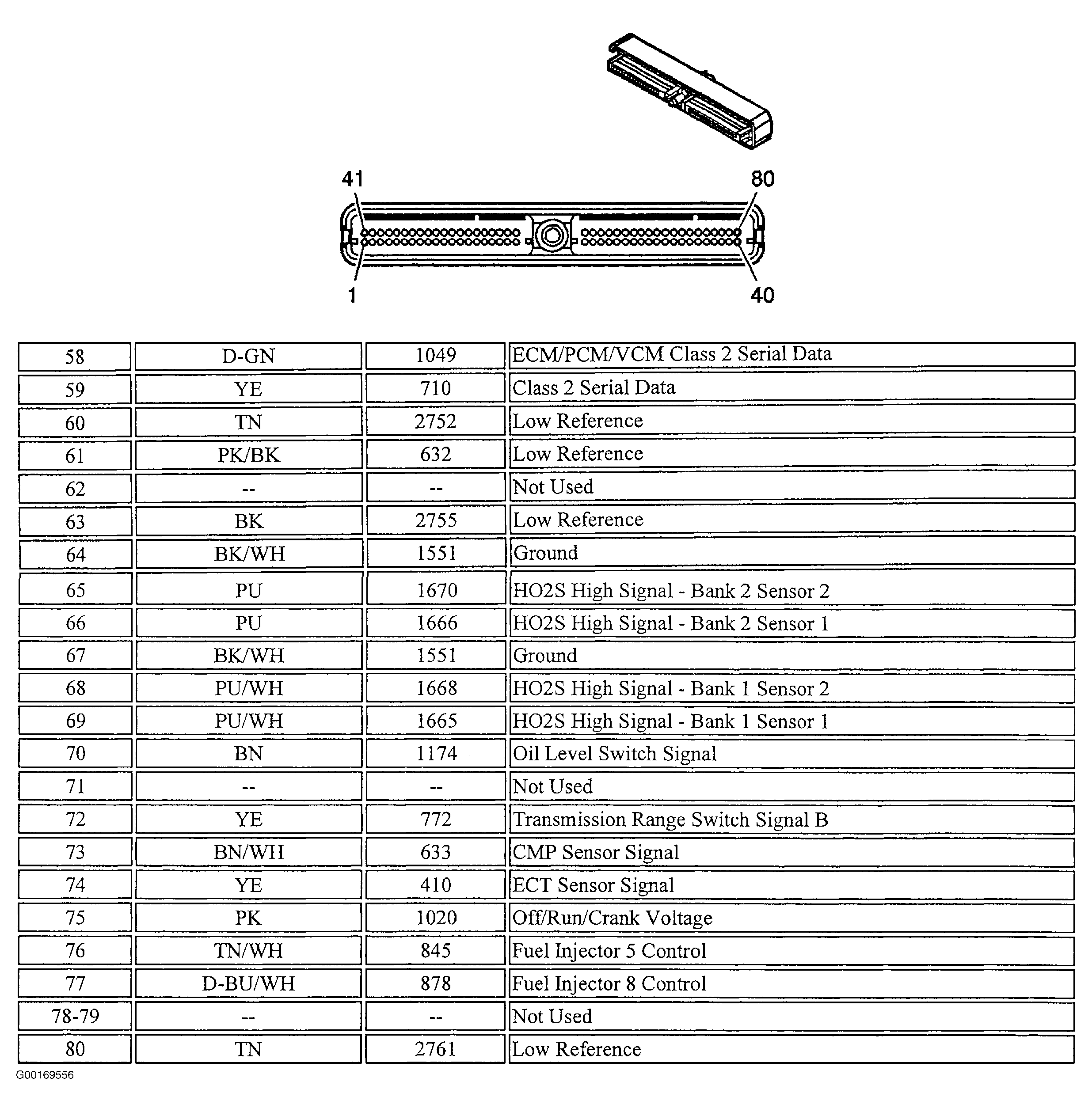

Fig 5: Identifying PCM Connector C1 Terminals - Chevy Express & Savana (3 Of 3)

G00169556

Courtesy of GENERAL MOTORS CORP.

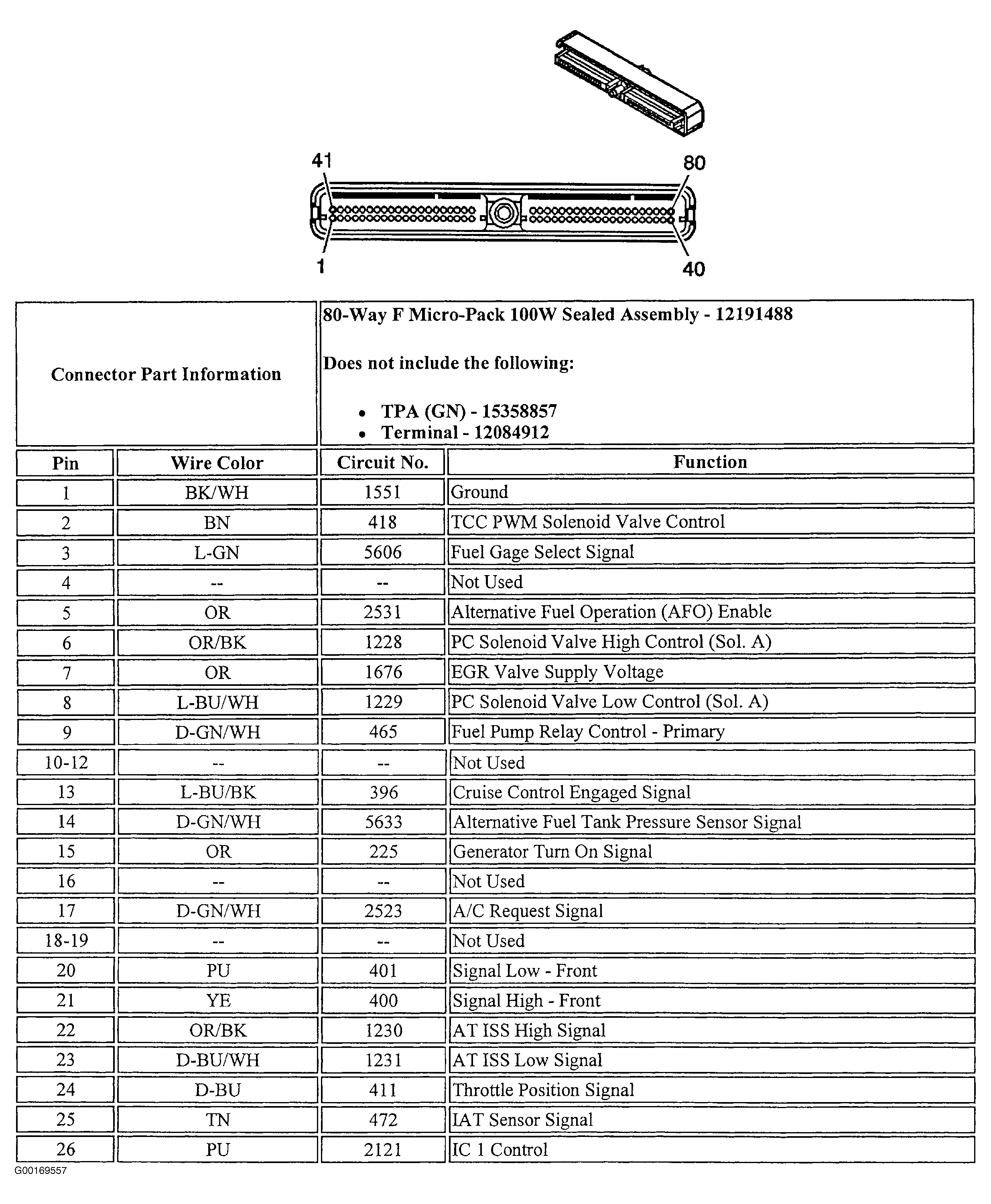

Fig 6: Identifying PCM Connector C2 Terminals - Chevy Express & Savana (1 Of 3)

G00169557

Courtesy of GENERAL MOTORS CORP.

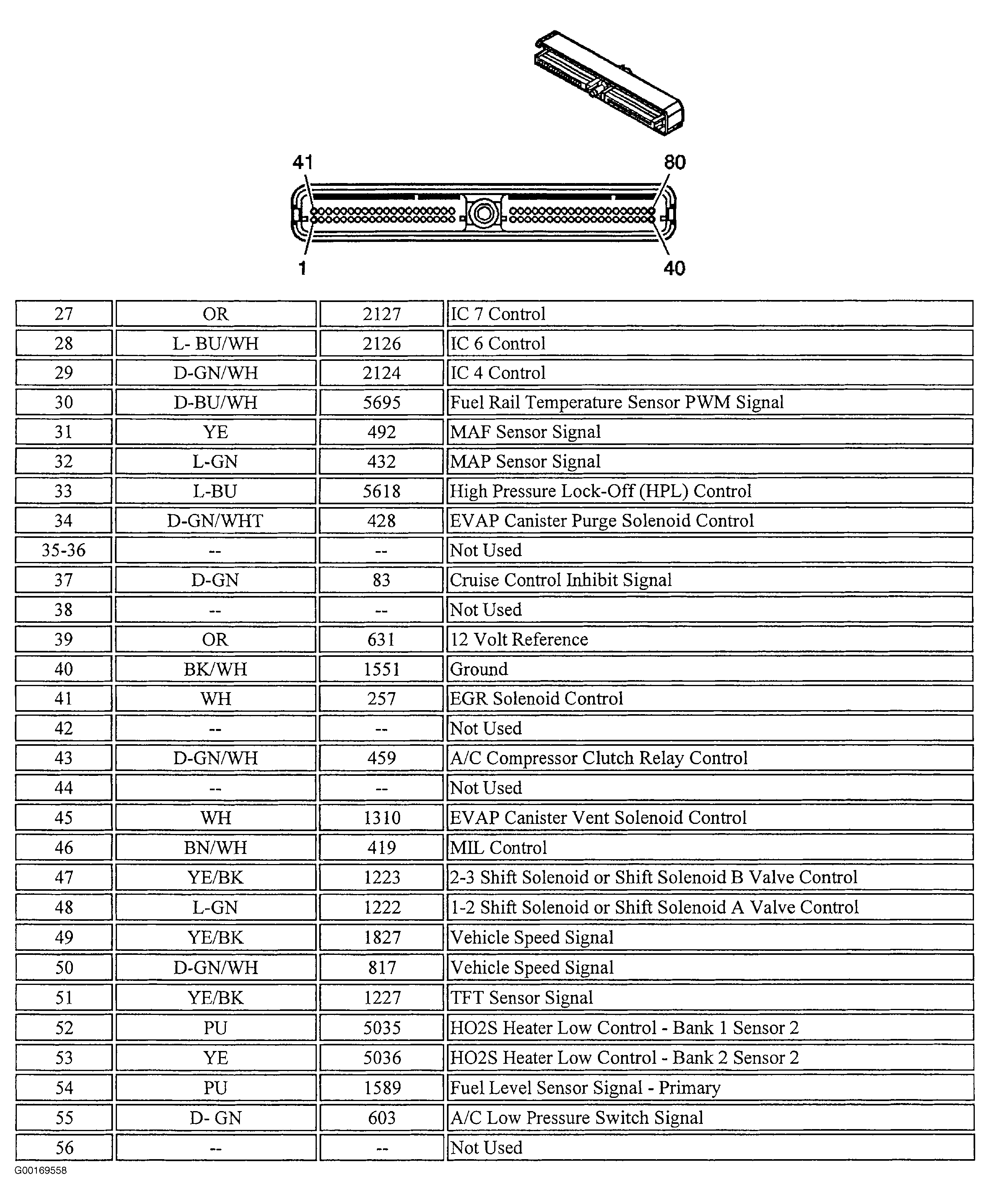

Fig 7: Identifying PCM Connector C2 Terminals - Chevy Express & Savana (2 Of 3)

G00169558

Courtesy of GENERAL MOTORS CORP.

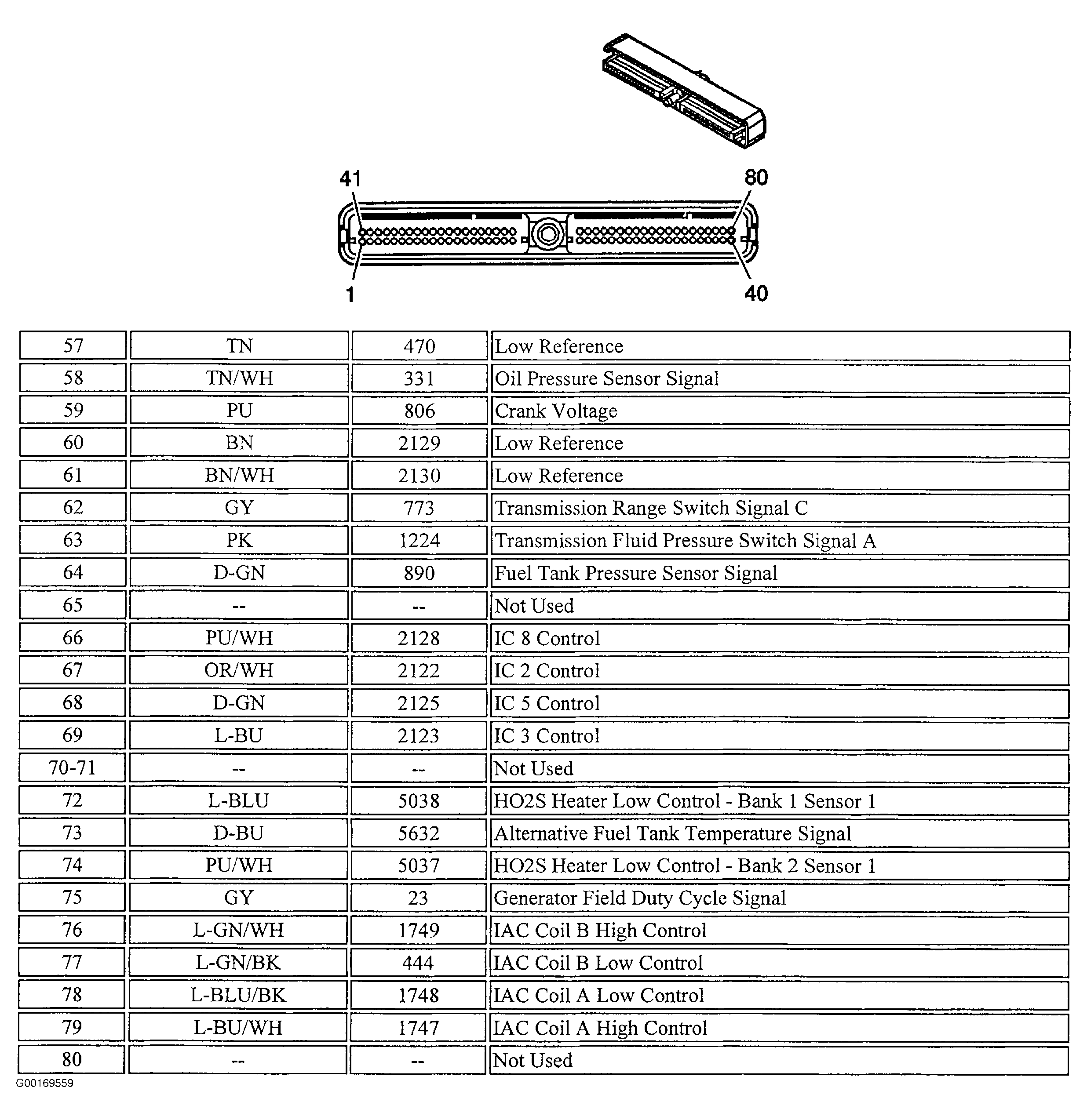

Fig 8: Identifying PCM Connector C2 Terminals - Chevy Express & Savana (3 Of 3)

G00169559

Courtesy of GENERAL MOTORS CORP.

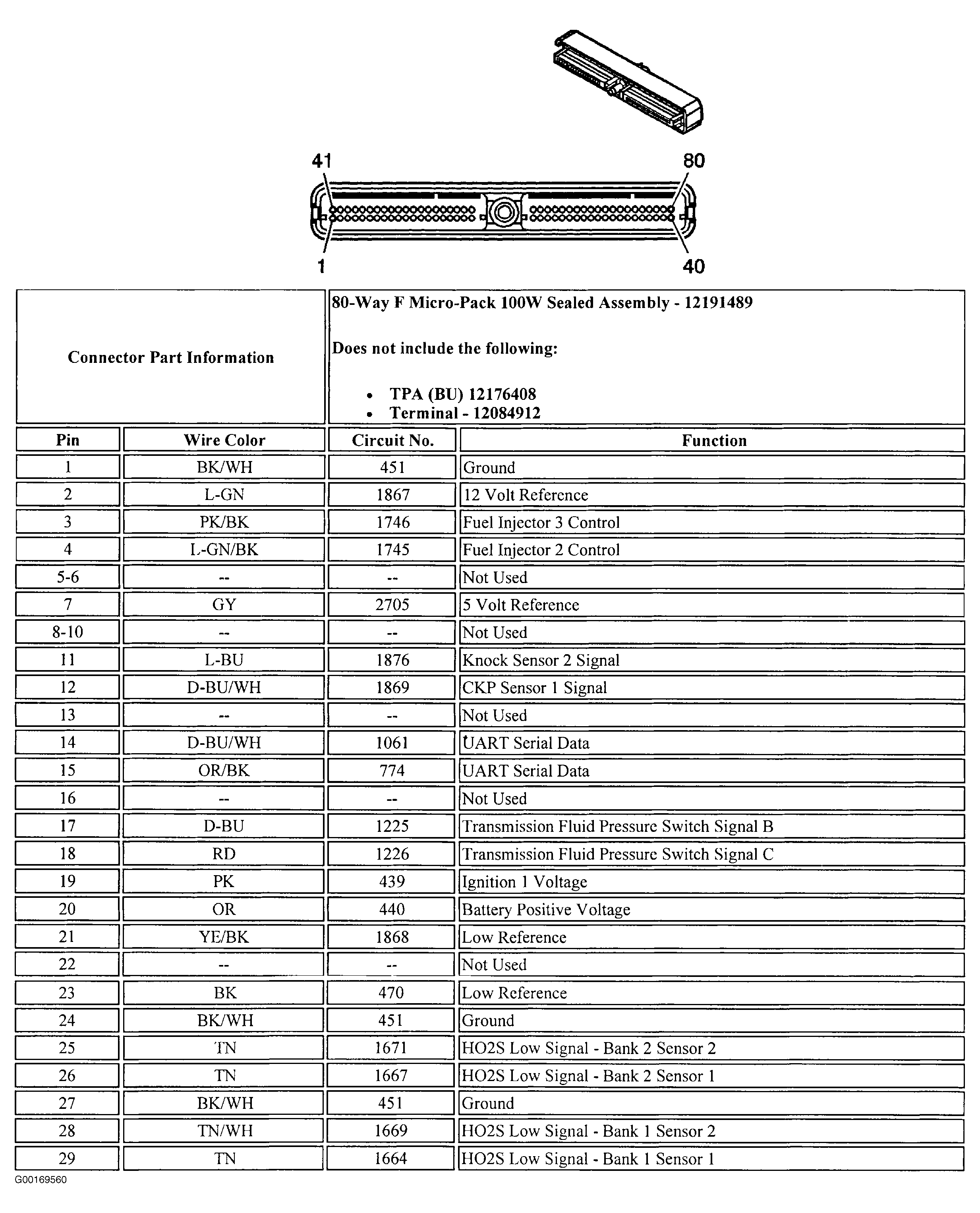

Fig 9: Identifying PCM Connector C1 Terminals - Sierra & Silverado (1 Of 3)

G00169560

Courtesy of GENERAL MOTORS CORP.

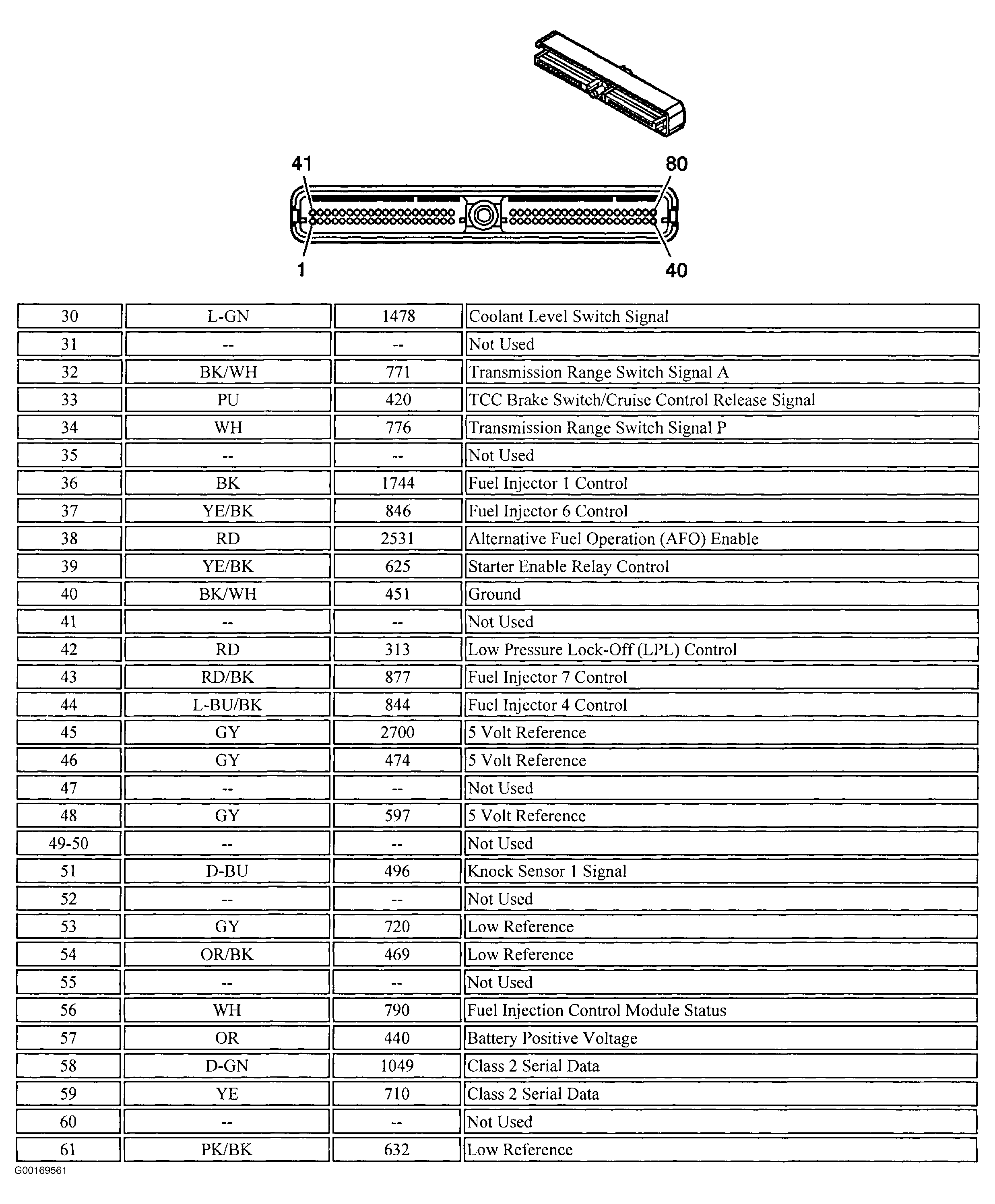

Fig 10: Identifying PCM Connector C1 Terminals - Sierra & Silverado (2 Of 3)

G00169561

Courtesy of GENERAL MOTORS CORP.

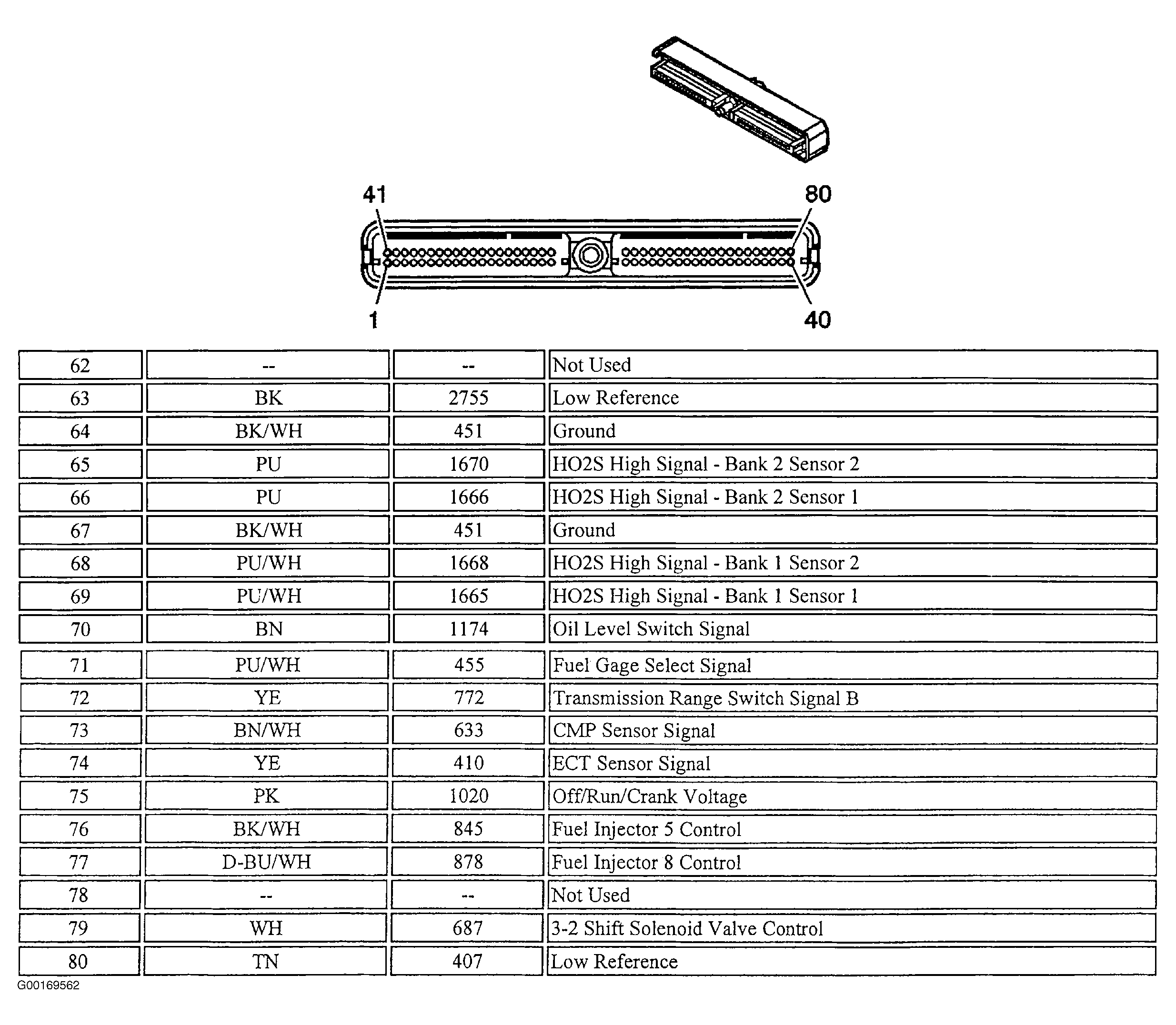

Fig 11: Identifying PCM Connector C1 Terminals - Sierra & Silverado (3 Of 3)

G00169562

Courtesy of GENERAL MOTORS CORP.

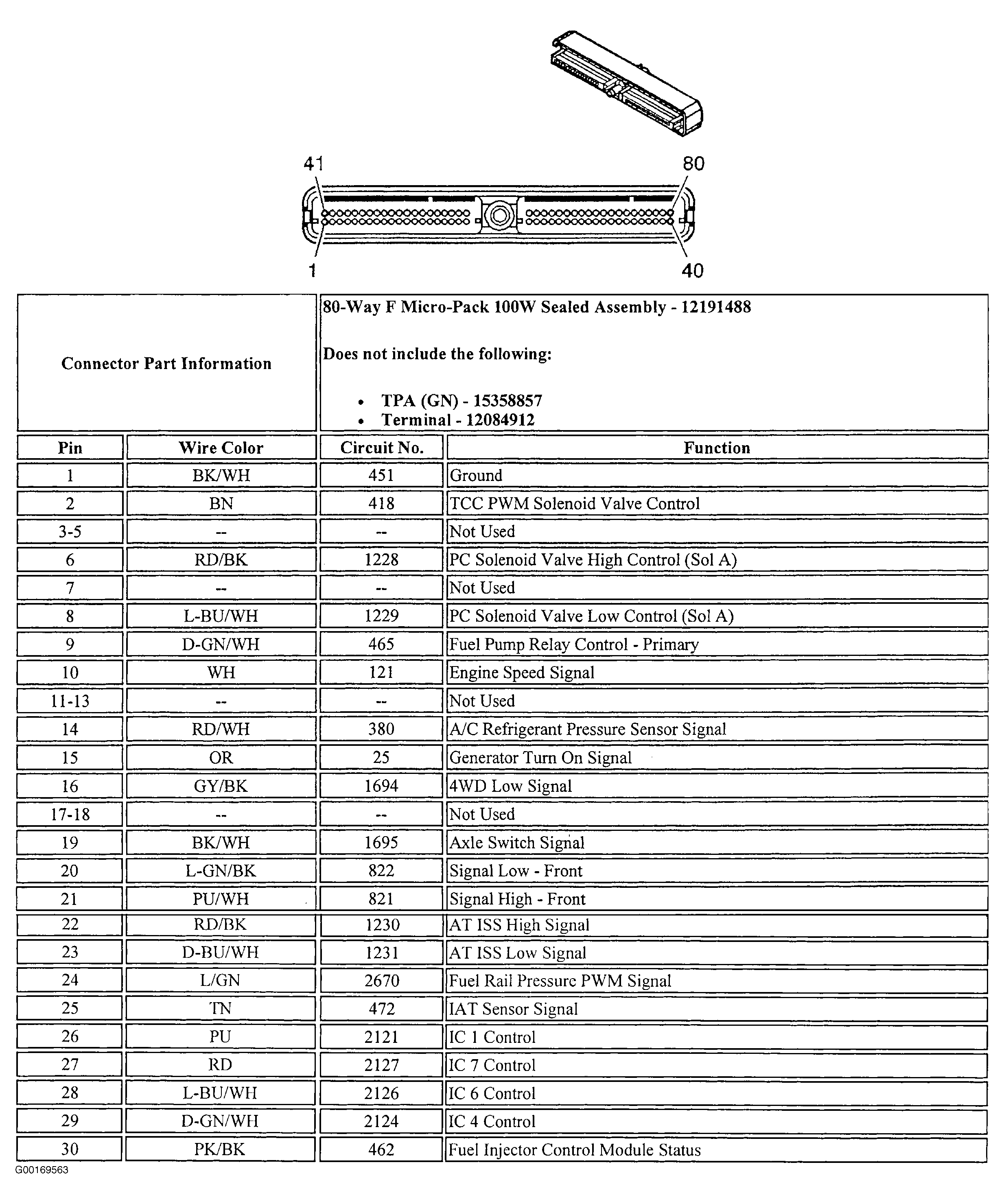

Fig 12: Identifying PCM Connector C2 Terminals - Sierra & Silverado (1 Of 3)

G00169563

Courtesy of GENERAL MOTORS CORP.

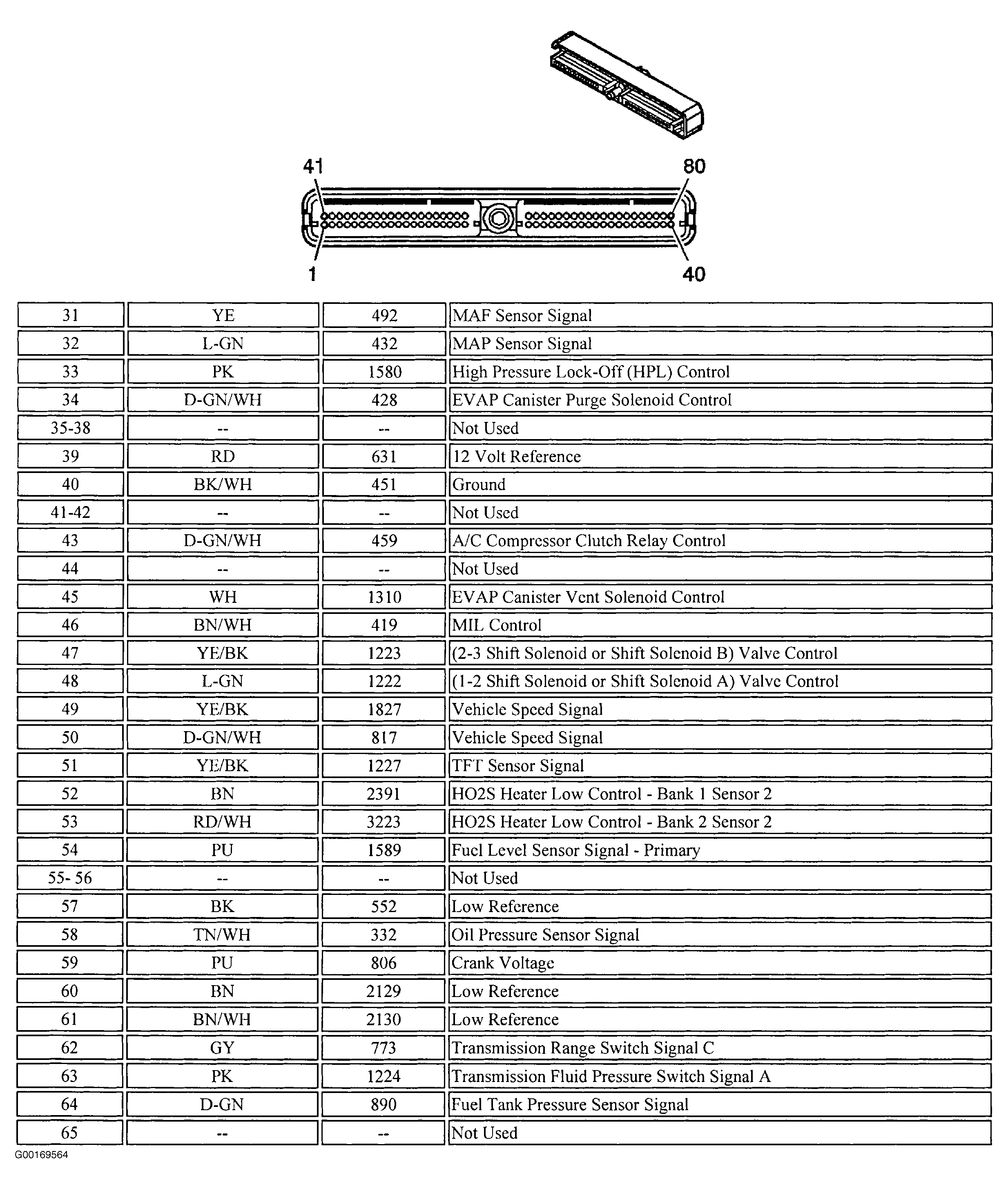

Fig 13: Identifying PCM Connector C2 Terminals - Sierra & Silverado (2 Of 3)

G00169564

Courtesy of GENERAL MOTORS CORP.

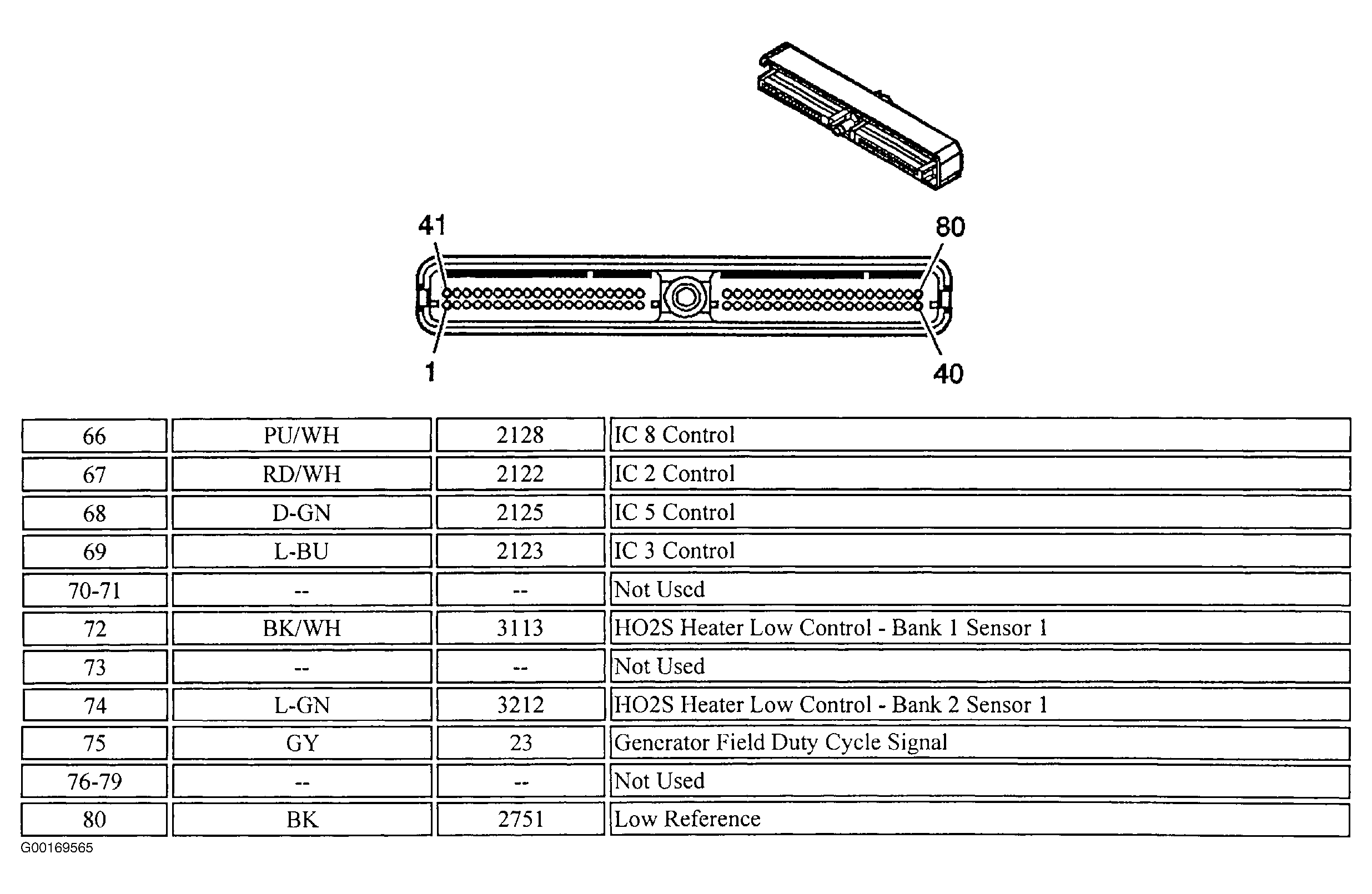

Fig 14: Identifying PCM Connector C2 Terminals - Sierra & Silverado (3 Of 3)

G00169565

Courtesy of GENERAL MOTORS CORP.
