EVAP Canister Vent Valve: Installation

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect EVAP canister vent solenoid valve and the EVAP control system for carbon particle contamination before replacing the EVAP canister vent solenoid.

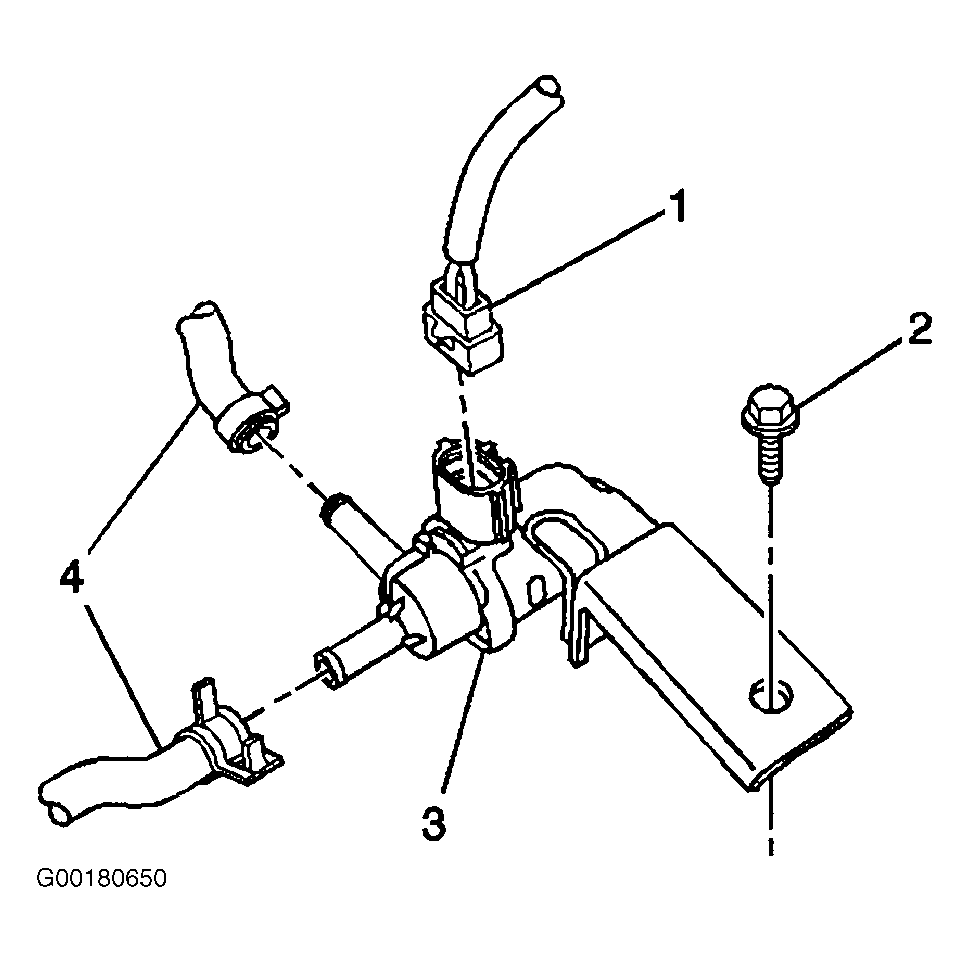

  2. Install EVAP canister vent valve (3) and bolt (2) to air cleaner housing. See Figure .
  3. Tighten EVAP canister vent valve bolt (2) to specification. See TORQUE SPECIFICATIONS  .
  4. Connect vent hose (4) to EVAP canister vent valve (3) and air cleaner housing.
  5. Connect the other vent hose (4) to EVAP canister vent valve (3).
  6. Connect vent valve harness connector (1).
