Removal & Installation (A/C)

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

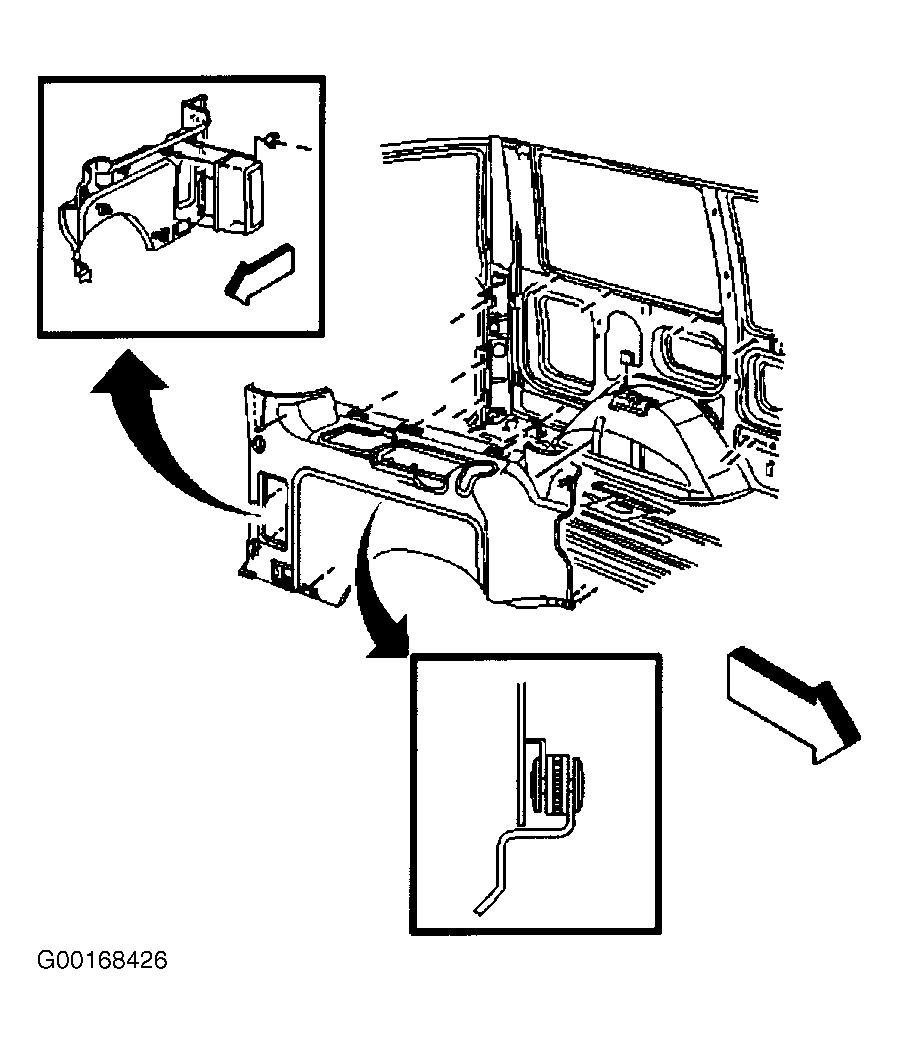

  1. Disconnect negative battery cable. Remove the left rear body side trim panel. See Figure. Remove electrical connections. Remove cooling tube from blower motor. Remove screws securing blower motor. Remove blower motor. See Fig 1.
  2. Install the blower motor assembly to the case. Install the screws that retain the blower motor to the case. Tighten screws to specification. See TORQUE SPECIFICATIONS . Connect the electrical connectors. Install the cooling tube to the motor and to the case. Install the left body side rear trim panel.
Fig 1: External View Of Auxiliary A/C Assembly
G95I60242Courtesy of GENERAL MOTORS CORP.
