Component Locations

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS

Component Location
Accumulator Mounted On Front Of Evaporator Core
Air Conditioning High Pressure Switch Mounted In Rear Of Compressor
Air Conditioning Low Pressure Switch Mounted On Accumulator
Auxiliary A/C Blower Motor Left Rear Interior, Under Trim Panel
Auxiliary A/C Thermal Expansion Valve Mounted On Auxiliary Evaporator Core
Auxiliary A/C Fan Switch Center Of Instrument Panel, Above Radio
Auxiliary A/C Housing Left Rear Interior, Under Trim Panel
Auxiliary Heater Blower Motor In Auxiliary Heater Housing, Left Center Floor
Auxiliary Heater Fan Switch Center Of Instrument Panel, Above Radio
Auxiliary Heater Housing Left Center Floor
Compressor Mounted On Top Of Engine
Condenser Mounted In Front Of Radiator
Evaporator Core In Evaporator Housing, In Engine Compartment
Front Blower Motor Under Insulator, In Engine Compartment, Right Side
Front HVAC Control Assembly Center Of Instrument Panel, Above Radio
Hot Water Bypass Valve Under Evaporator Housing
Orifice Tube In Evaporator Lower Fitting

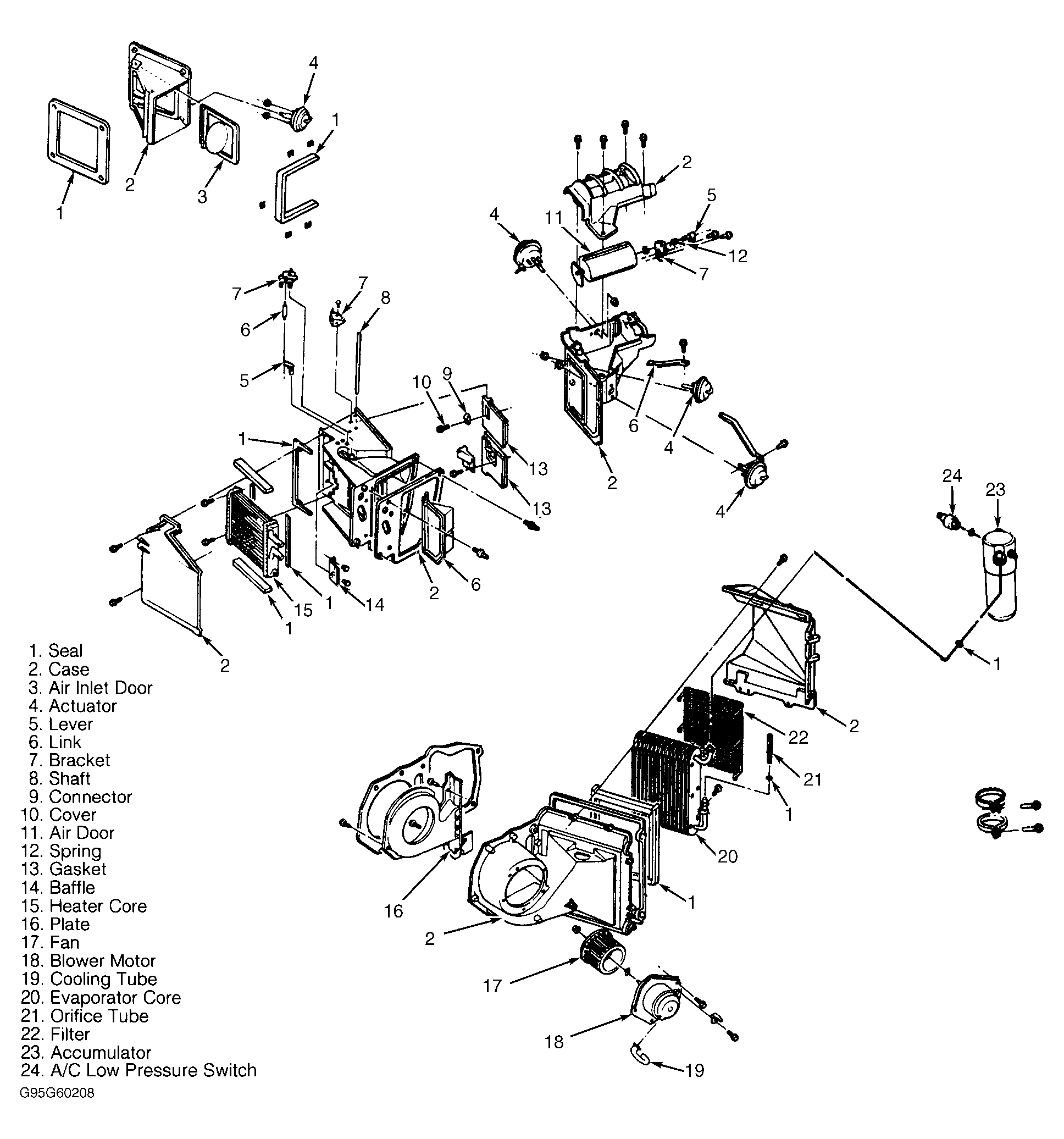

Fig 1: Exploded View Of A/C-Heater Assembly
G95G60208Courtesy of GENERAL MOTORS CORP.

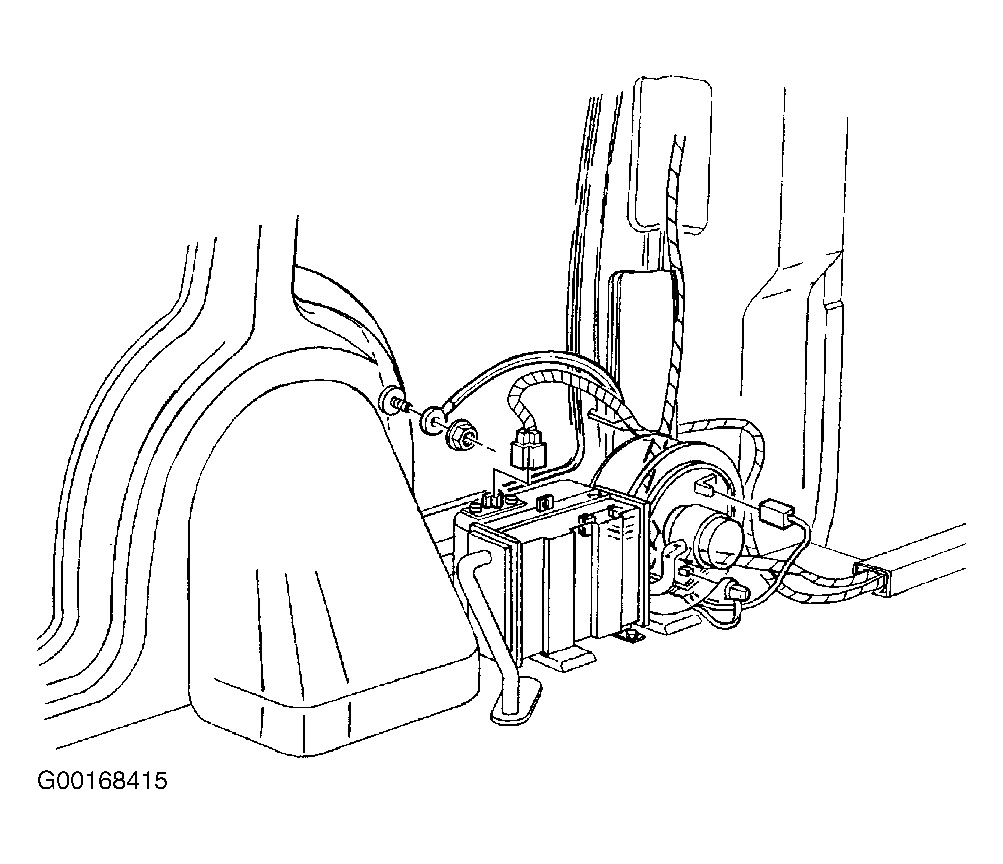

Fig 2: Exploded View Of Auxiliary Heater Assembly
G00168415Courtesy of GENERAL MOTORS CORP.
Fig 3: Identifying A/C High Pressure Switch
G00168411Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying A/C Compressor
G00168412Courtesy of GENERAL MOTORS CORP.

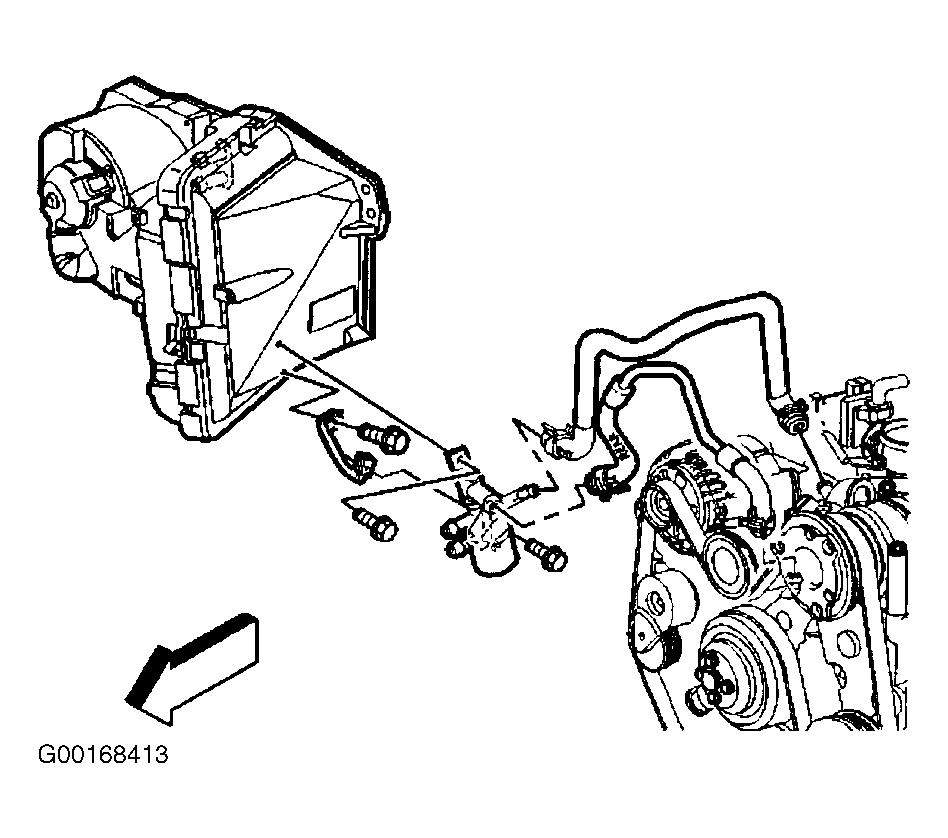

Fig 5: Identifying Coolant Bypass Valve (W/O Auxiliary Heater)
G00168413Courtesy of GENERAL MOTORS CORP.

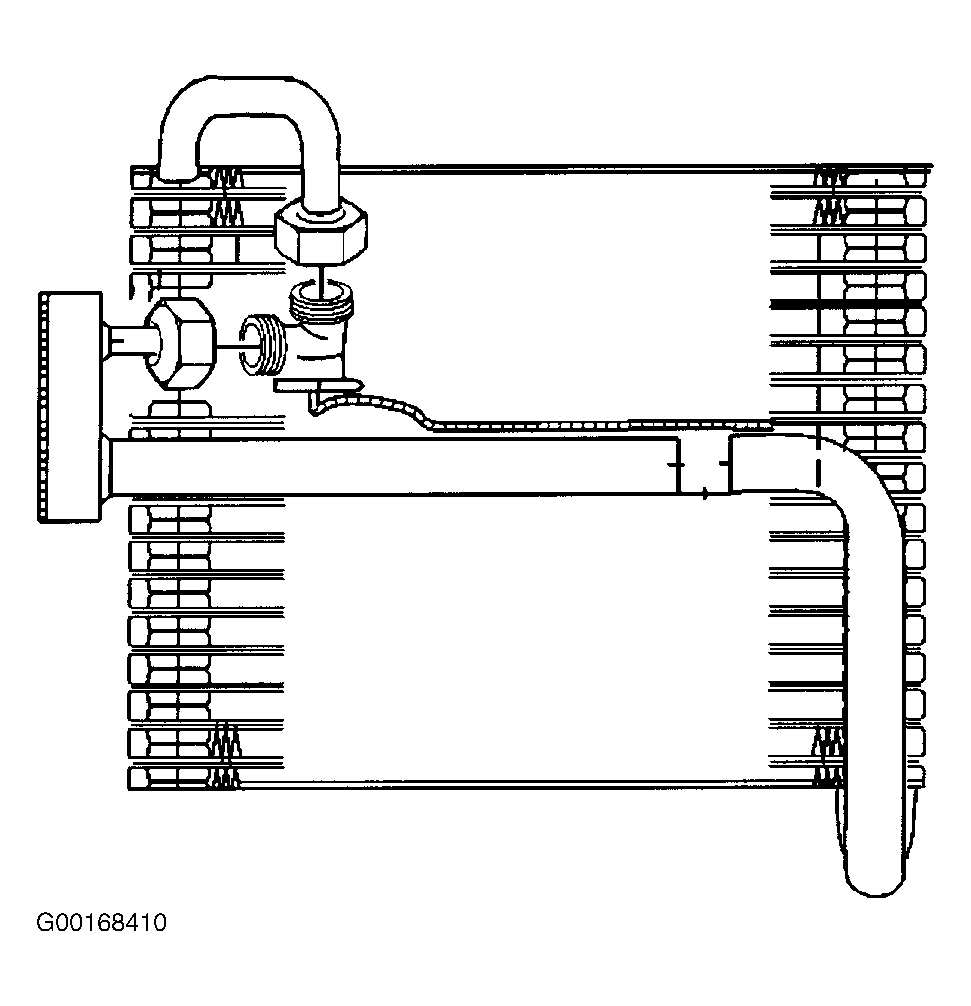

Fig 6: Identifying Auxiliary A/C Thermal Expansion Valve
G00168410Courtesy of GENERAL MOTORS CORP.

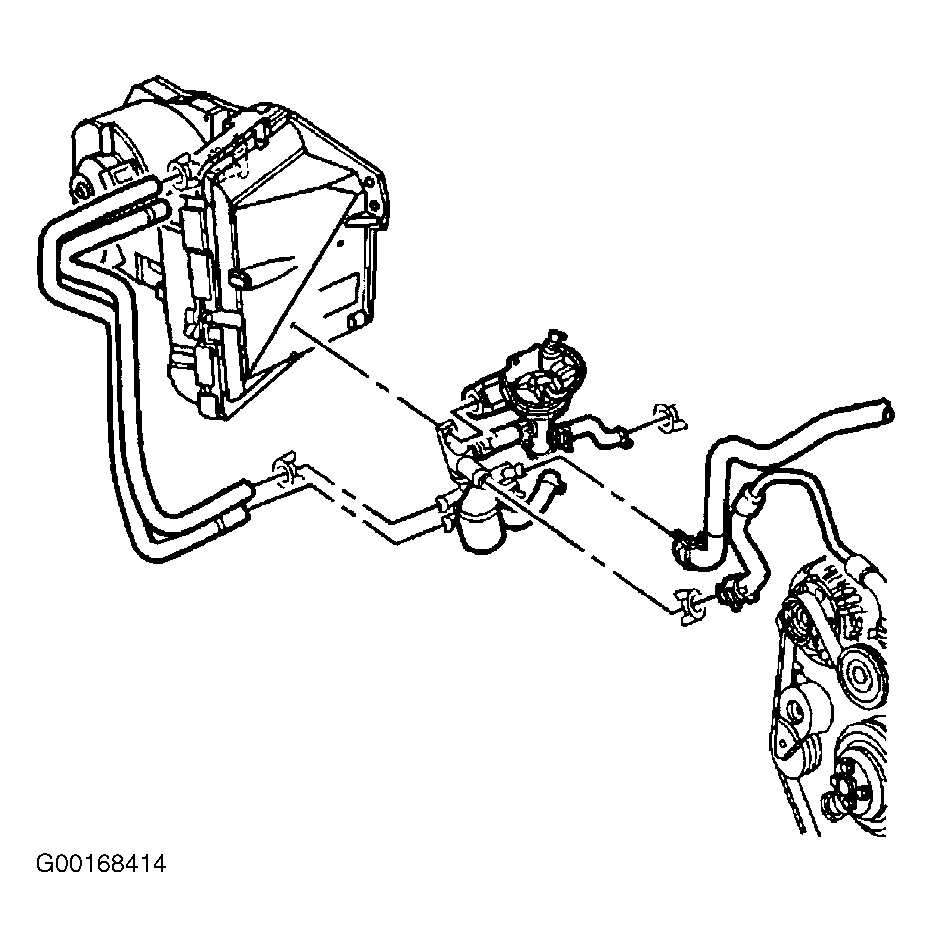

Fig 7: Identifying Coolant Bypass Valve (With Auxiliary Heater)
G00168414Courtesy of GENERAL MOTORS CORP.
