Torque Converter Clutch Pulse Width Modulation Solenoid: Installation

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the TCC PWM solenoid (334). See Figure .
  2. Install the TCC PWM solenoid retaining clip (314F).

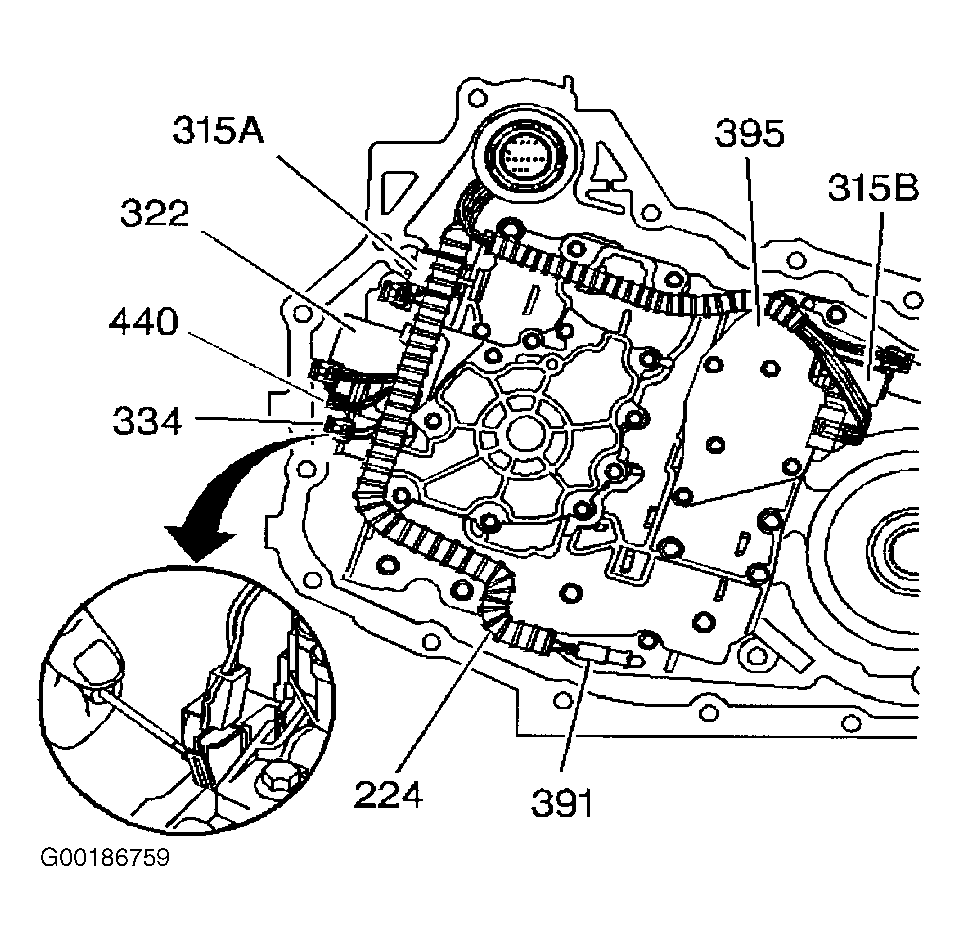

  3. Connect the TCC PWM solenoid electrical connector. See Figure .

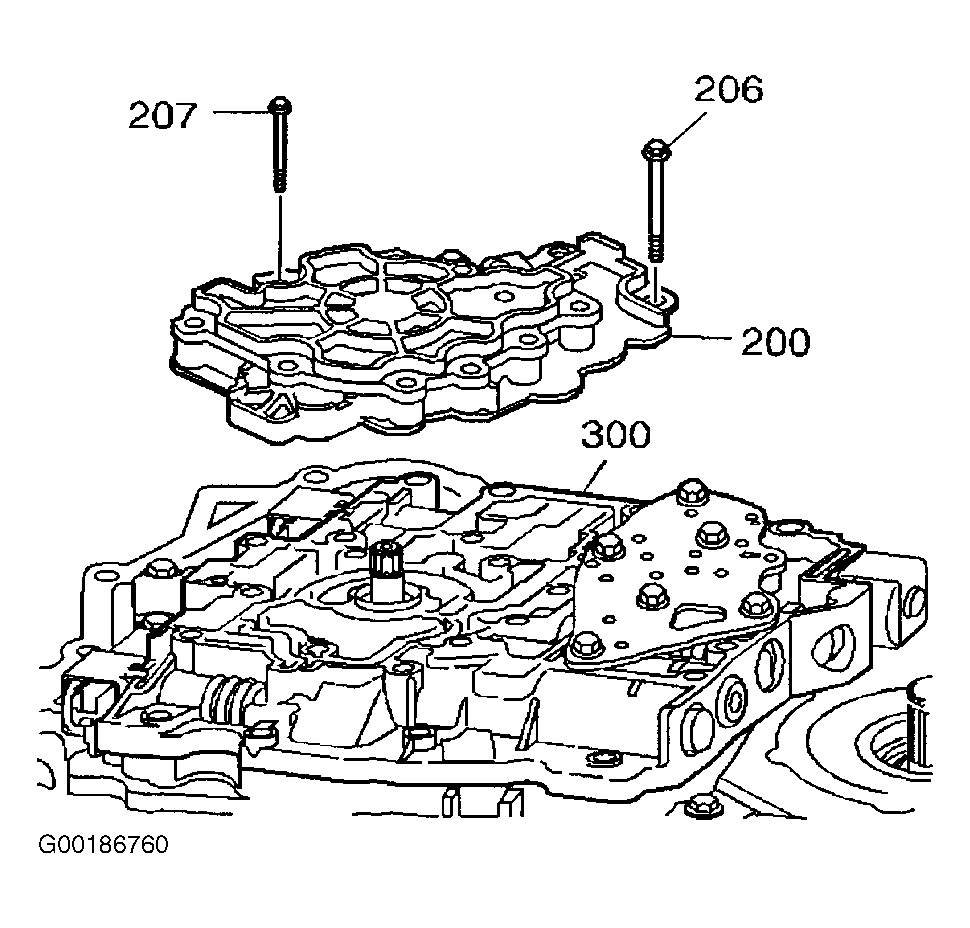

  4. Install the oil pump (200) to the valve body (300). See Figure .

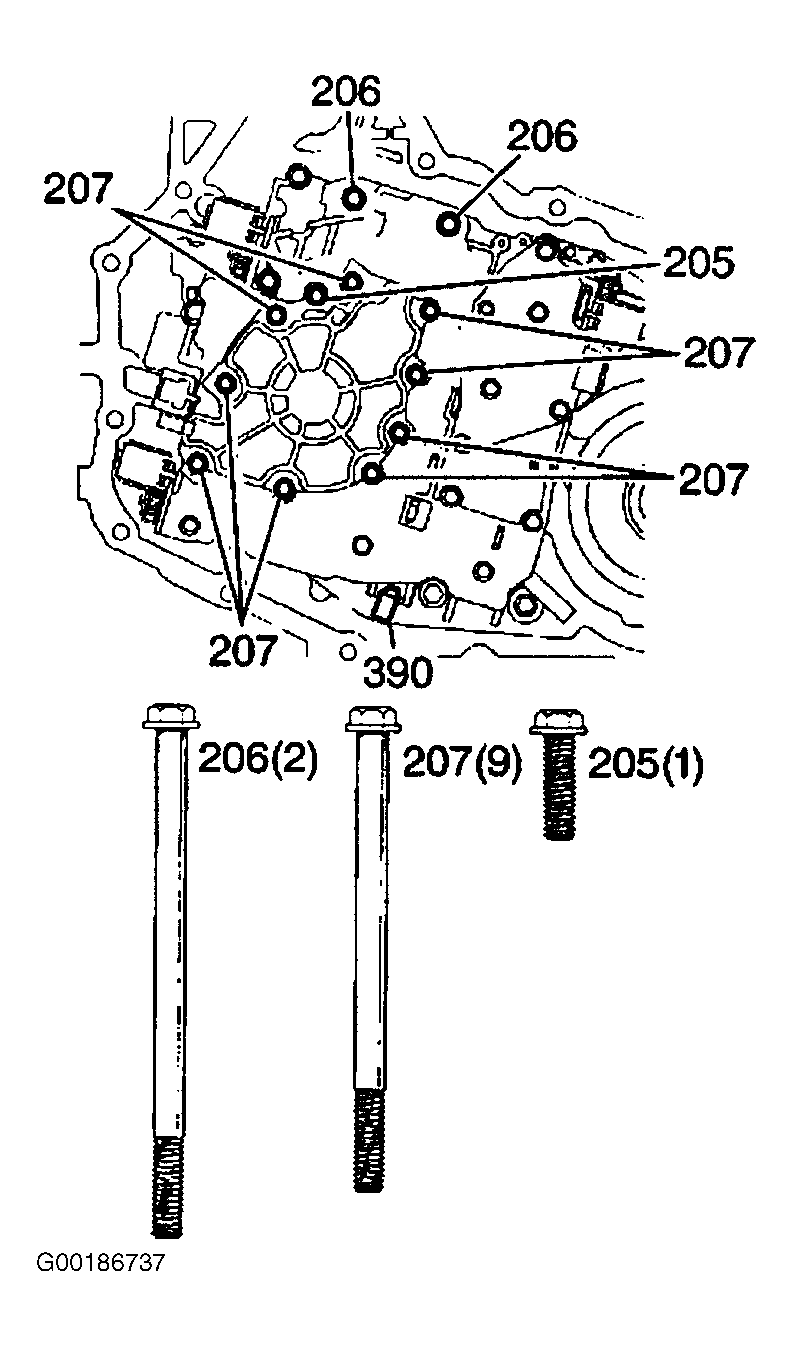

  5. Install the oil pump bolts (206,207). See Figure . Tighten the bolts to specification. See TORQUE SPECIFICATIONS  .
  6. Reposition and connect the electrical connectors to the following:
    • Automatic transaxle fluid pressure manual valve position switch assembly (395).
    • 2-3 Shift solenoid valve assembly (315B).
    • If equipped internal mode switch.
  7. Install the case side cover. See REMOVAL & INSTALLATION in SERVICING - CENTURY & REGAL article.
