Test Description

WARNING: This page is about a different car, the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, and 2001 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This DTC may set as a result of other Passlock System problems. Diagnose any BCM DTCs prior to continuing with this diagnostic.
  2. 3. A DTC B3031 may set in the body control module (BCM) during the Password Learn Procedure.

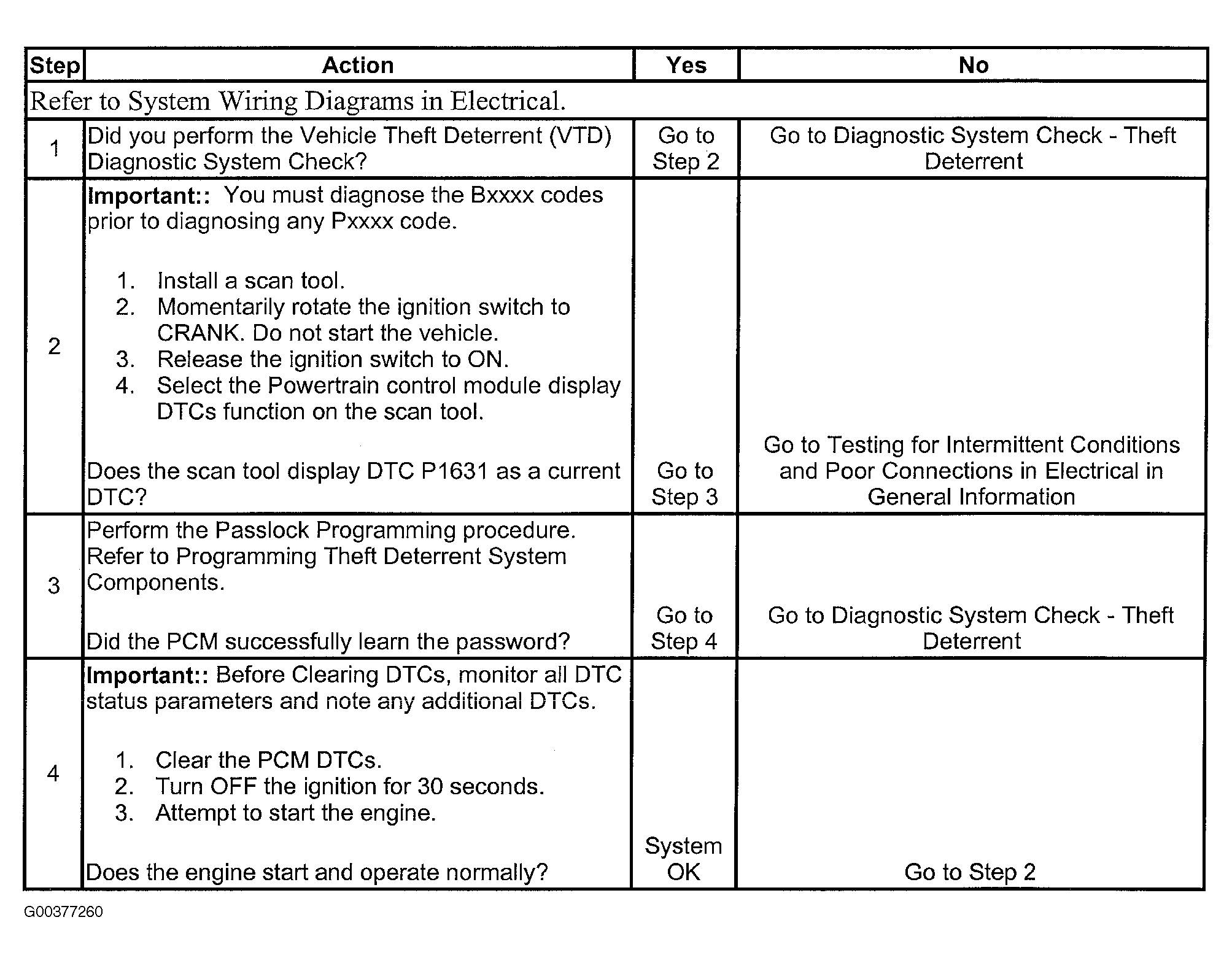

Fig 1: DTC P1631
G00377260Courtesy of GENERAL MOTORS CORP.
