Test Description

WARNING: This page is about a different car, the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, and 2001 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 3. Tests for the proper operation of the 12-volt reference Security Sensor Power circuit, sensor ground circuit, and Passlock™ sensor signal (data) circuit. Troubleshoot the appropriate DTC prior to diagnosing DTC B3031.

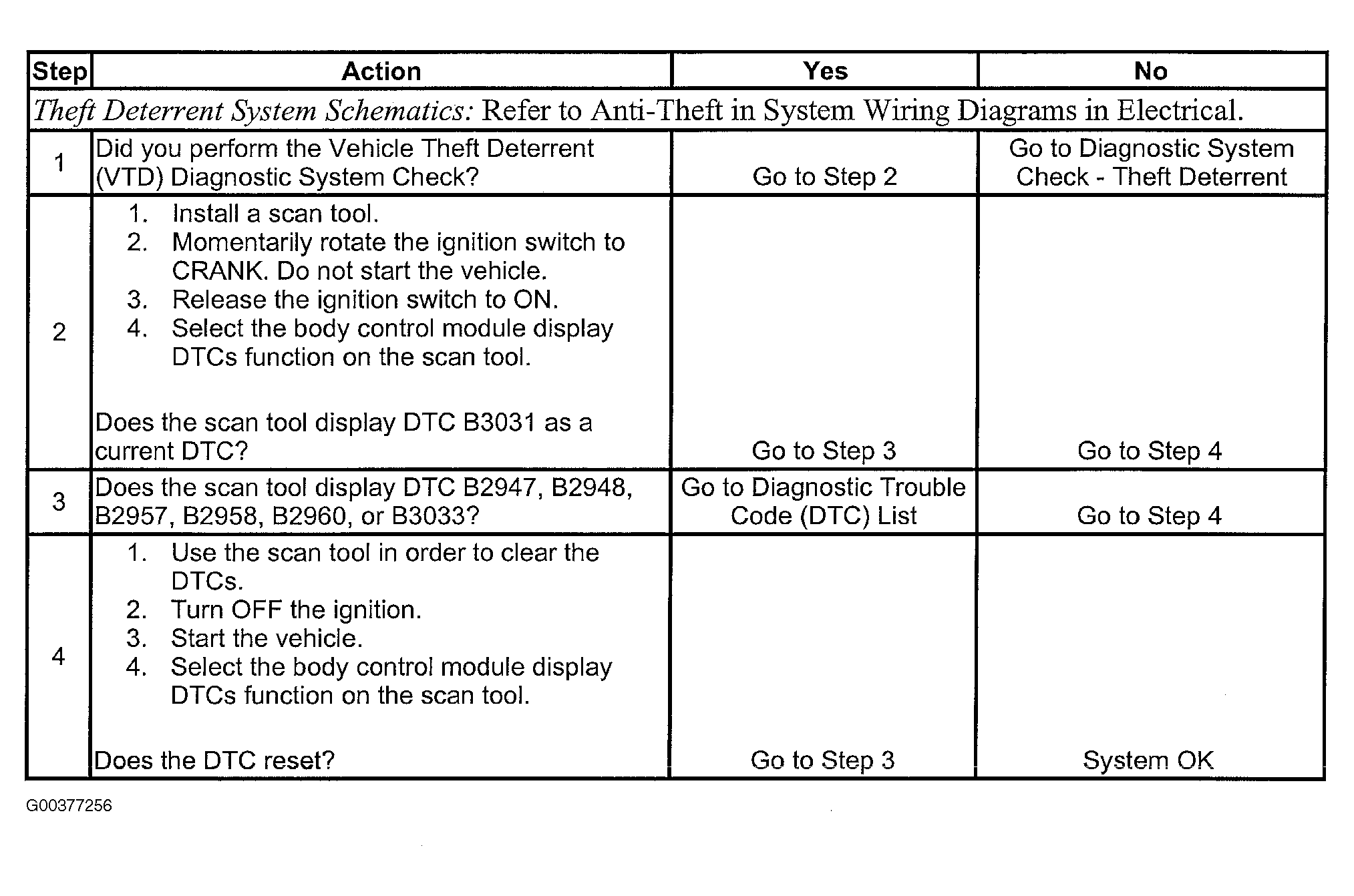

Fig 1: DTC B3031
G00377256Courtesy of GENERAL MOTORS CORP.
