Test Description

WARNING: This page is about a different car, the 2002 GMC Safari, 2002 Chevrolet Astro, 2001 GMC Safari, and 2001 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. Tests for proper operation of the circuit in the high voltage range.
  2. 4. Tests for a short to ground in the Passlock™ sensor signal circuit.

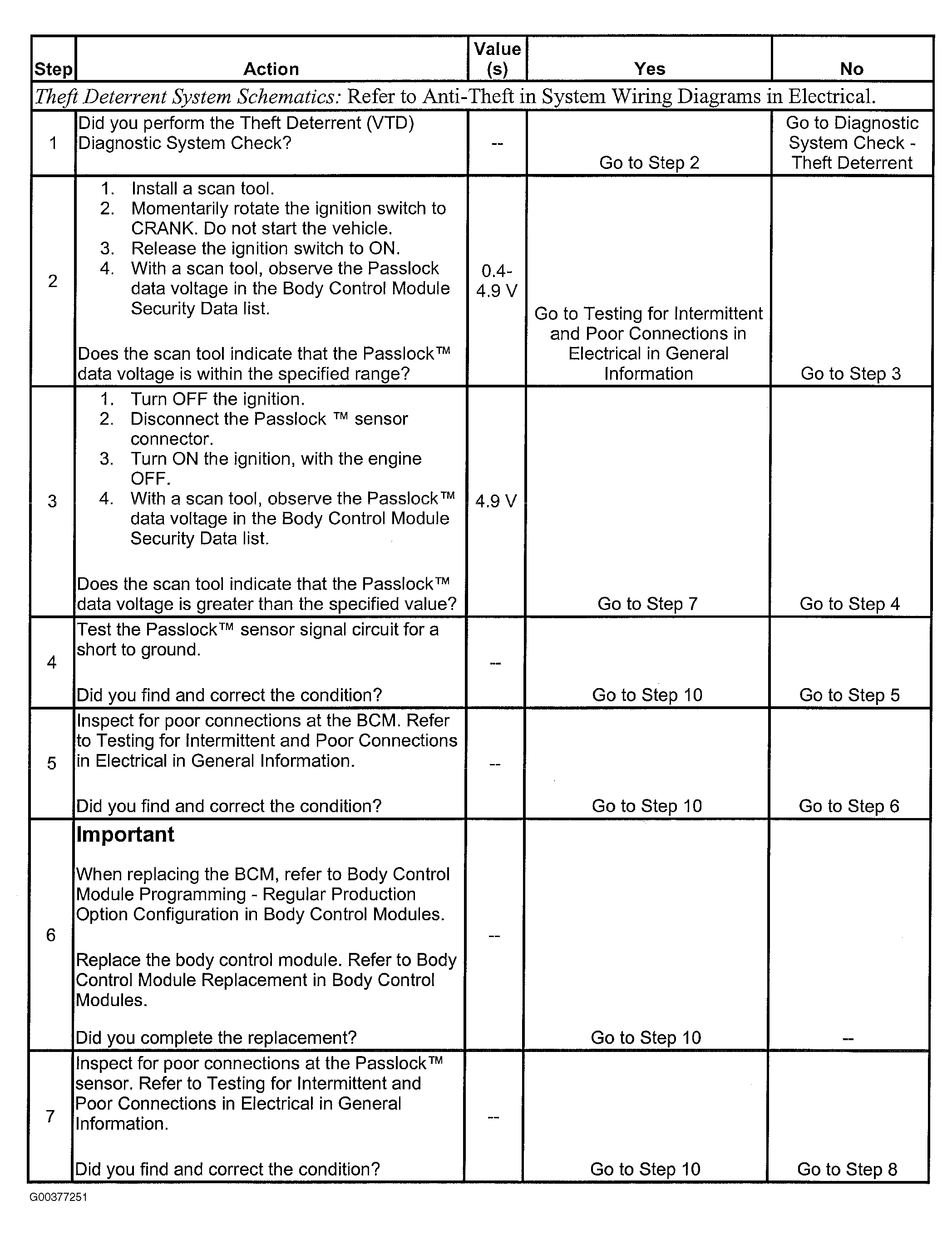

Fig 1: DTC B2957 (1 Of 2)
G00377251Courtesy of GENERAL MOTORS CORP.

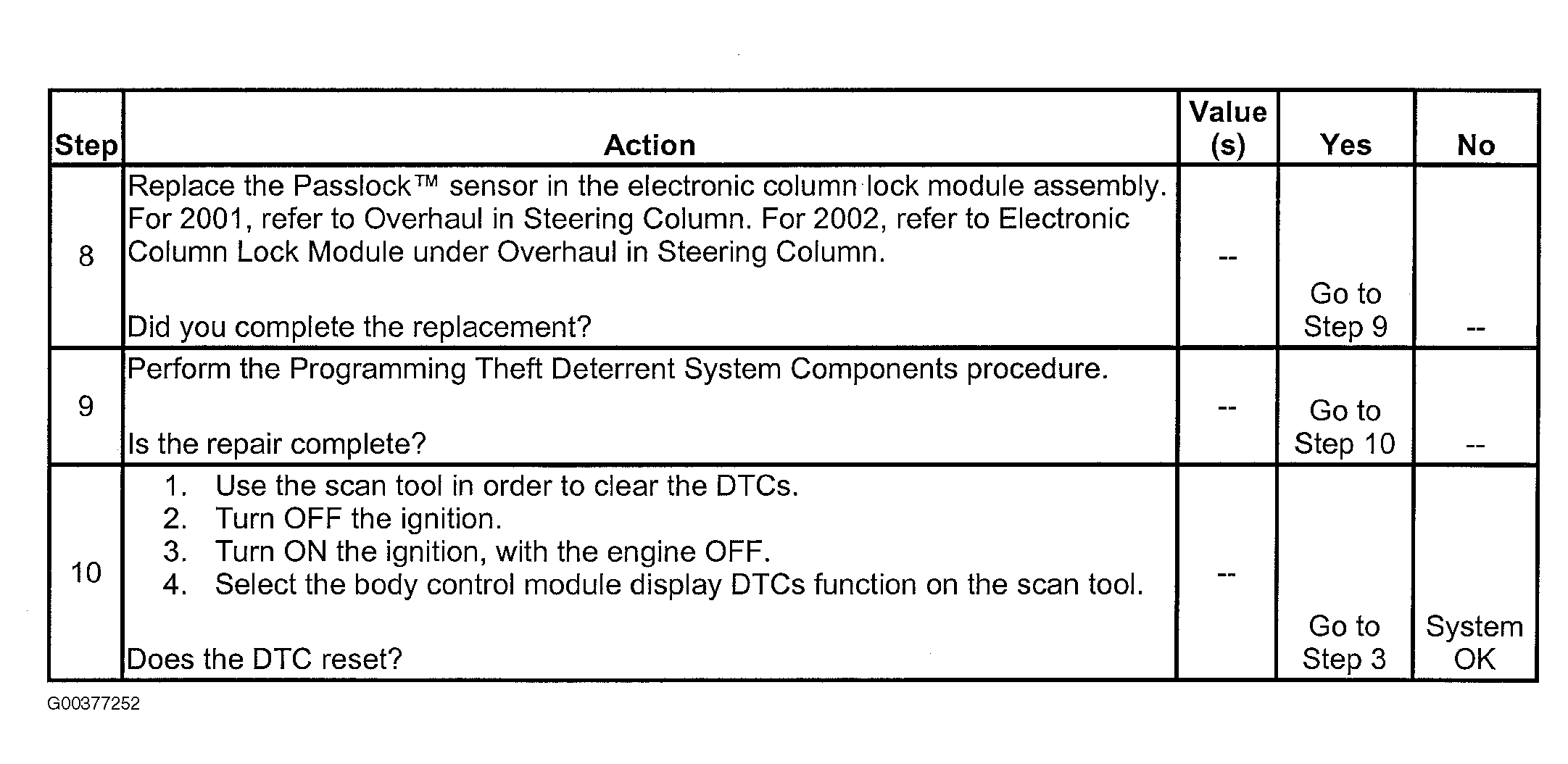

Fig 2: DTC B2957 (2 Of 2)
G00377252Courtesy of GENERAL MOTORS CORP.
