Radio X4 (U3U)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

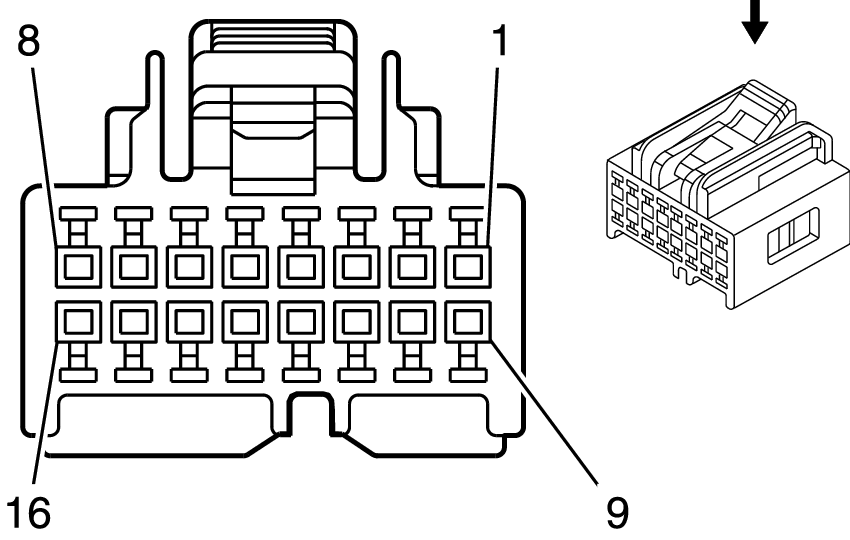

Fig 1: Radio X4 (U3U) Connector End View

Courtesy of GENERAL MOTORS CORP.

Radio X4 (U3U)

Pin	Wire	Circuit	Function
1-4	-	-	Not Used
5	0.5 D-GN/WH	817	Vehicle Speed Signal
6-16	-	-	Not Used

Connector Part Information

OEM: 15486794
Service: See Catalog
Description: 16-Way F Micro-Pack HVT Series (BN)

Terminal Part Information

Terminal/Tray: 15445905/23
Core/Insulation Crimp: J/J
Release Tool/Test Probe: 12180559/J-35616-16 (L-GN)
