Ignition Switch Lamp (LCS/LY7/LZ4)
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

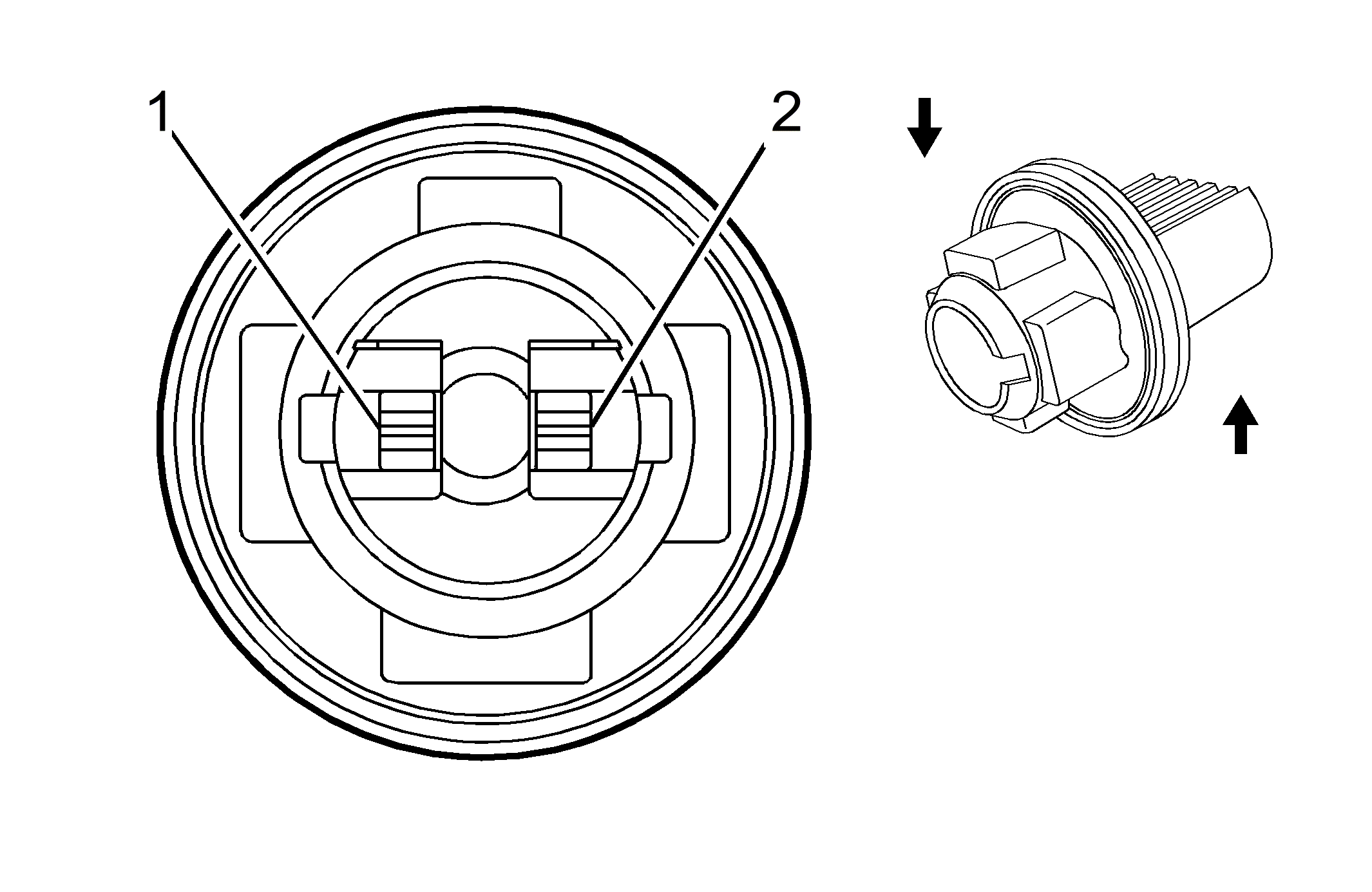

Courtesy of GENERAL MOTORS CORP. Ignition Switch Lamp (LY7/LZ4)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 TN |
690 |
Accessory Voltage |
| 2 |
0.35 GY |
350 |
Ground |
Connector Part Information
- OEM: 1356111
- Service: See Catalog
- Description: 2-Way F
|
Terminal Part Information
- Terminal/Tray: N/A
- Core/Insulation Crimp: N/A
- Release Tool/Test Probe: N/A
|
