Generator Battery Vent Fan (HP7)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

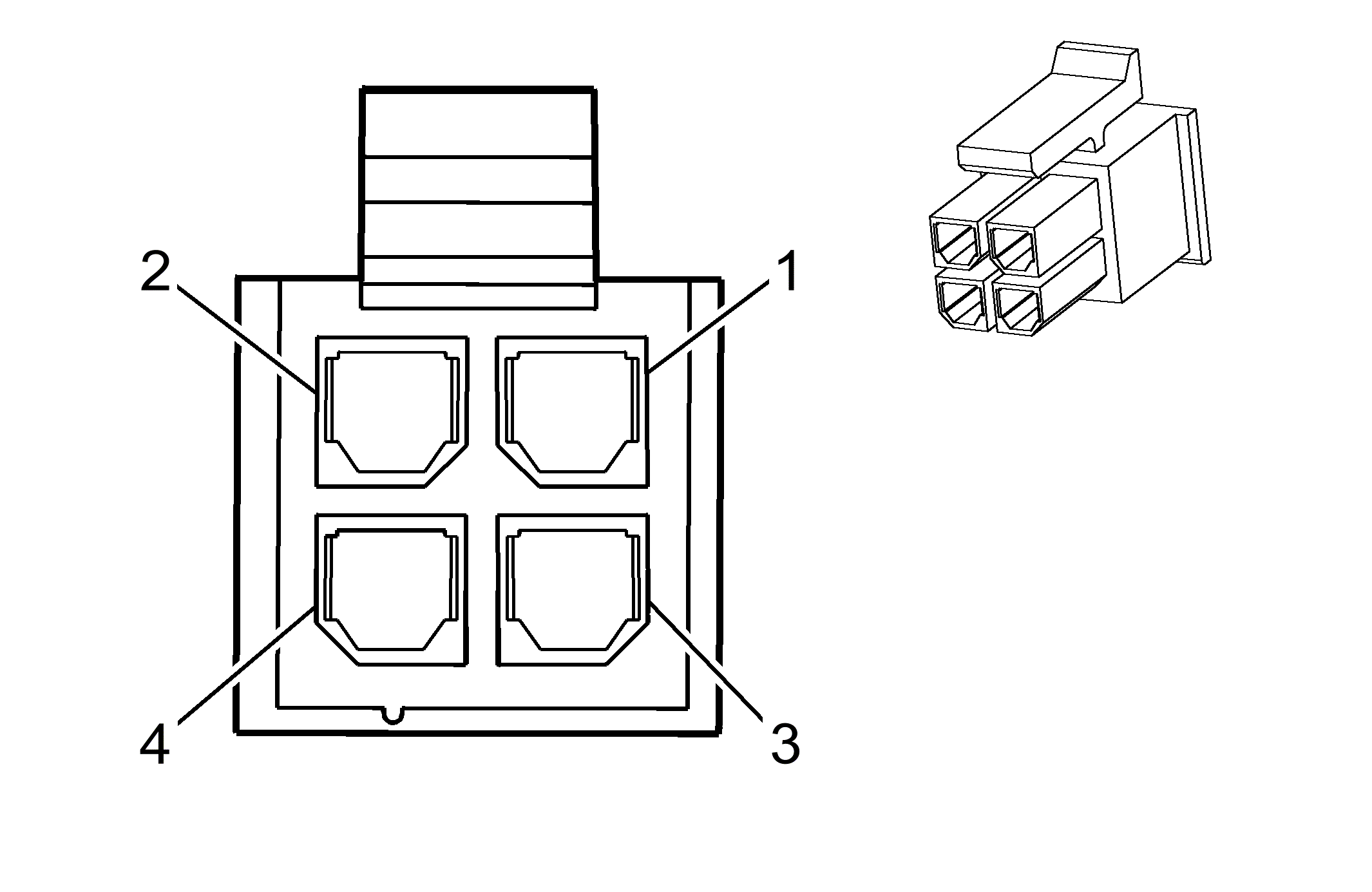

Fig 1: Generator Battery Vent Fan (HP7) Connector End view

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.5 RD	-	Power
2	0.5 BK	-	Fan Tachometer
3	0.5 TN	-	Fan Control
4	0.5 OG	-	Ground

Connector Part Information

OEM: 43025-0400
Service: See Catalog
Description: 4-Way F Micro-Fit 3.0 Series (WH)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
