Luggage Compartment/Rear of Vehicle Component Views
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

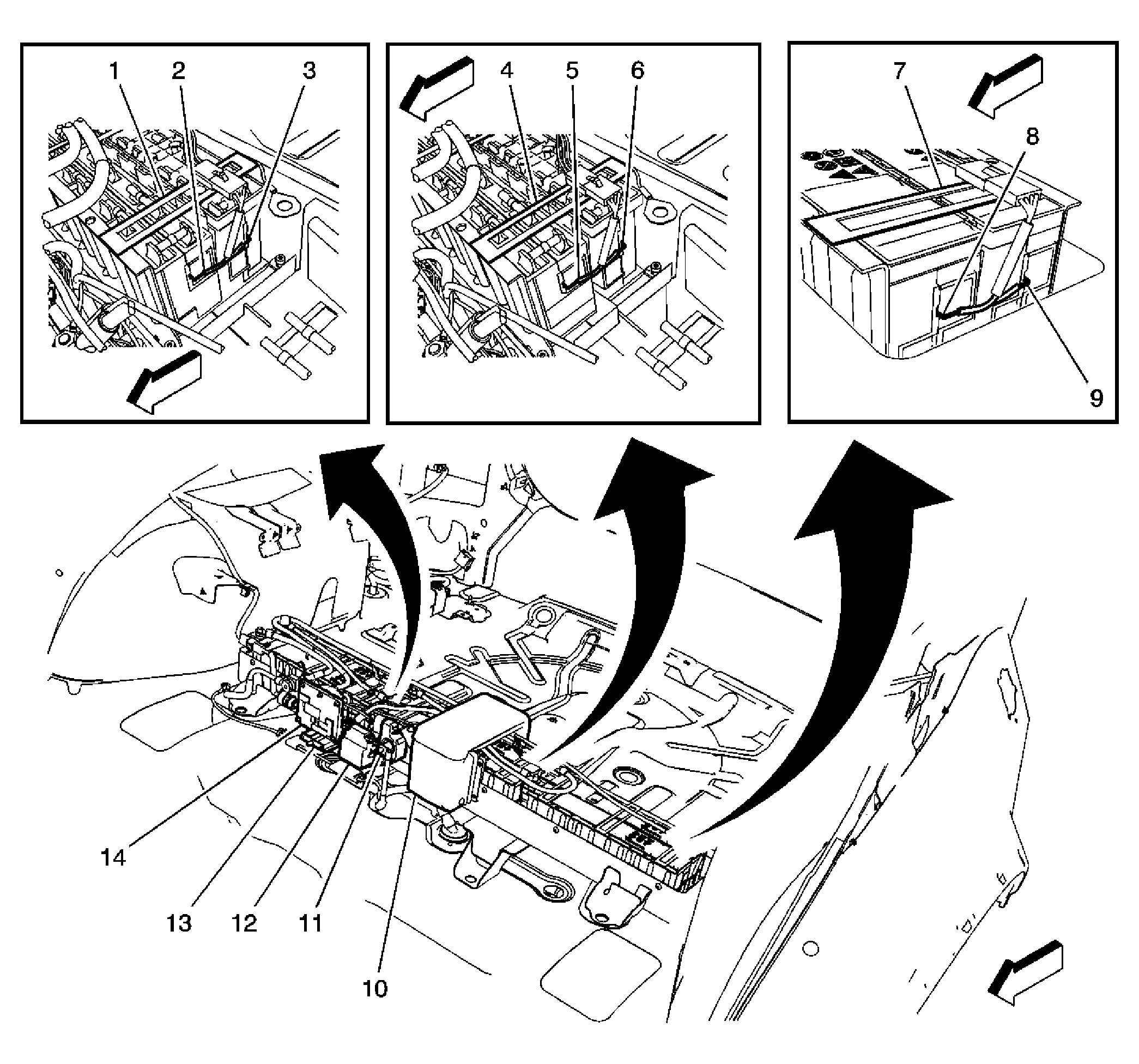

| Callout | Component Name |
|---|---|
| 1 | Generator Battery 1 |
| 2 | Generator Battery Temperature Sensor 1 |
| 3 | Generator Battery Temperature Sensor 1 |
| 4 | Generator Battery 2 |
| 5 | Generator Battery Temperature Sensor 2 |
| 6 | Generator Battery Temperature Sensor 2 |
| 7 | Generator Battery 3 |
| 8 | Generator Battery Temperature Sensor 3 |
| 9 | Generator Battery Temperature Sensor 3 |
| 10 | Generator Battery Vent Fan |
| 11 | Battery Current Sensor |
| 12 | Main Contactor Relay |
| 13 | Battery Disconnect Switch |
| 14 | Generator Battery Disconnect Control Module |

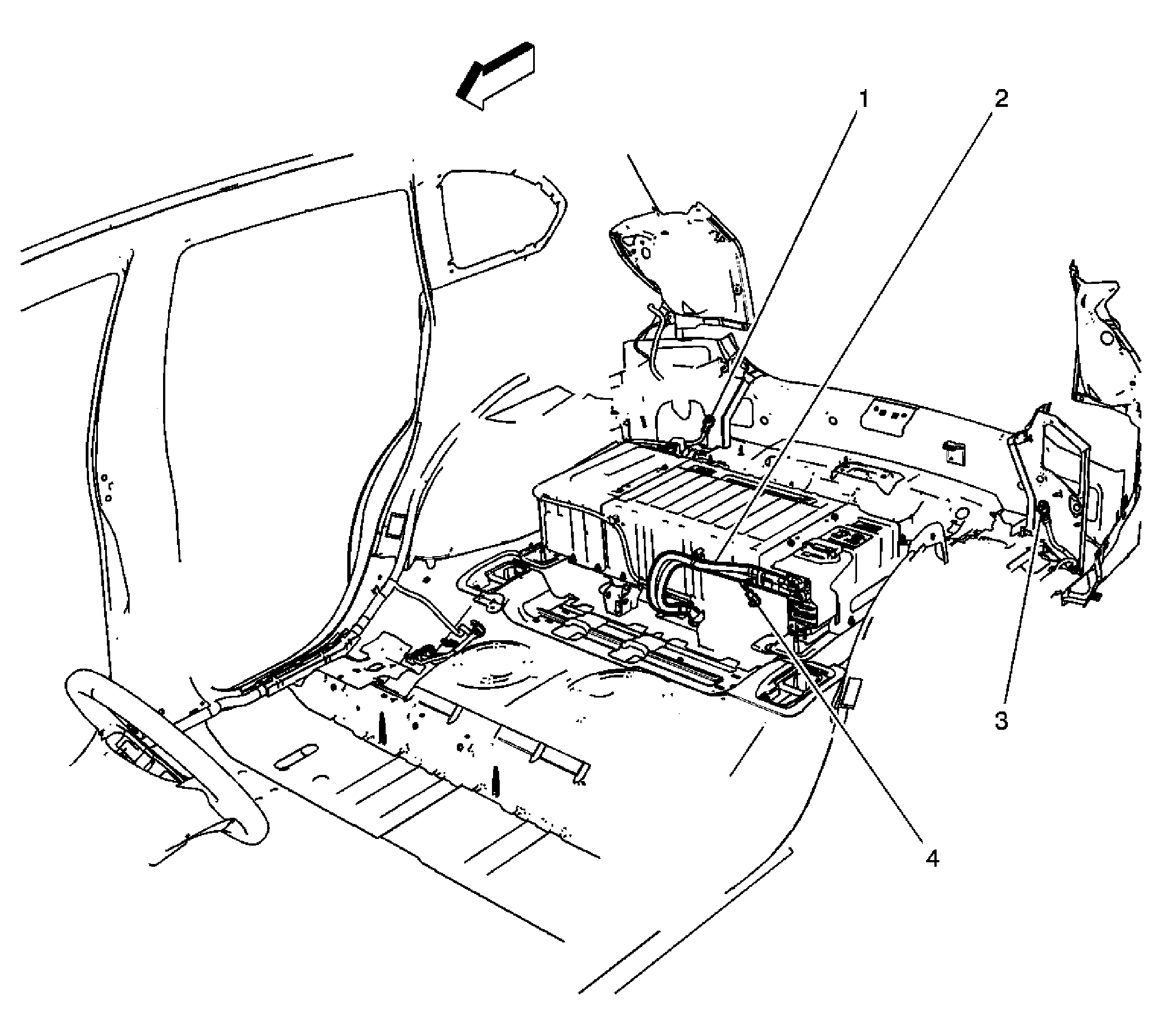

| Callout | Component Name |
|---|---|
| 1 | G402 |
| 2 | High Voltage Cables |
| 3 | G401 |
| 4 | G405 |

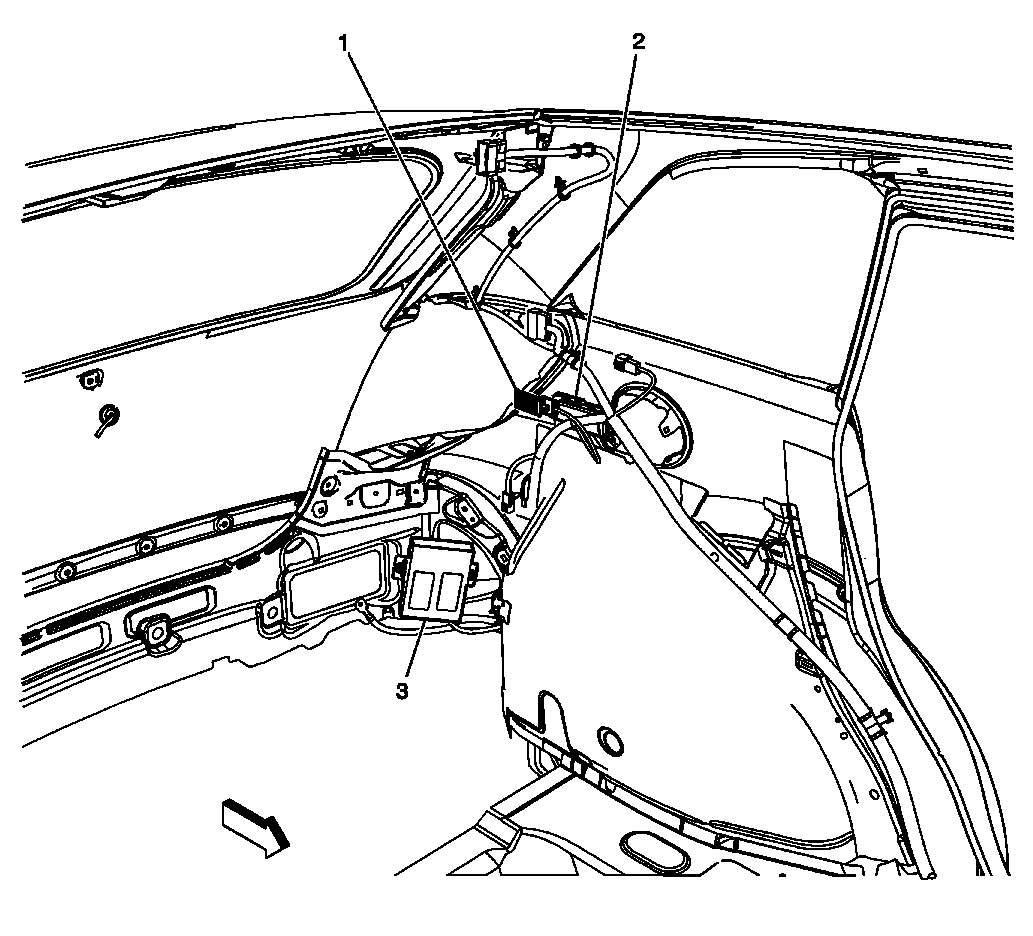

| Callout | Component Name |
|---|---|
| 1 | Rear Compartment Courtesy Lamp - Left |
| 2 | Fuel Door Release Actuator |
| 3 | Digital Radio Receiver ( U2K) |

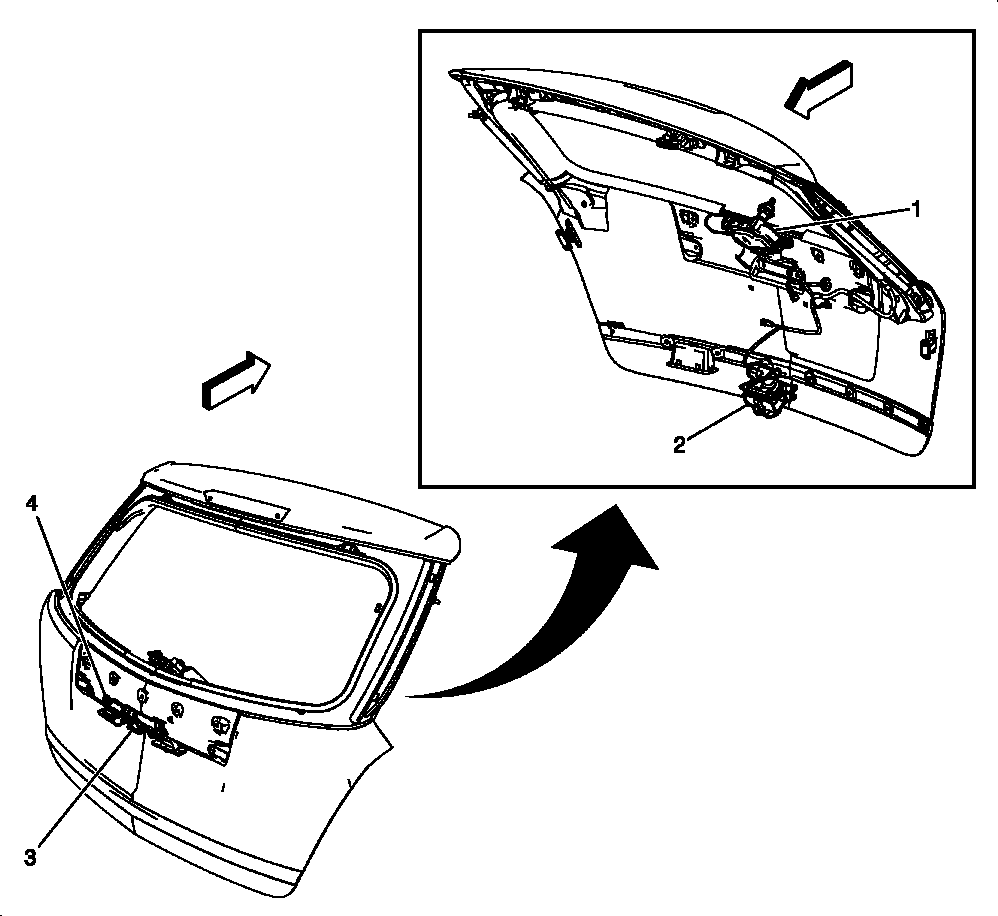

| Callout | Component Name |
|---|---|
| 1 | Rear Window Wiper Control Module |
| 2 | Liftgate Latch Assembly |
| 3 | Liftgate Release Switch |

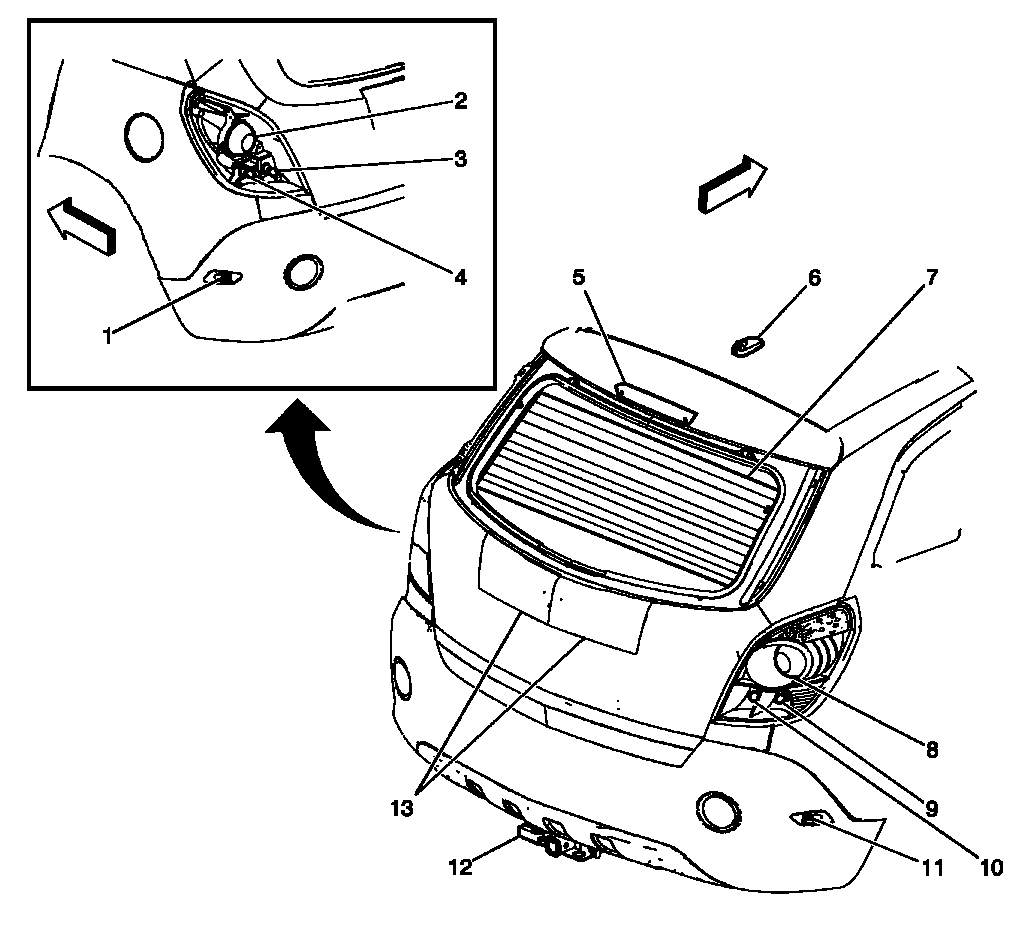

| Callout | Component Name |
|---|---|
| 1 | Marker Lamp - Left Rear |
| 2 | Tail/Stop Lamp - Left |
| 3 | Backup Lamp - Left |
| 4 | Turn Signal Lamp - Left Rear |
| 5 | Center High Mounted Stop Lamp (CHMSL) |
| 6 | Radio Antennas - Cellular (UE1), Digital (U2K), Radio Antenna |
| 7 | Rear Window Defogger Grid |
| 8 | Tail/Stop Lamp - Right |
| 9 | Turn Signal Lamp - Right Rear |
| 10 | Backup Lamp - Right |
| 11 | Marker Lamp - Right Rear |
| 12 | Trailer Connector Adapter (V92) |
| 13 | License Lamps - Left and Right |

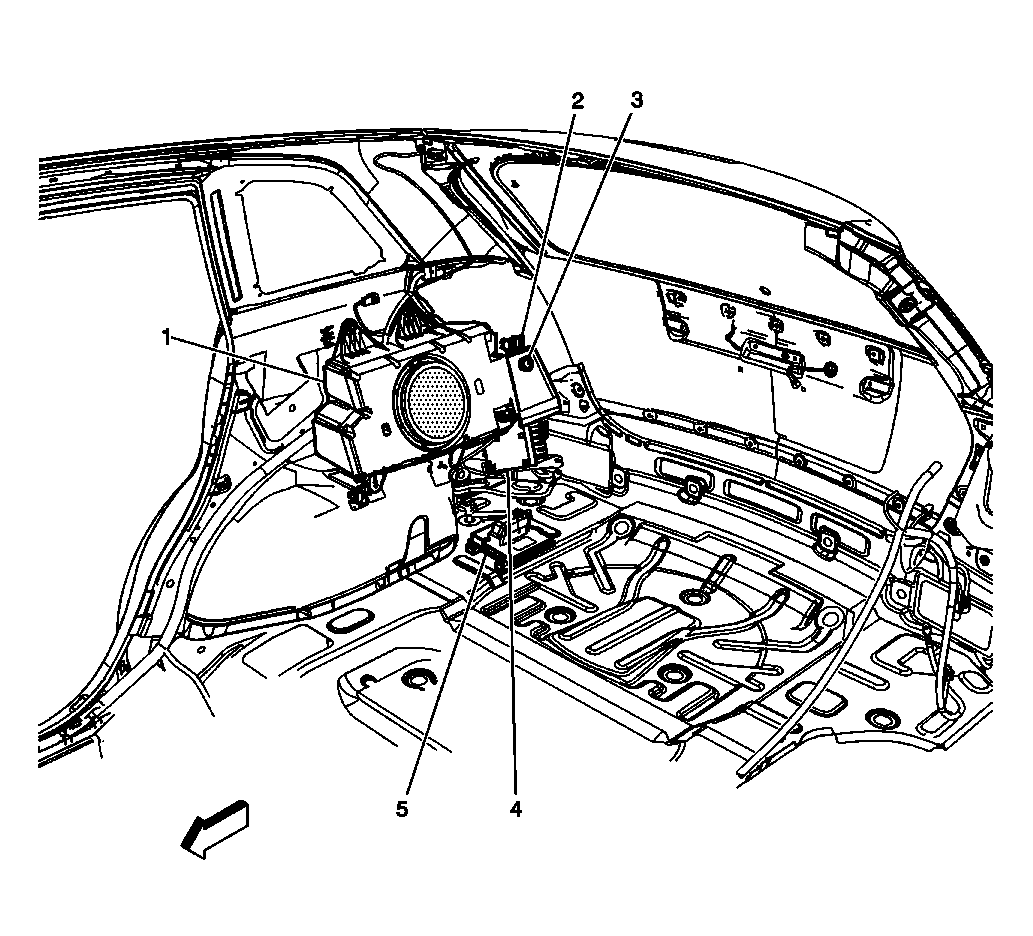

| Callout | Component Name |
|---|---|
| 1 | Speaker - Subwoofer (U61) |
| 2 | Rear Compartment Courtesy Lamp - Right |
| 3 | Accessory Power Outlet - Rear |
| 4 | Audio Amplifier (U61) |
| 5 | Fuel Pump Flow Control Module |
