Passenger Compartment/Roof Component Views

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

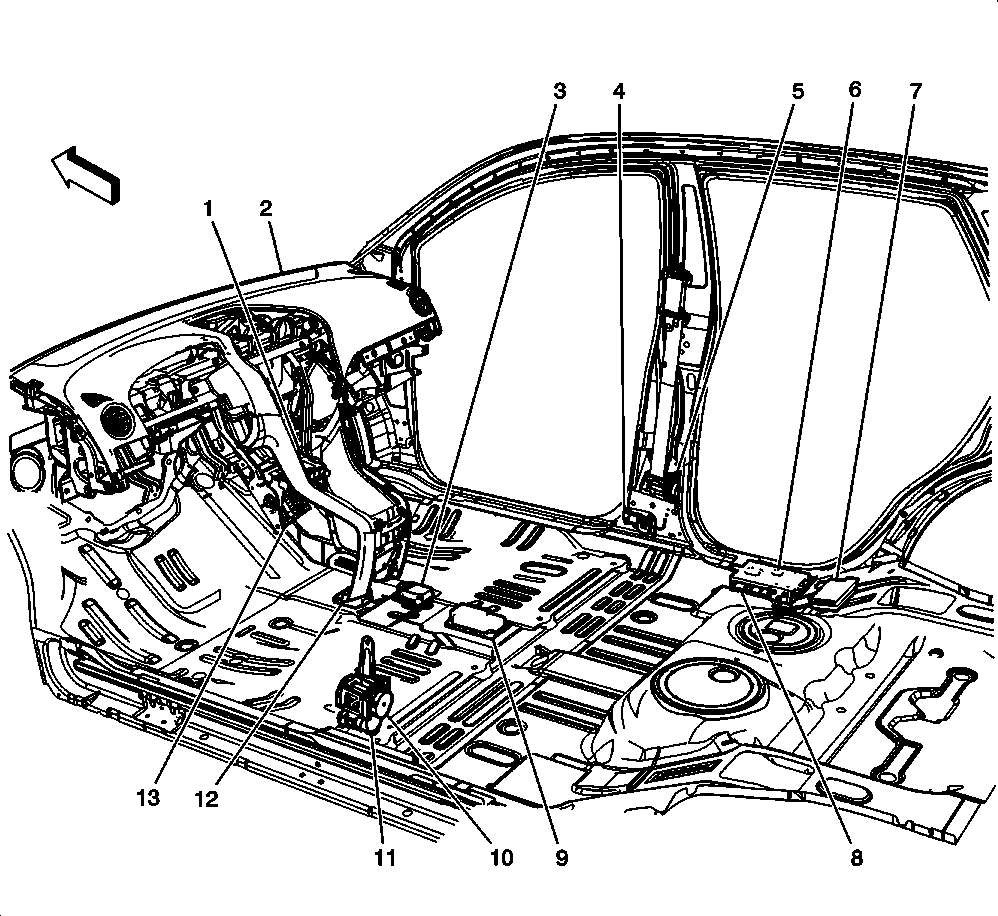

Fig 1: Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Control Module (BCM)
2	Instrument Panel
3	Yaw and Lateral Accelerometer Sensor
4	Inflatable Restraint Side Impact Sensor (SIS) - Right
5	Seat Belt Retractor Pretensioner and Tension Sensor- Right
6	Vehicle Communications Interface Module (VCIM) ( UE1)
7	Vehicle Communications Interface Module (VCIM) Battery ( UE1)
8	Inflatable Restraint Sensing and Diagnostic Module (SDM)
9	Seat Belt Retractor Pretensioner- Left
10	Inflatable Restraint Side Impact Sensor (SIS) - Left
11	Inflatable Restraint Vehicle Rollover Sensor
12	Fuse Block - I/P

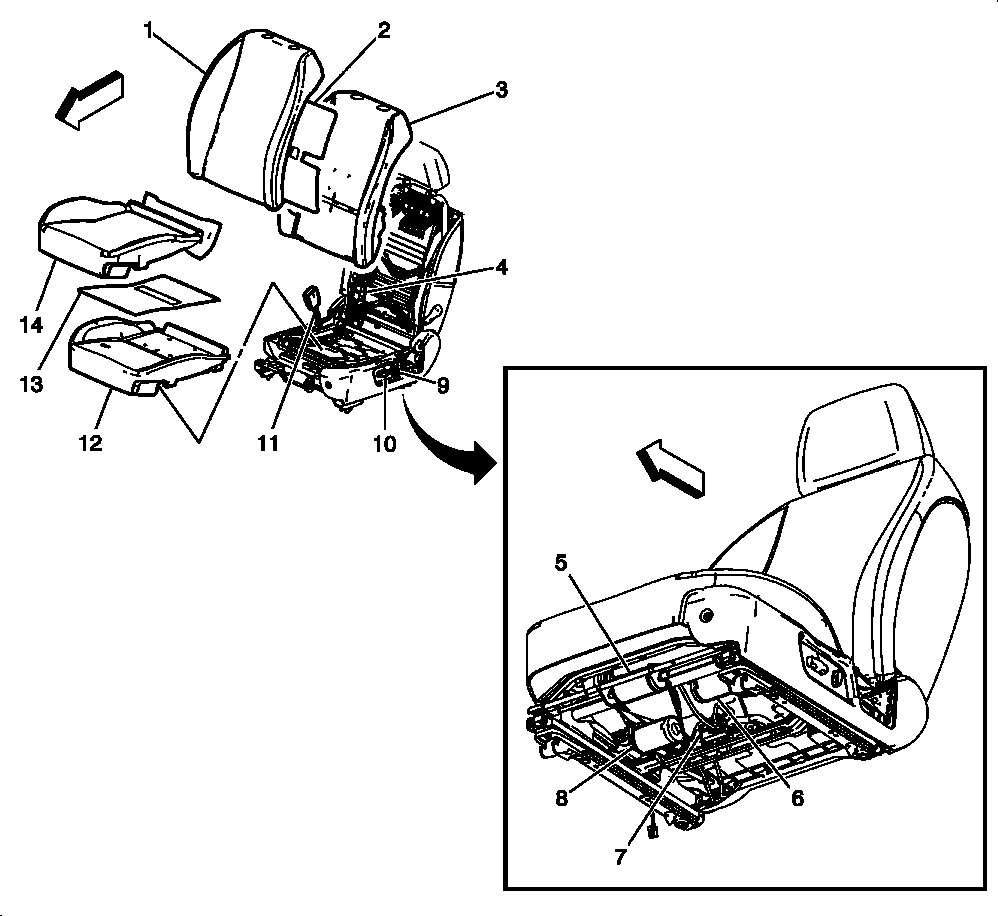

Fig 2: View Of Driver Heated Seats

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Back Cover - Driver
2	Heated Seat Element - Driver Back (KA1)
3	Seat Back Cushion Pad - Driver
4	Seat Recline Motor - Driver (AE8)
5	Seat Horizontal Motor - Driver (AE8 )
6	Seat Rear Vertical Motor - Driver (AE8 )
7	Heated Seat Control Module - Driver (KA1)
8	Seat Front Vertical Motor - Driver (AE8 )
9	Seat Recline Switch - Driver (AE8 )
10	Seat Adjuster Switch - Driver (AE8 )
11	Heated Seat Switch - Driver (KA1)
12	Seat Belt Switch - Driver
13	Seat Cushion - Driver
14	Heated Seat Element - Driver Cushion (KA1)
15	Seat Cover - Driver

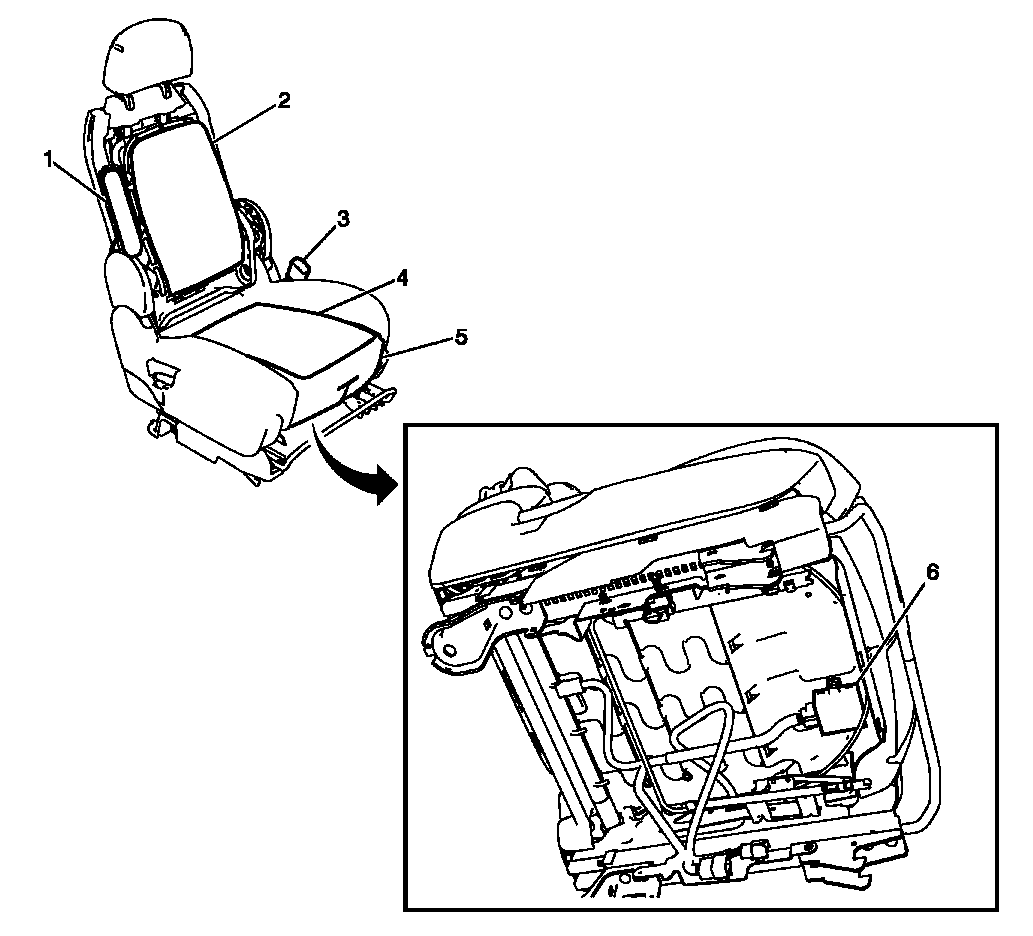

Fig 3: Front Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Right
2	Heated Seat Element - Passenger Back (KA1)
3	Seat Belt Buckle Pretensioner and Seat Belt Switch - Passenger
4	Heated Seat Element - Passenger Cushion (KA1)
5	Inflatable Restraint Passenger Presence System (PPS) Module
6	Heated Seat Control Module - Passenger (KA1)

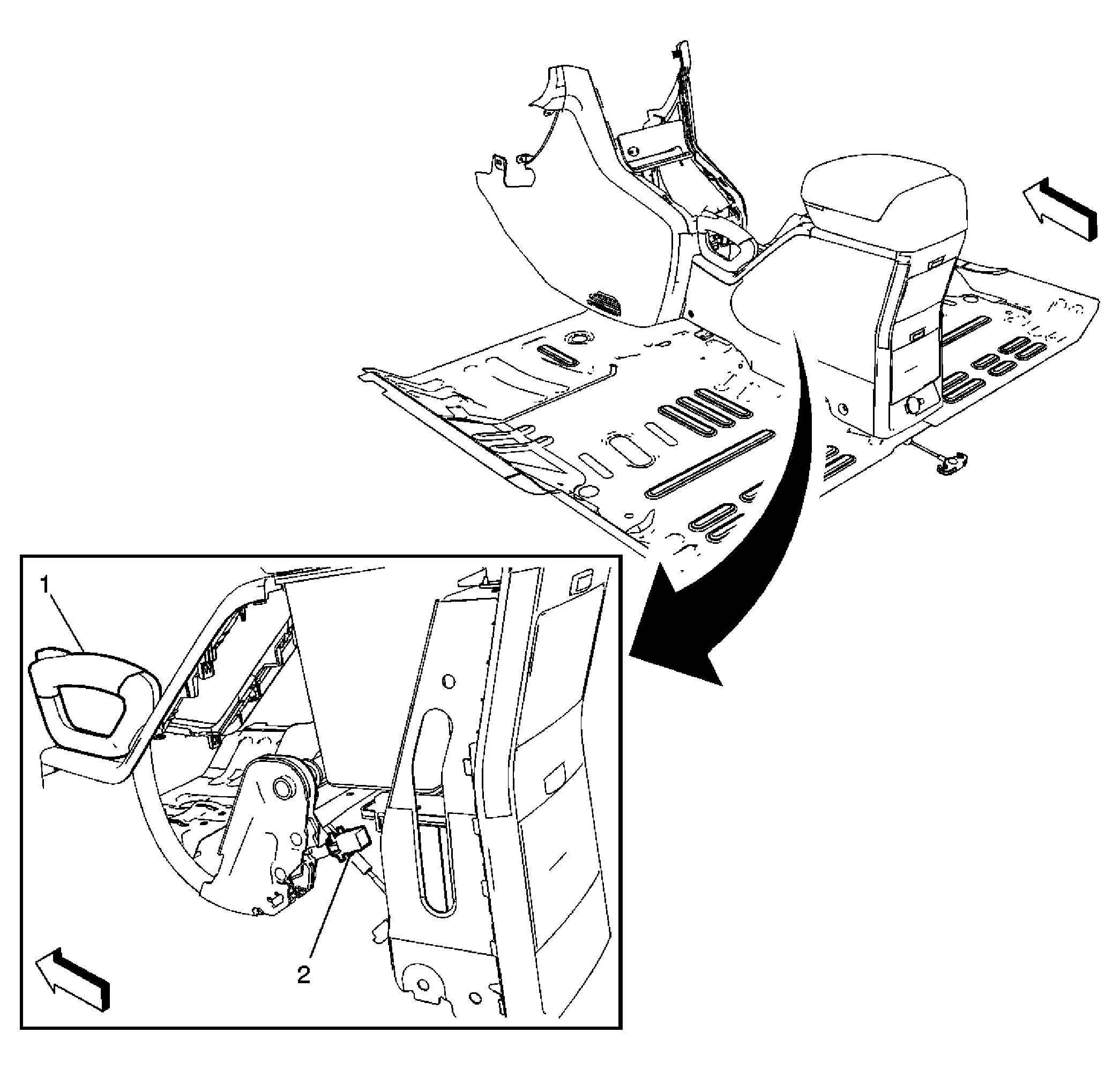

Fig 4: Park Brake Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park Brake Handle
2	Park Brake Switch

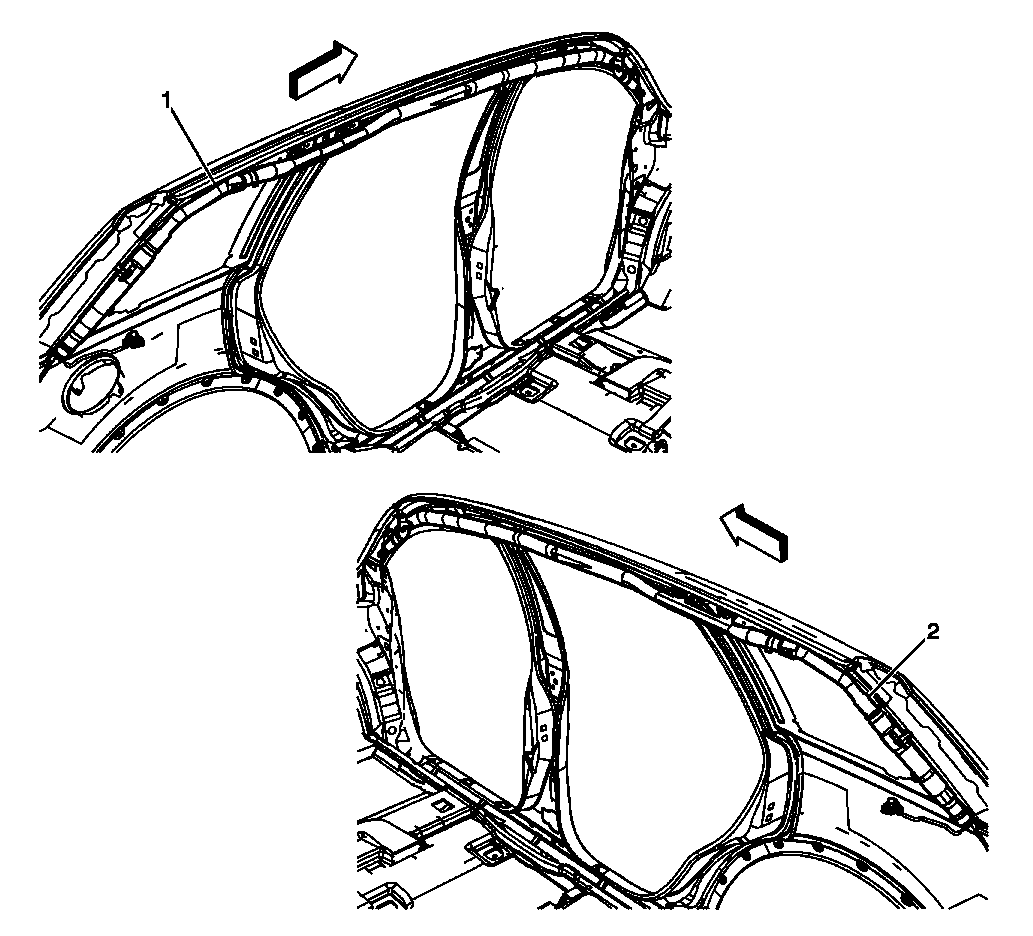

Fig 5: Inflatable Restraint Roof Rail Modules

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Left
2	Inflatable Restraint Roof Rail Module - Right

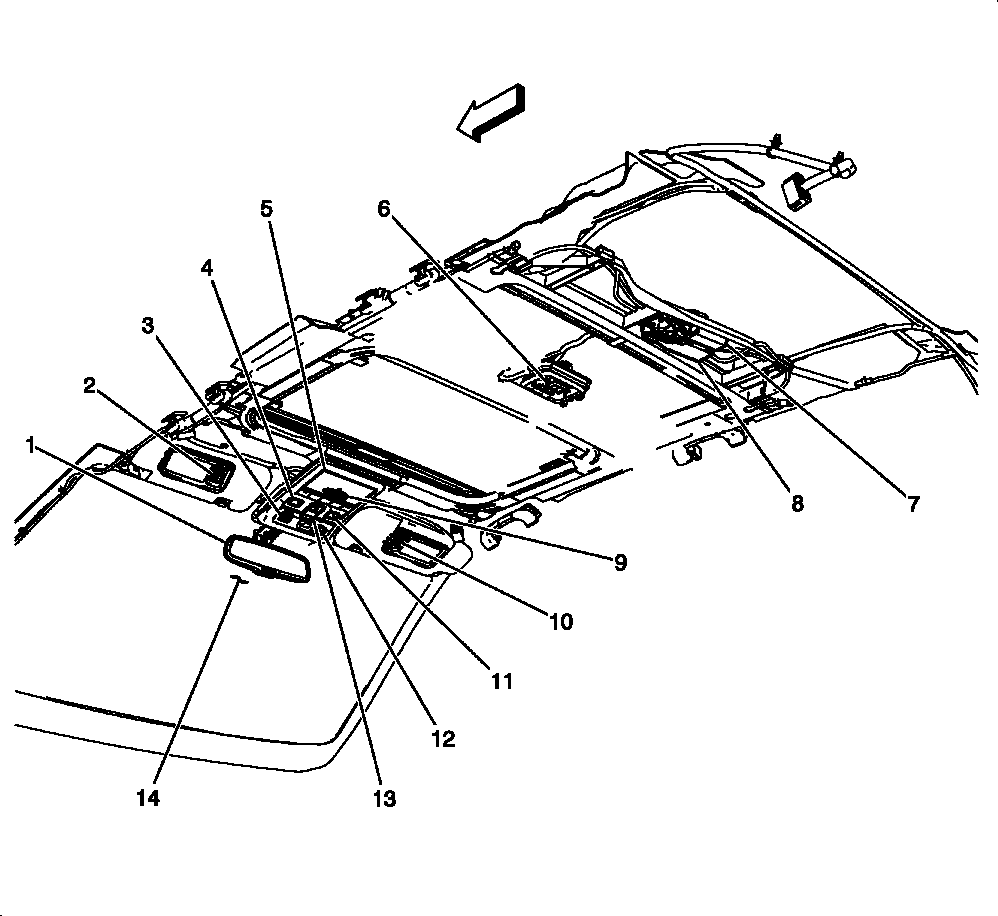

Fig 6: Headliner Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rearview Mirror (ISRVM) (DD8)
2	Sunshade Mirror - Left ( D61)
3	Cellular Telephone Microphone ( UE1)
4	Courtesy/Reading Lamp - Front
5	Sunroof Switch (CF5)
6	Digital Video Disc (DVD) Display (UUC)
7	Courtesy/Reading Lamp
8	Sunroof Motor (CF5)
9	Sunroof Module (CF5)
10	Garage Door Opener (GDO) ( UG1)
11	Sunshade Mirror - Right ( D61)
12	Courtesy/Reading Lamp - Front
13	Onstar Button Assembly ( UE1)
14	Sunroof Switch (CF5)
15	Windshield Outside Moisture Sensor ( CE1)

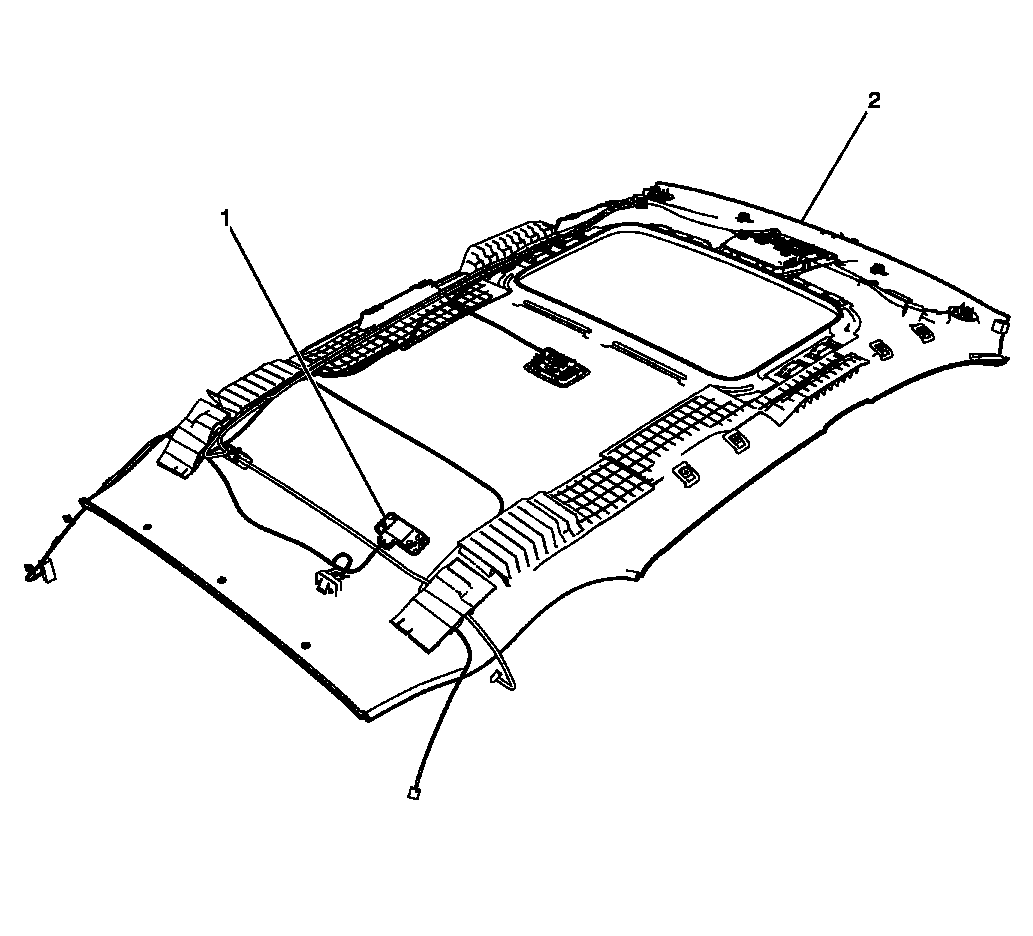

Fig 7: Above the Right Rear Headliner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Compass Module (COM)
2	Headliner

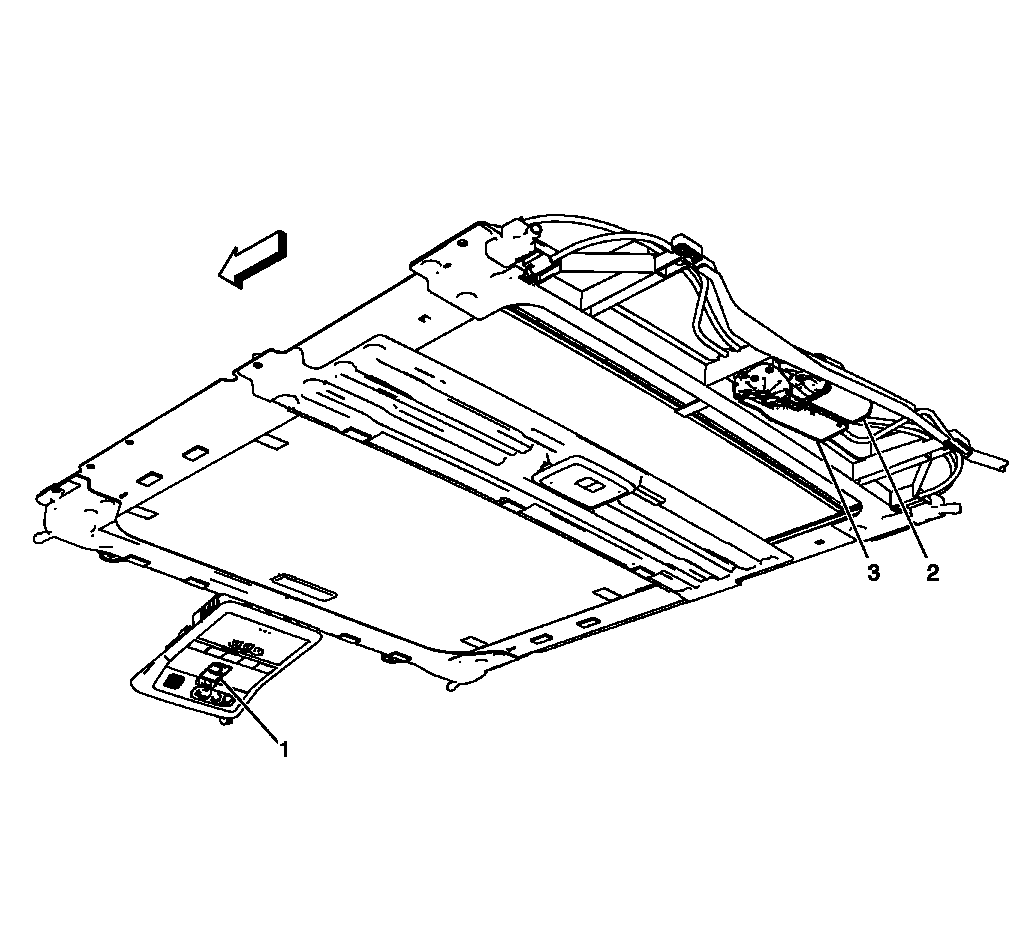

Fig 8: Sunroof Components (CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Switch
2	Sunroof Motor
3	Sunroof Control Module
