Engine Flywheel Installation (LCS): Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

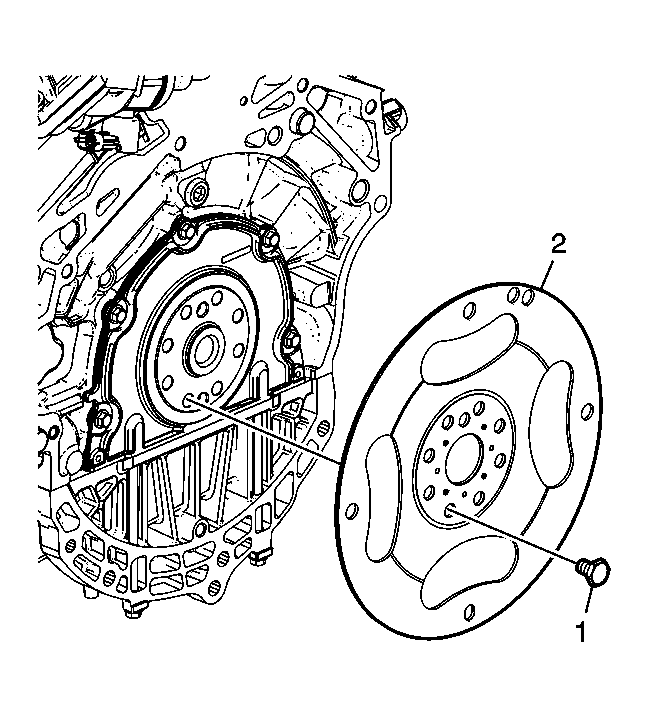

    Fig 1: Engine Flywheel
    GM2137820Courtesy of GENERAL MOTORS CORP.
  1. Install the engine flywheel (2).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the NEW engine flywheel bolts (1) and:
    1. Tighten the NEW engine flywheel bolts to 30 N.m (22 lb ft) .
    2. Tighten the NEW engine flywheel bolts an additional 45 degrees using the J 45059:  meter .
