Engine Coolant Thermostat Housing Installation (LCS)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Thermostat Housing & Gasket
    GM2137827Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW gasket (1) onto the thermostat housing.

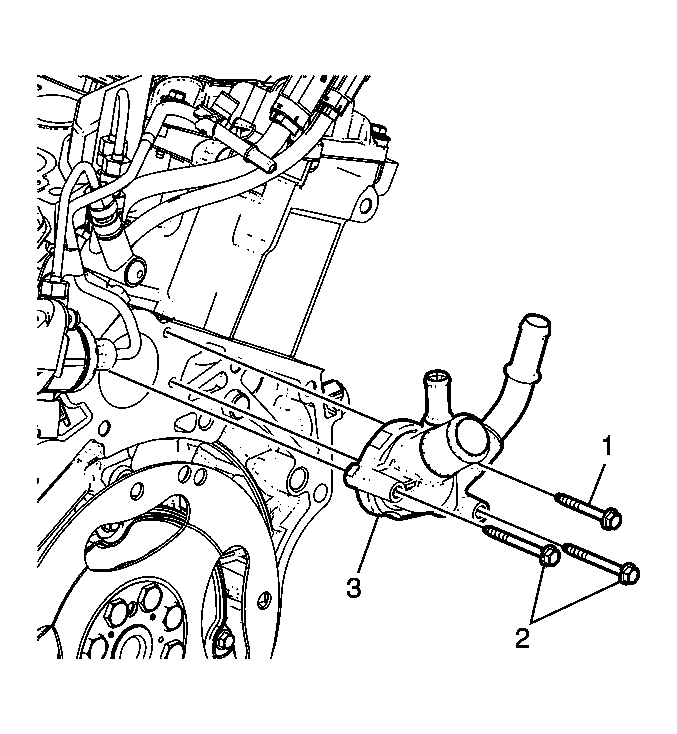

    2. Fig 2: Identifying Thermostat Housing Bolts
    GM2137824Courtesy of GENERAL MOTORS CORP.
  2. Install the thermostat housing (3).
    3. CAUTION: Refer to Fastener Caution .
  3. Install the thermostat housing bolts (1, 2). Ensure to install the short bolt (1) and the long bolts (2) in the proper position and tighten the thermostat housing bolts to 10 N.m (89 lb in).
