Primary Timing Chain Guide Installation - Lower

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

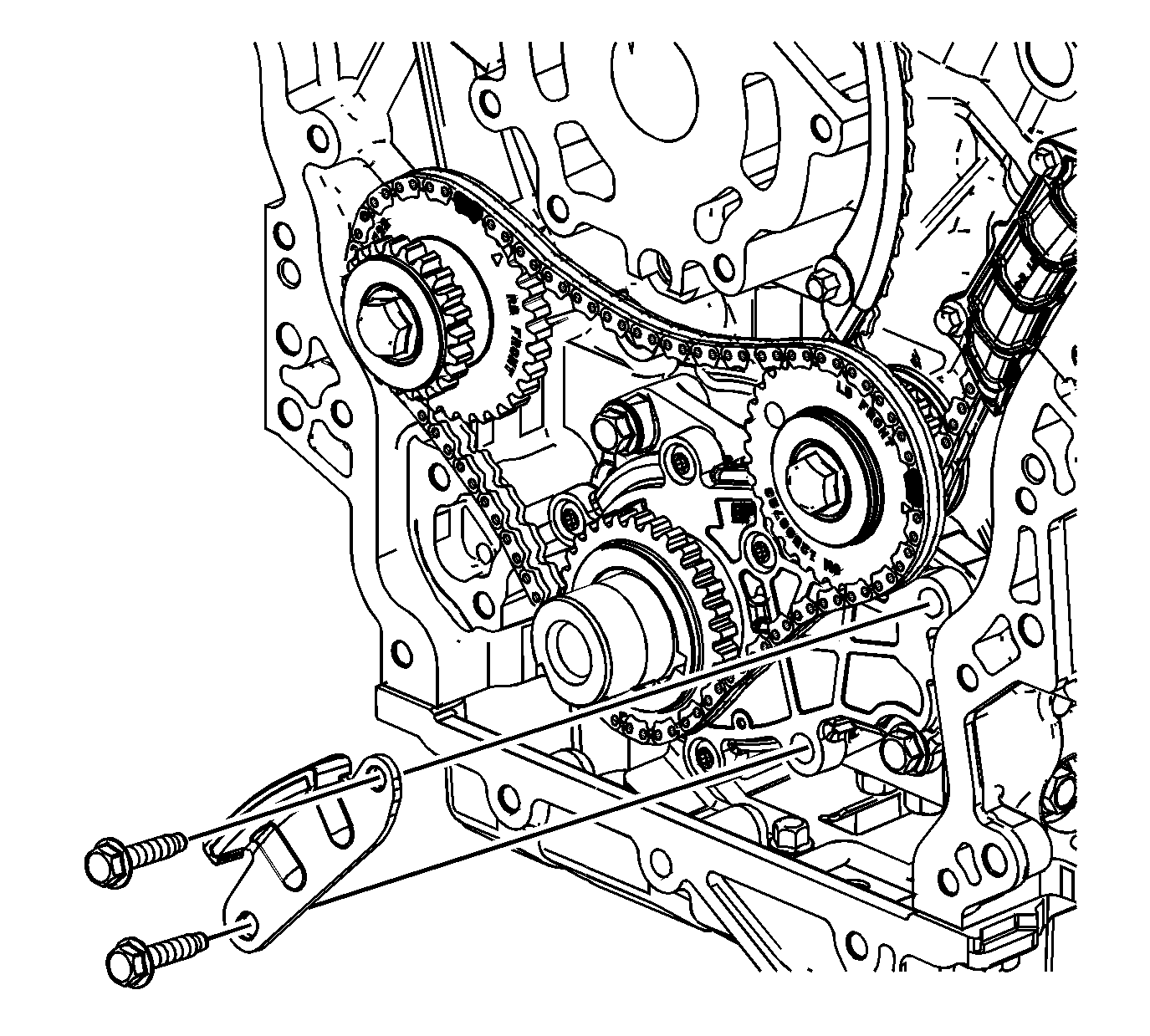

    Fig 1: View Of Primary Camshaft Drive Chain Lower Guide Bolts
    GM1852984Courtesy of GENERAL MOTORS CORP.
  1. Position the primary camshaft drive chain lower guide to the oil pump.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the primary camshaft drive chain lower guide bolts and tighten to 25 N.m (18 lb ft).
