Left Camshaft Cover

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Camshaft Cover & Bolt Insulator

Courtesy of GENERAL MOTORS CORP.

Remove and discard the left camshaft cover bolt insulators.

Fig 2: Identifying Fuel Injector Sight Shield Cover Ballstud

Courtesy of GENERAL MOTORS CORP.

Remove the fuel injector sight shield ballstud.

Fig 3: View Of Oil Fill Cap

Courtesy of GENERAL MOTORS CORP.

Remove the oil fill cap.

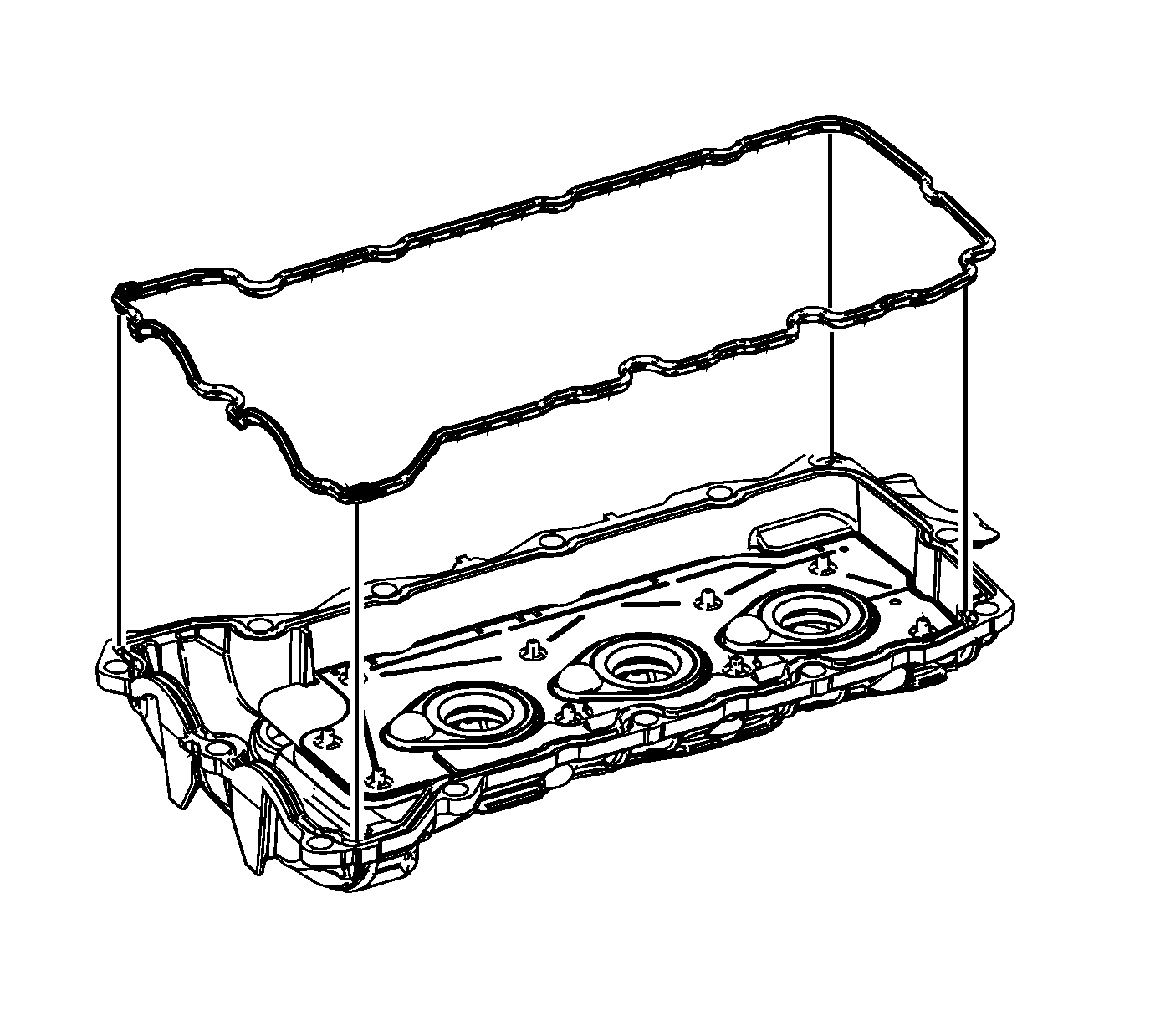

Fig 4: Identifying Left Camshaft Cover Gasket

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Do not reuse the camshaft cover gasket and spark plug shield tube seals.

Remove and discard the left camshaft cover gasket.

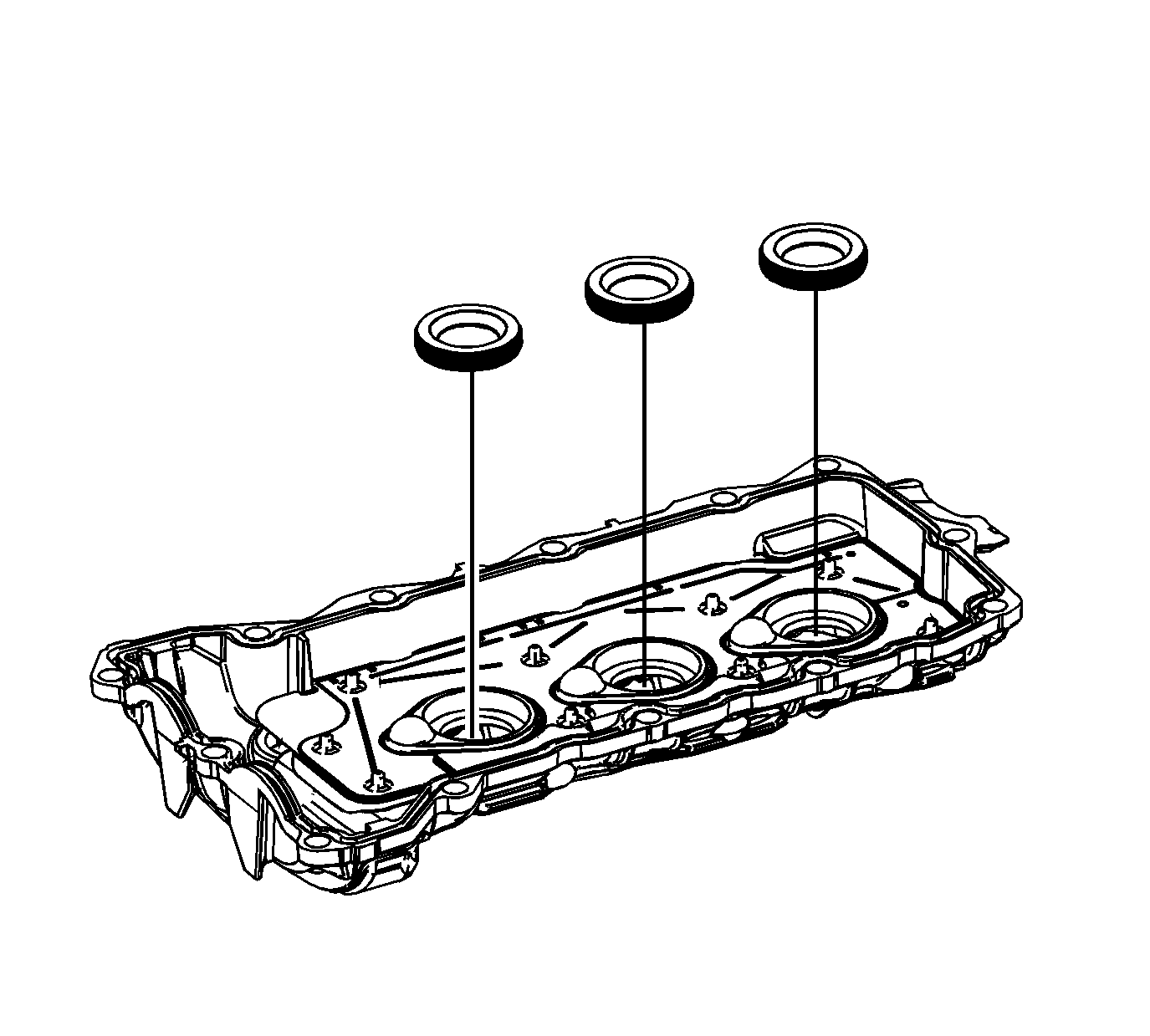

Fig 5: Identifying Left Spark Plug Shield Tube Seals

Courtesy of GENERAL MOTORS CORP.

Remove and discard the left spark plug shield tube seals.
