PCV Fitting Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

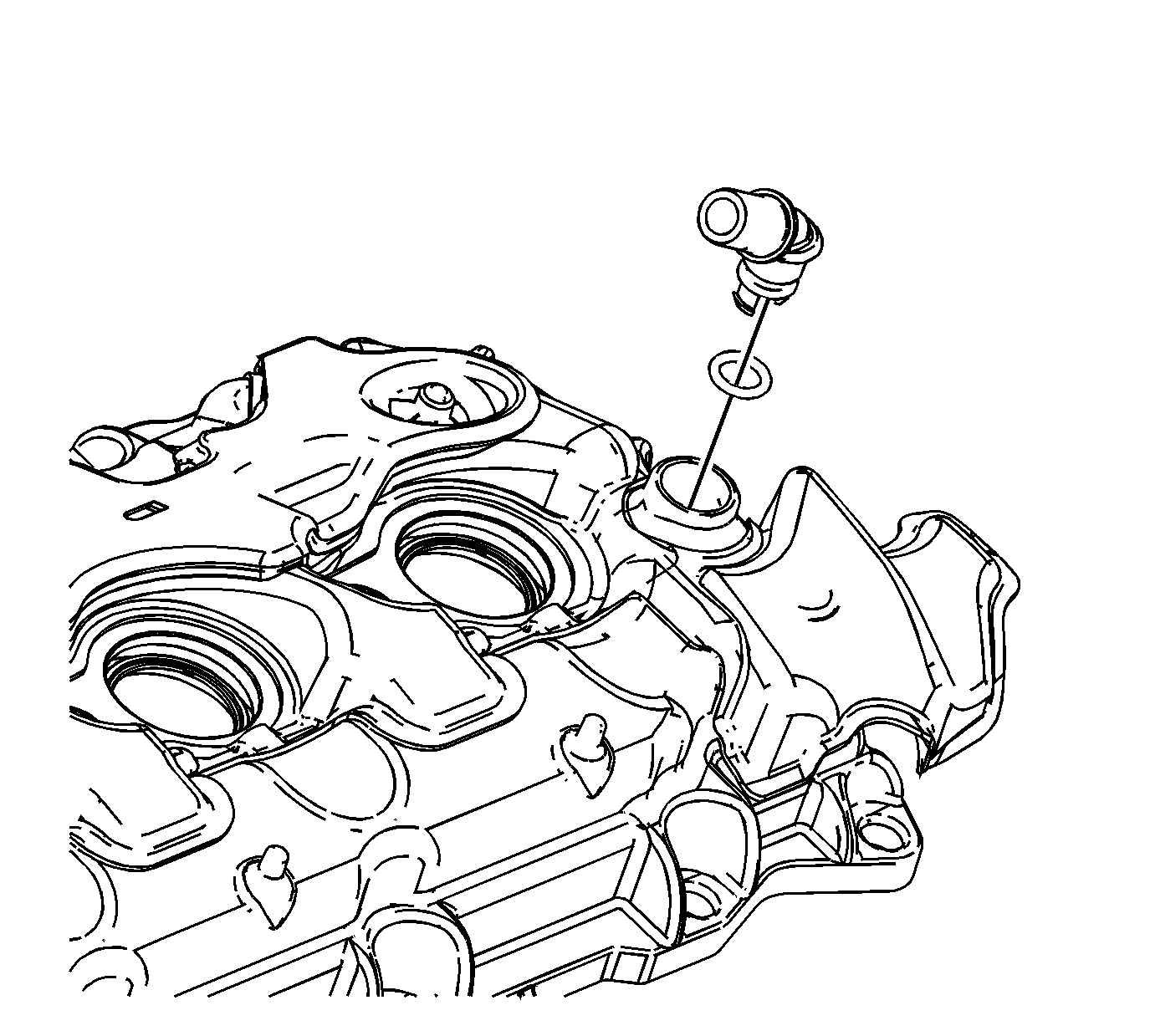

    Fig 1: Identifying PCV Fitting & O-Ring
    GM1864462Courtesy of GENERAL MOTORS CORP.
    NOTE: If the PCV fitting is damaged or plugged and cannot be cleaned out, the PCV fitting can be replaced.
  1. Remove the old PCV fitting.
  2. Install the new PCV fitting with a NEW O-ring.
