X912 Liftgate Harness to Liftgate Jumper Harness

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

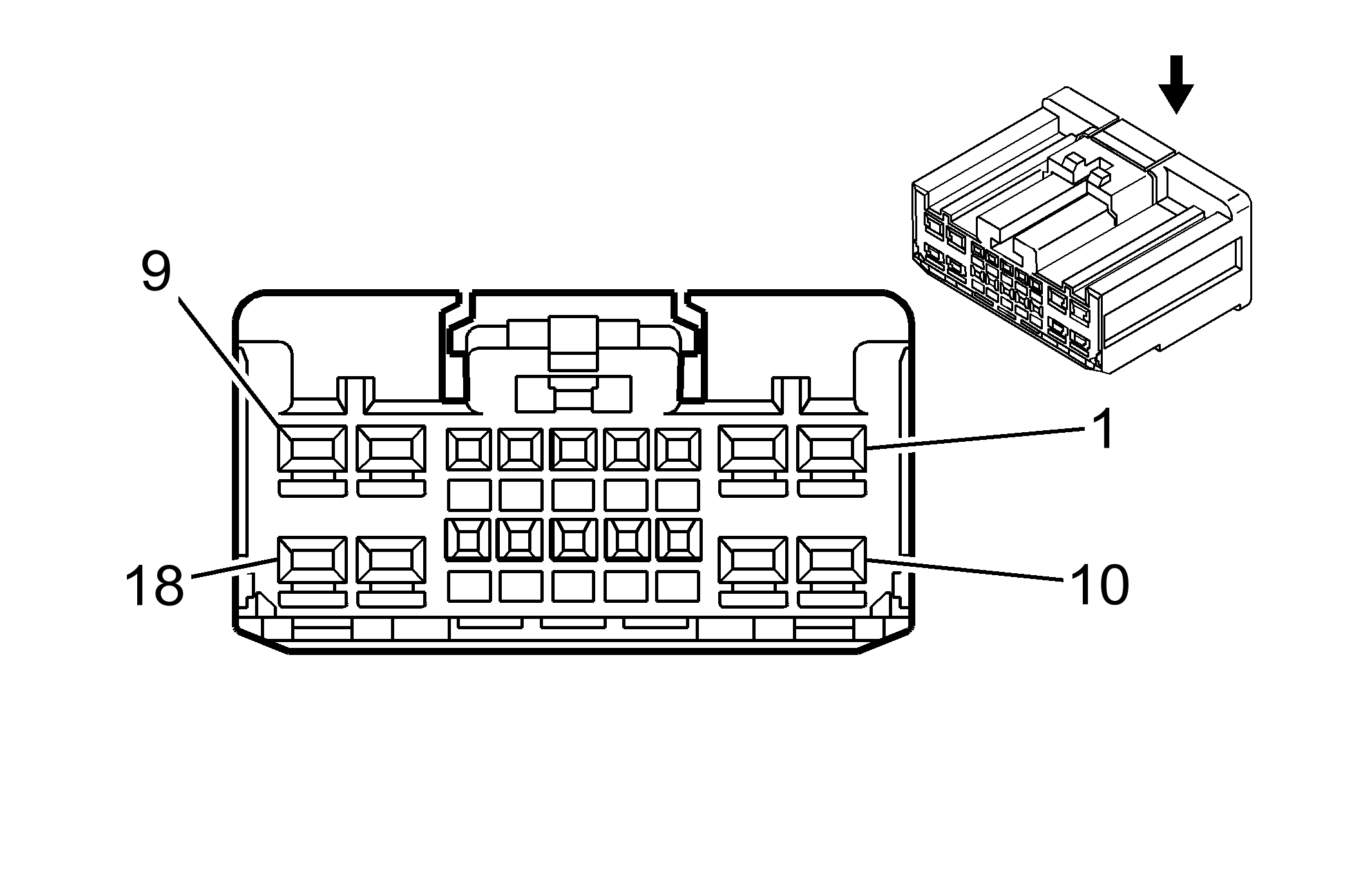

GM1963320Courtesy of GENERAL MOTORS CORP.
GM1963321Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13584549
  • Service: See Catalog
  • Description: 18-Way F (BK)
 Connector Part Information
  • OEM: 13584548
  • Service: See Catalog
  • Description: 18-Way M (BK)
Terminal Part Information
  • Pins: 1, 8, 18
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
  • Pins: 3, 5-7, 13
  • Terminal/Tray: SNAC3-A021T-M0.64/20
  • Core/Insulation Crimp: J/J
  • Release Tool/Test Probe: 15315247/J-35616-64B (L-BU)
 Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
X912 Liftgate Harness to Liftgate Jumper Harness

Pin Wire Circuit Function Pin Wire Circuit Function
1 0.8 D-GN 392 Rear Window Washer Pump Control 1 0.8 D-GN 392 Rear Window Washer Pump Control
2 0.35 BK 650 Ground (UVC) 2 0.35 BK 650 Ground (UVC)
3 0.35 GY 391 Rear Window Wiper Switch Signal 3 0.35 GY 391 Rear Window Wiper Switch Signal
4 0.35 PK. 139 Ignition 1 Voltage (UVC) 4 0.35 PK. 139 Ignition 1 Voltage (UVC)
5 0.5 PU 709 Left Park Lamp Supply Voltage 5 0.5 PU 709 Left Park Lamp Supply Voltage
6 0.5 L-BU 6128 Rear Closure Unlatch Motor Unlatch Control 6 0.5 L-BU 6128 Rear Closure Unlatch Motor Unlatch Control
7 0.35 PK/BK 1303 Liftgate Ajar Switch Signal 7 0.35 PK/BK 1303 Liftgate Ajar Switch Signal
8 1 RD/WH 2240 Battery Positive Voltage 8 1 RD/WH 2240 Battery Positive Voltage
9-11 - - Not Used 9-11 - - Not Used
12 0.35 GN 24 Backup Lamp Supply Voltage (UVC) 12 0.35 GN 24 Backup Lamp Supply Voltage (UVC)
13 0.35 D-GN 6127 Liftgate Unlatch Switch Signal 13 0.35 D-GN 6127 Liftgate Unlatch Switch Signal
14 0.35 Bare 6974 Camera Drain Wire (UVC) 14 0.35 Bare 6974 Camera Drain Wire (UVC)
15 0.35 PK 6972 Camera Signal + (UVC) 15 0.35 PK 6972 Camera Signal + (UVC)
16 0.35 L-BU 6973 Camera Signal - (UVC) 16 0.35 L-BU 6973 Camera Signal - (UVC)
17 - - Not Used 17 - - Not Used
18 2 BK 650 Ground 18 2 BK 650 Ground
