X700 Body Harness to Door Harness - Left Rear

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

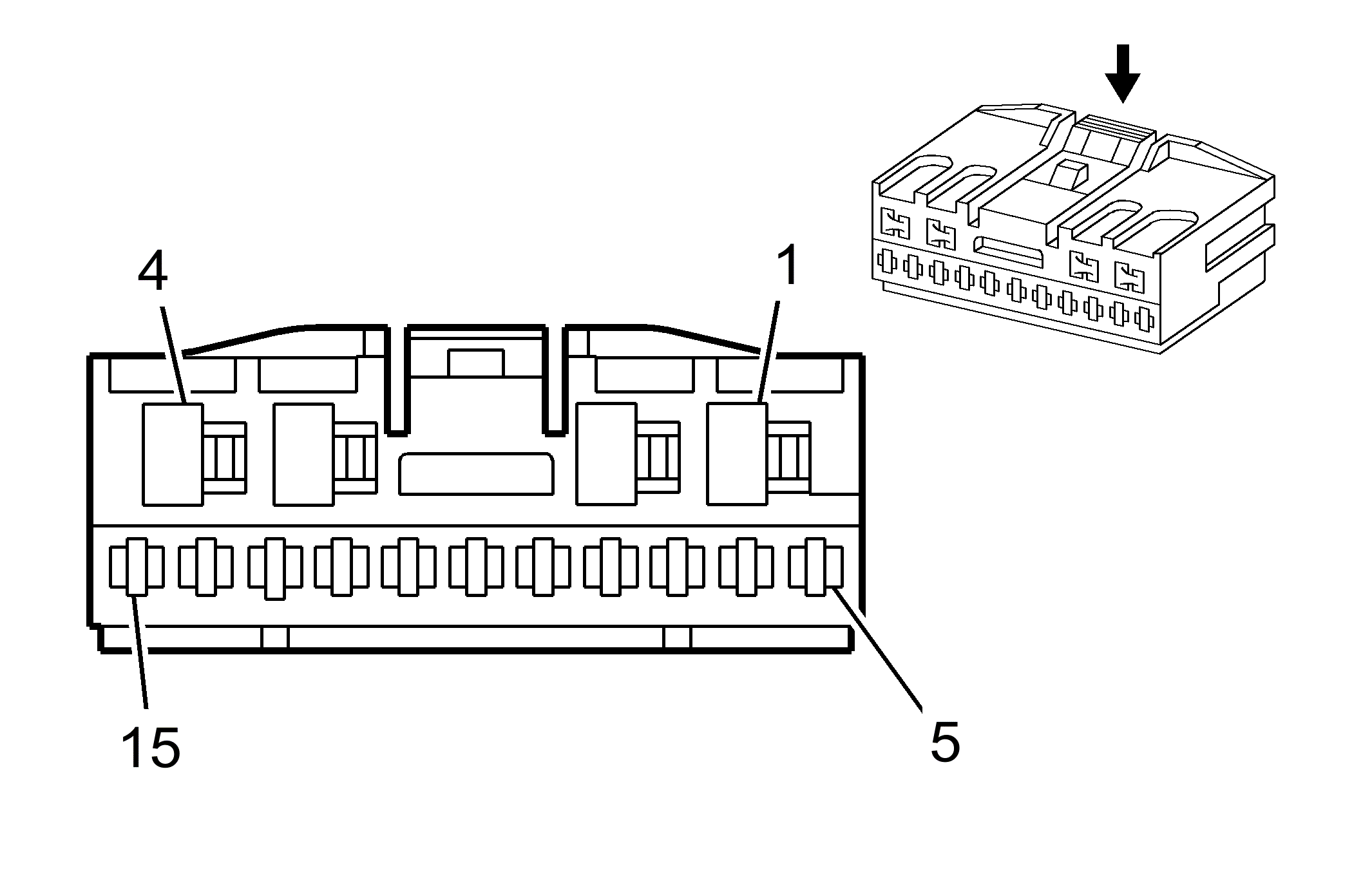

GM1963323Courtesy of GENERAL MOTORS CORP.

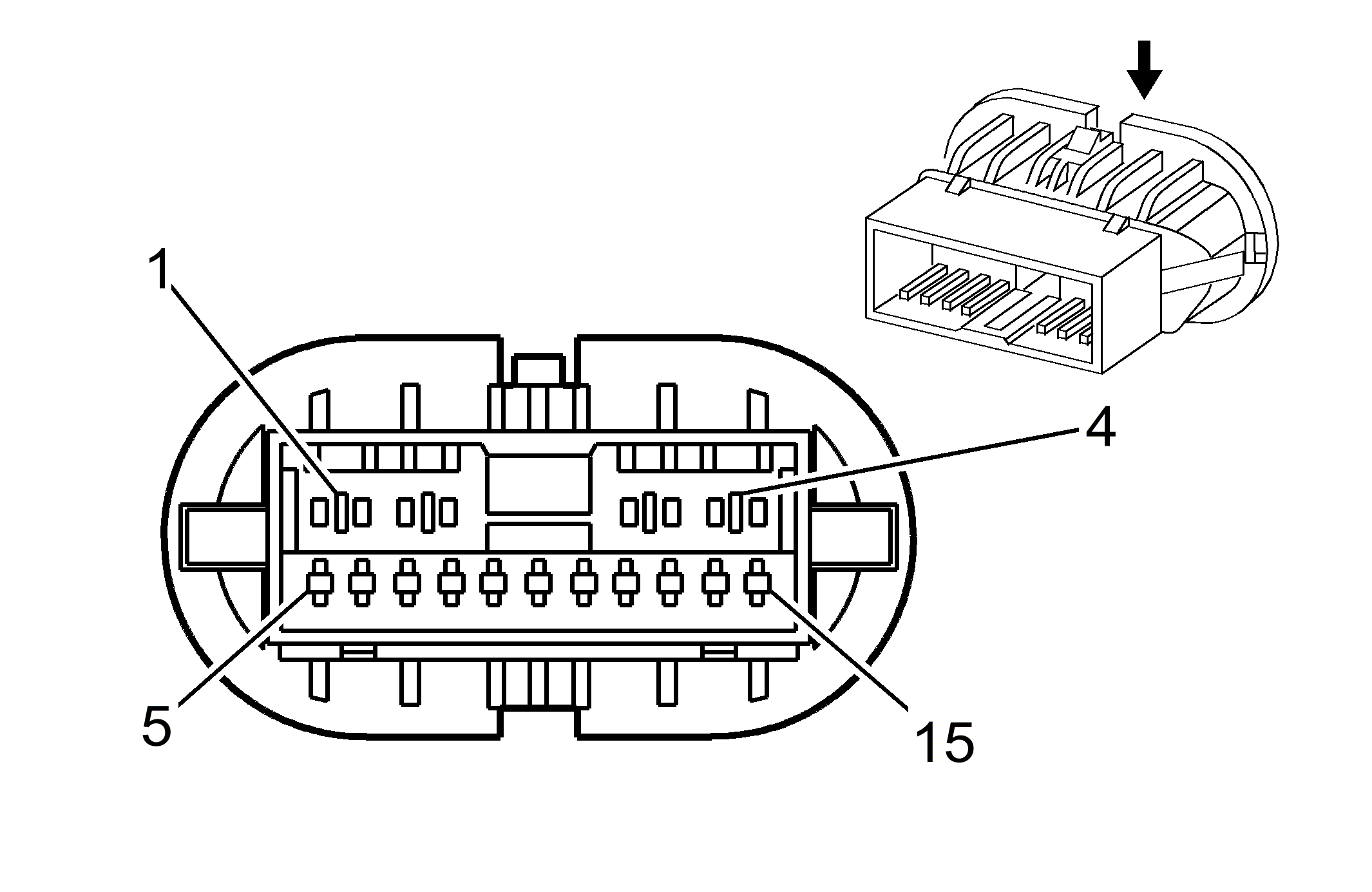

GM1963324Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13579291
  • Service: 19178199
  • Description: 15-Way F Hybrid (WH)
 Connector Part Information
  • OEM: 13579647
  • Service: See Catalog
  • Description: 15-Way M Mixed Series (WH)
Terminal Part Information
  • Pins: 1-2, 4
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
  • Pins: 6-8, 10, 14-15
  • Terminal/Tray: 964274-2/16
  • Core/Insulation Crimp: Pins: 6-8, 10, 15 : E/1
  • Core/Insulation Crimp: Pins: 14 : See Terminal Repair Kit
  • Release Tool/Test Probe: J-38125-560/J-35616-33 (YE)
 Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
X700 Body Harness to Door Harness - Left Rear

Pin Wire Circuit Function Pin Wire Circuit Function
1 2 D-GN 168 Power Window Master Switch Left Rear Up Signal 1 2 D-GN 168 Power Window Master Switch Left Rear Up Signal
2 2 PU 169 Power Window Master Switch Left Rear Down Signal 2 2 PU 169 Power Window Master Switch Left Rear Down Signal
3 - - Not Used 3 - - Not Used
4 2 D-BU 1307 Power Window Master Switch Lockout Signal 4 2 D-BU 1307 Power Window Master Switch Lockout Signal
5 - - Not Used 5 - - Not Used
6 0.5 TN 294 Door Lock Actuator Unlock Control 6 0.5 TN 294 Door Lock Actuator Unlock Control
7 0.8 BN 199 Left Rear Speaker Output (+) 7 0.8 BN 199 Left Rear Speaker Output (+)
0.8 BN 199 Left Rear Speaker Output (+) (U61)
8 0.8 YE 116 Left Rear Speaker Output (-) 8 0.8 YE 116 Left Rear Speaker Output (-)
0.8 YE 116 Left Rear Speaker Output (-) (U61)
9 - - Not Used 9 - - Not Used
10 0.5 GY 295 Door Lock Actuator Lock Control 10 0.5 GY 295 Door Lock Actuator Lock Control
11-13 - - Not Used 11-13 - - Not Used
14 0.35 TN/WH 746 Left Rear Door Ajar Switch Signal 14 0.35 TN/WH 746 Left Rear Door Ajar Switch Signal
15 0.5 BK 650 Ground 15 0.5 BK 650 Ground
