X509 Left Front Door Trim Harness to Left Door Courtesy Lamp Harness

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
GM1962074Courtesy of GENERAL MOTORS CORP.

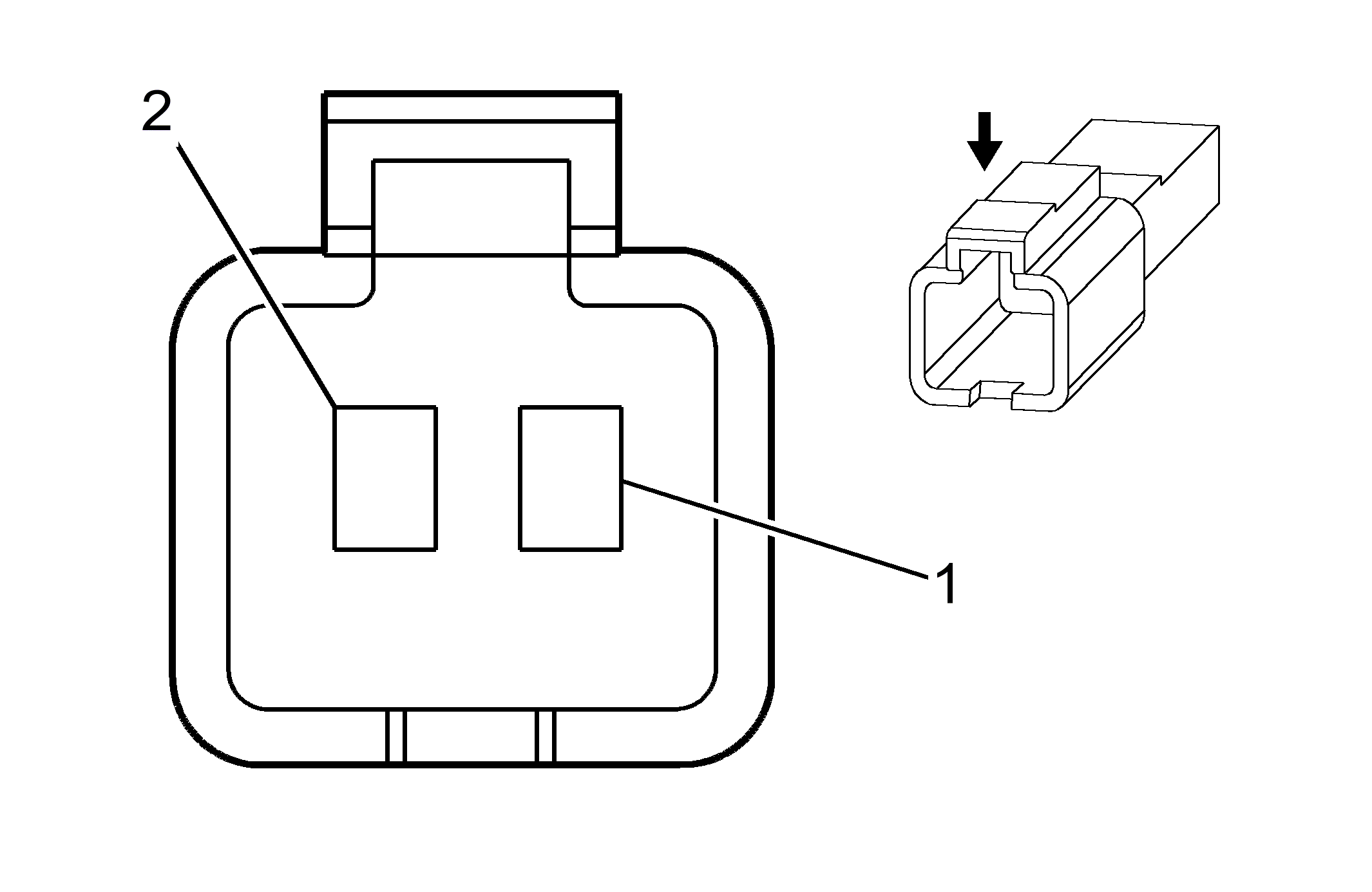

GM1830936Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13583214
  • Service: 21019410
  • Description: 2-Way F 090 Series (WH)
 Connector Part Information
  • OEM: 49228-0210
  • Service: See Catalog
  • Description: 2-Way M 090 Series (WH)
Terminal Part Information
  • Terminal/Tray: 12015858/4
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
 Terminal Part Information
  • Terminal/Tray: 12020116/2
  • Core/Insulation Crimp: A/D
  • Release Tool/Test Probe: 12094430/J-35616-5 (PU)
X509 Left Front Door Trim Harness to Left Door Courtesy Lamp Harness

Pin Wire Circuit Function Pin Wire Circuit Function
1 0.35 GY/BK 690 Courtesy Lamp Supply Voltage 1 0.35 BK 690 Courtesy Lamp Supply Voltage
2 0.35 BK 450 Ground 2 0.35BK 450 Ground
