X400 Headliner Harness to Body Harness (without UVC)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

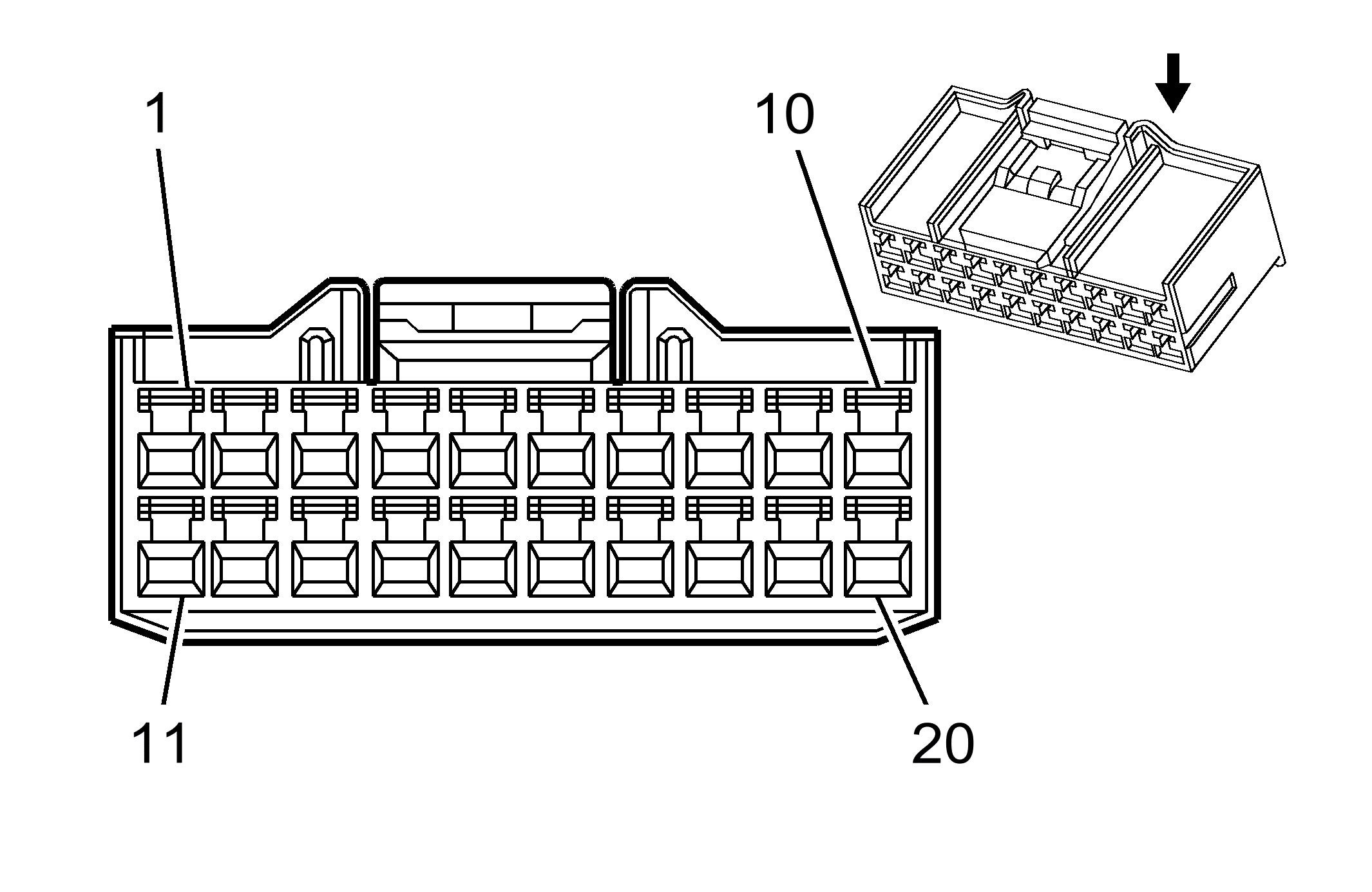

GM1993746Courtesy of GENERAL MOTORS CORP.

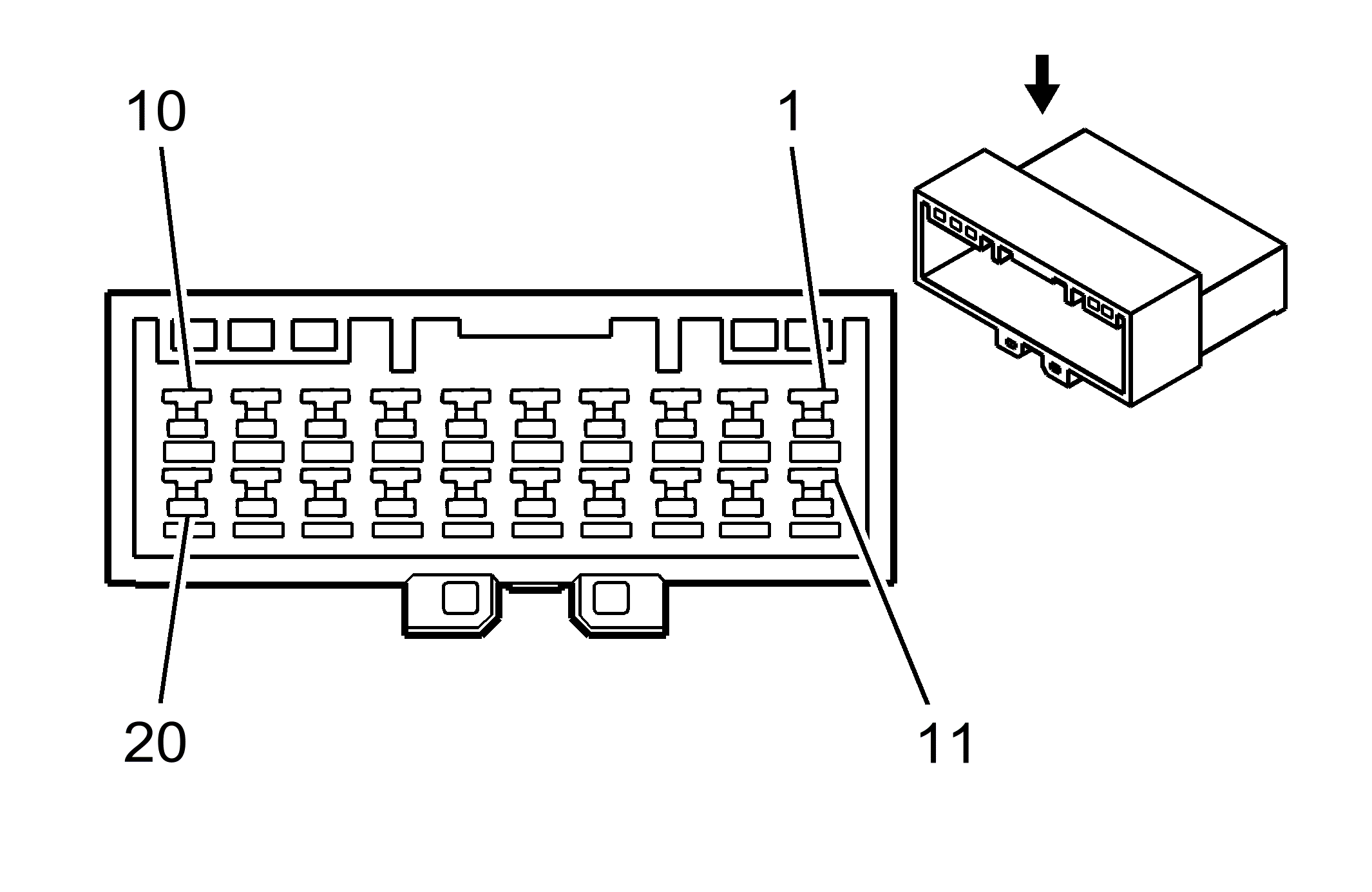

GM1993747Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13589898
  • Service: 19178209
  • Description: 20-Way F 090 III (WH)
 Connector Part Information
  • OEM: 13591087
  • Service: 19178210
  • Description: 20-Way M 090 III (WH)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
 Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
X400 Headliner Harness to Body Harness (without UVC)

Pin Wire Circuit Function Pin Wire Circuit Function
1 0.35 L-GN/BK 2515 Keypad Supply Voltage (UE1) 1 0.35 L-GN/BK 2515 Keypad Supply Voltage (UE1)
2 0.35 PU 328 Interior Lamp Switch Voltage Supply Circuit 2 0.35 PU 328 Interior Lamp Switch Voltage Supply Circuit
3 0.35 D-GN/WH 2514 Keypad Signal (UE1) 3 0.35 D-GN/WH 2514 Keypad Signal (UE1)
4 2 BK 650 Ground 4 2 BK 650 Ground
5 0.35 BN 6132 Linear Interconnect Network Bus 1 5 0.35 BN 6132 Linear Interconnect Network Bus 1
6 0.35 BN 4 Accessory Voltage (CE1) 6 0.35 BN 4 Accessory Voltage (CE1)
7 0.35 L-GN 482 Outside Moisture Sensor Signal 2 (CE1) 7 0.35 L-GN 482 Outside Moisture Sensor Signal 2 (CE1)
8 0.8 BN/WH 230 I/P Lamps Dimming Control (CE1) 8 0.8 BN/WH 230 I/P Lamps Dimming Control (CE1)
9 0.35 YE 143 Accessory Voltage (CF5) 9 0.35 YE 143 Accessory Voltage (CF5)
10 0.5 BK 650 Ground 10 0.5 BK 650 Ground
11 0.35 BN/WH 2517 Keypad Red LED Signal (UE1) 11 0.35 BN/WH 2517 Keypad Red LED Signal (UE1)
12 0.35 YE/BK 2516 Keypad Green LED Signal (UE1) 12 0.35 YE/BK 2516 Keypad Green LED Signal (UE1)
13 0.5 RD/WH 1940 Battery Positive Voltage (CE1) 13 0.5 RD/WH 1940 Battery Positive Voltage (CE1)
14 0.35 PK 239 Ignition 1 Voltage 14 0.35 PK 239 Ignition 1 Voltage
14 0.35 PK 239 Ignition 1 Voltage (CE1/CF5)
15 0.5 OG 1732 Courtesy Lamps Supply Voltage 15 0.5 OG 1732 Courtesy Lamps Supply Voltage
16 0.5 GY/BK 690 Courtesy Lamp Supply Voltage 16 0.5 GY/BK 690 Courtesy Lamp Supply Voltage
17 0.35 TN 481 Outside Moisture Sensor Signal 1 (CE1) 17 0.35 TN 481 Outside Moisture Sensor Signal 1 (CE1)
18 0.5 BARE 1489 Drain Wire (UE1) 18 0.5 D-GN 1489 Drain Wire (UE1)
19 0.5 GY 655 Cellular Microphone Signal (UE1) 19 0.5 GY 655 Cellular Microphone Signal (UE1)
20 1 RD/WH 440 Battery Positive Voltage (CF5) 20 1 RD/WH 440 Battery Positive Voltage
