X214 I/P Harness to Antenna Harness

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

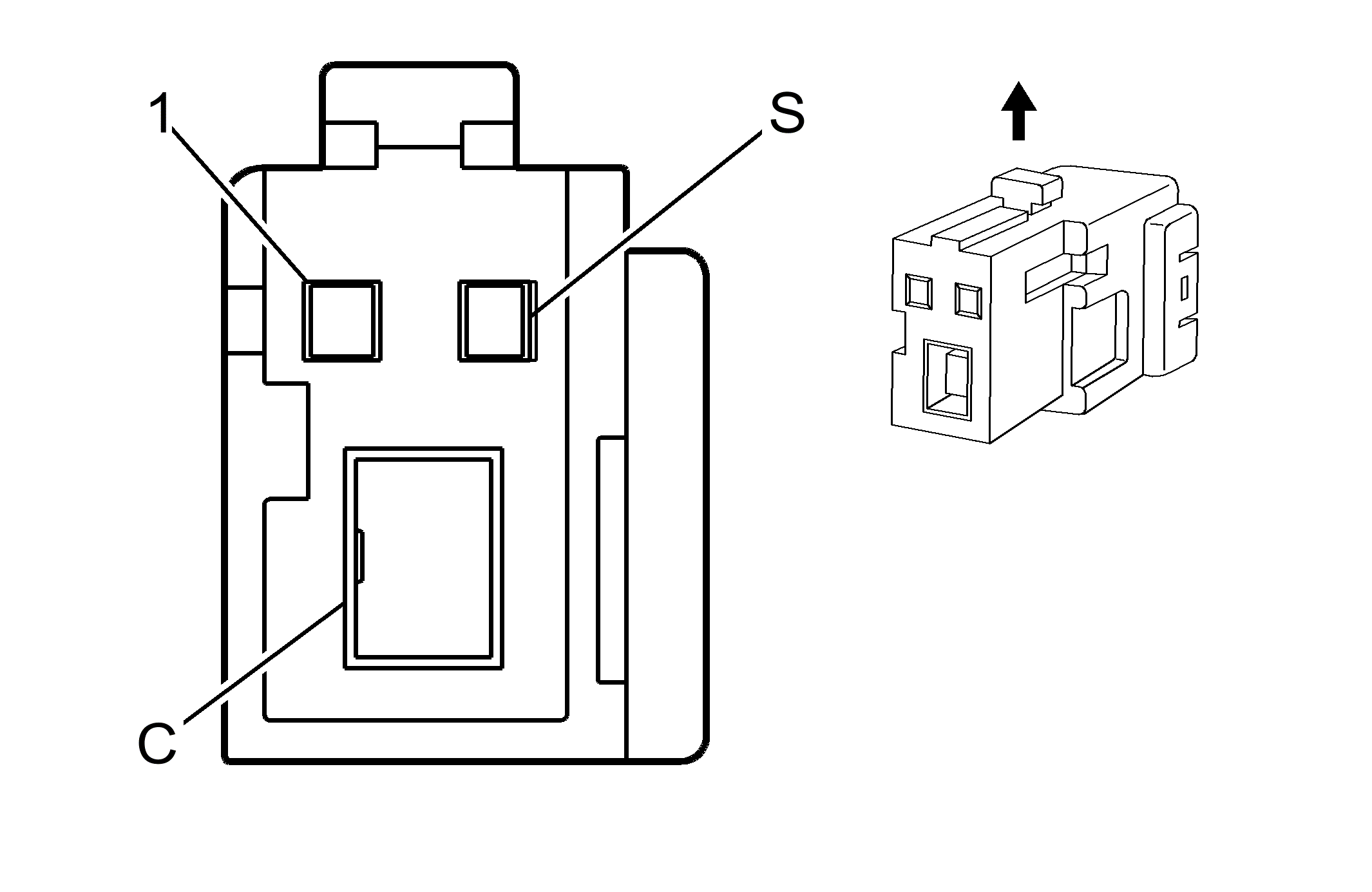

GM1850604Courtesy of GENERAL MOTORS CORP.
GM1850607Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: GT13-1/1PP-HU
  • Service: 15306425
  • Description: 2-Way F GT 150 Series (BK)
 Connector Part Information
  • OEM: 15332130
  • Service: 88986459
  • Description: 2-Way M GT 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
 Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
X214 I/P Harness to Antenna Harness

Pin Wire Circuit Function Pin Wire Circuit Function
1 0.35 RD 7066 Entertainment Remote Enable Signal A 0.35 WH 7066 Entertainment Remote Enable Signal
0.35 RD 7066 Entertainment Remote Enable Signal (U61)
C - - Coax C - - Coax
S - - Not Used S - - Not Used
