X210 I/P Harness to Immobilizer Harness (LY7/LZ4)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

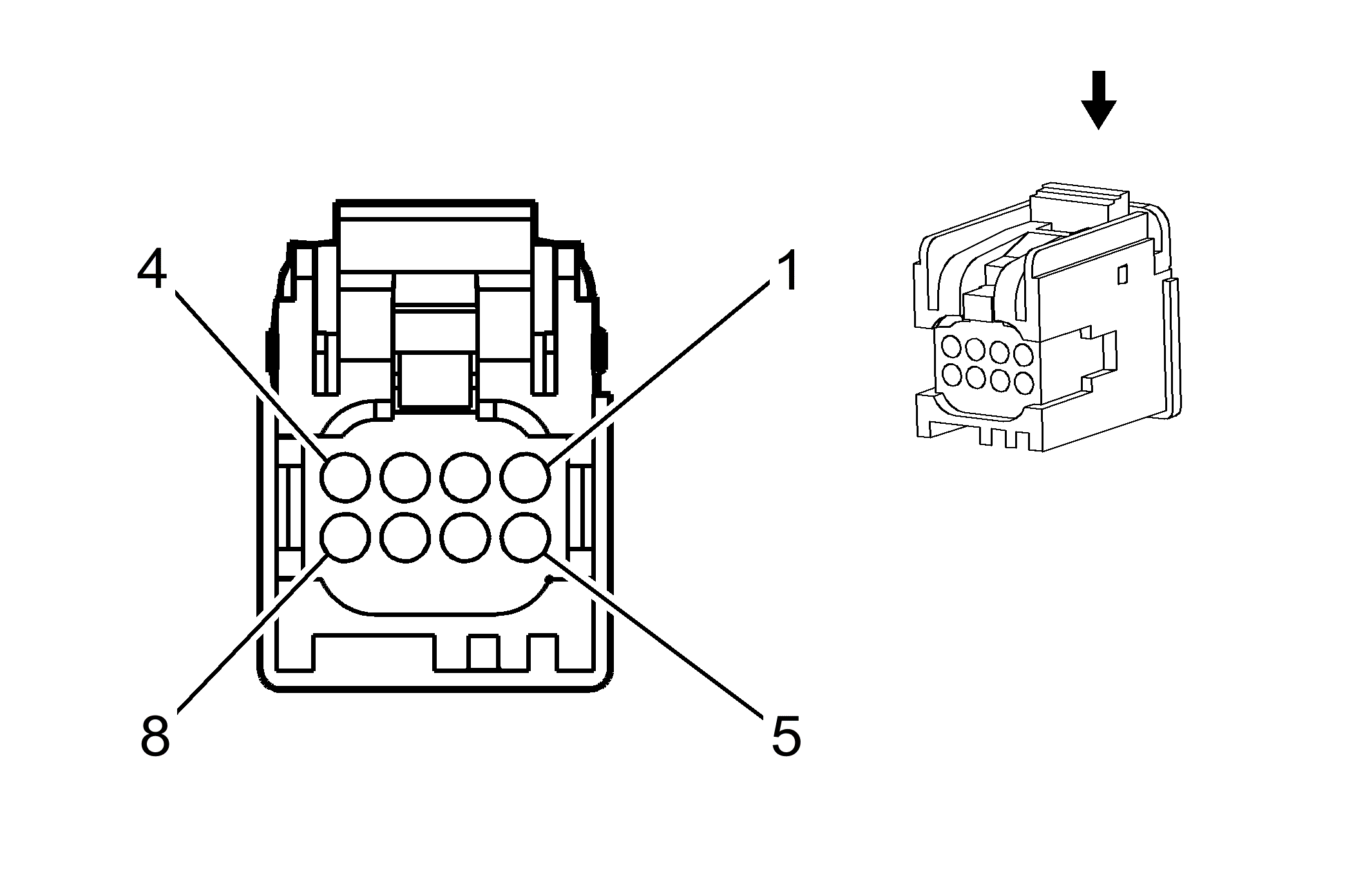

GM1644506Courtesy of GENERAL MOTORS CORP.
GM2074860Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15480081
  • Service: 88988315
  • Description: 8-Way F Micro-Pack 64 (BK)
 Connector Part Information
  • OEM: 7282-9022-30
  • Service: 89047353
  • Description: 8-Way M YESC Kaizen Series (BK)
Terminal Part Information
  • Terminal/Tray: 15359541/4
  • Core/Insulation Crimp: M/M
  • Release Tool/Test Probe: 15381651-2/J-35616-64B (L-BU)
 Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
X210 I/P Harness to Immobilizer Harness (LY7/LZ4)

Pin Wire Circuit Function Pin Wire Circuit Function
A1 0.5 D-GN 5060 Low Speed GMLAN Serial Data A1 0.5 D-GN 5060 Low Speed GMLAN Serial Data
A2 0.5 BK 350 Ground A2 0.5 TN 350 Ground
A3 0.35 YE 43 Accessory Voltage A3 0.35 YE 43 Accessory Voltage
A4 0.35 RD/WH 1740 Battery Positive Voltage A4 0.35 RD/WH 1740 Battery Positive Voltage
A5 0.35 BK 350 Ground A5 0.35 BK 350 Ground
A6 0.35 PU/WH 5905 Key Capture/Column Lock Shift Position Signal A6 0.35 PU/WH 5905 Key Capture/Column Lock Shift Position Signal
A7 0.35 BK 350 Ground A7 0.35 BK 350 Ground
A8 0.35 GY/BK 690 Courtesy Lamp Supply Voltage A8 0.35 GY/BK 690 Courtesy Lamp Supply Voltage
