X204 I/P Harness to Body Harness

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

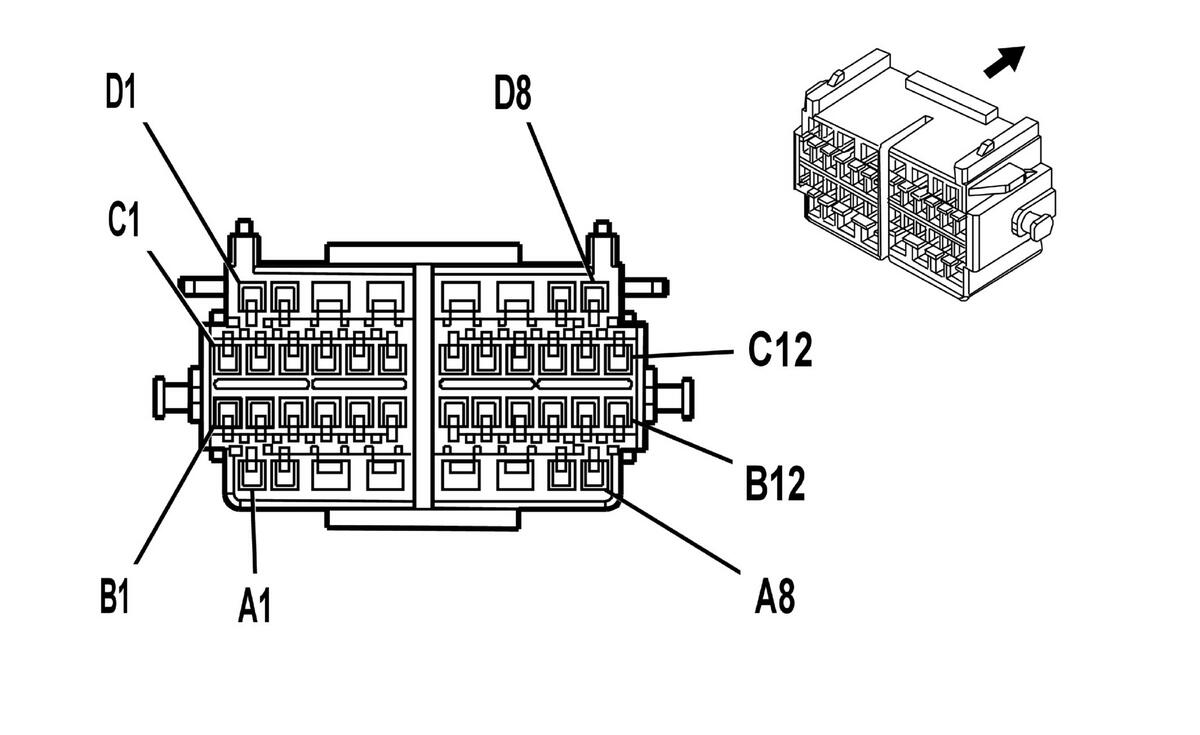

GM1538788Courtesy of GENERAL MOTORS CORP.
GM1715230Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 15448129
  • Service: See Catalog
  • Description: 40-Way F GT 150, 280 Series (BK)
 Connector Part Information
  • OEM: 15475869
  • Service: 88988307
  • Description: 40-Way M GT 150 280 Series (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
 Terminal Part Information
  • Pins: A1-A2, A7-A8, B1-B12, C1-C12, D1-D2, D7-D8
  • Terminal/Tray: 15304702/19
  • Core/Insulation Crimp: Pins: A7-A8, D1-D2, D8 : 2/4
  • Core/Insulation Crimp: Pins: B5-B8, B11, C1, C5-C8, C10 : E/4
  • Core/Insulation Crimp: Pins: A1-A2, B1-B4, B9-B10, B12, C2-C4, C9, C11-C12, D7 : E/C
  • Release Tool/Test Probe: 15315247/J-35616-3 (GY)
  • Pins: A3, A5, D3-D6
  • Terminal/Tray: 15304722/8
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-5 (PU)
  • Pins: A4, A6
  • Terminal/Tray: 15304724/8
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: 15315247/J-35616-5 (PU)
X204 I/P Harness to Body Harness

Pin Wire Circuit Function Pin Wire Circuit Function
A1 0.35 WH 7066 Entertainment Remote Enable Signal (U61) A1 0.35 RD 7066 Entertainment Remote Enable Signal (U61)
A2 0.35 OG 6978 Audio Amplifier Enable (U61) A2 0.35 OG 6978 Audio Amplifier Enable (U61)
A3 0.35 Bare 1792 Drain Wire (U61) A3 0.35 Bare 1792 Drain Wire (U61)
A4 0.5 PK 1501 Driver Heated Seat High/Low Signal (C2B) A4 0.5 PK 1501 Driver Heated Seat High/Low Signal (C2B)
0.5 PK 1501 Driver Heated Seat High/Low Signal (C2B)
A5 0.35 Bare 2099 Drain Wire (U61) A5 0.35 Bare 2099 Drain Wire (U61)
A6 0.5 L-BU 1462 Heated Seat Switch Signal (C2B) A6 0.5 L-BU 1462 Heated Seat Switch Signal (C2B)
0.5 L-BU 1462 Heated Seat Switch Signal (C2B)
A7 0.8 YE 1860 Front Center Speaker Output (+) (U61) A7 0.8 YE 1860 Front Center Speaker Output (+) (U61)
A8 0.8 L-BU 1960 Front Center Speaker Output (-) (U61) A8 0.8 L-BU 1960 Front Center Speaker Output (-) (U61)
B1 - - Not Used B1 - - Not Used
B2 0.35 D-BU 5985 Accessory Wakeup Serial Data B2 0.35 D-BU 5985 Accessory Wakeup Serial Data
B3 0.35 PK 5149 Voice Recognition Audio Signal (U3U) B3 0.35 PK 5149 Voice Recognition Audio Signal (U3U)
B4 0.35 PK/BK 5152 Voice Recognition Audio Low Reference (U3U) B4 0.35 PK/BK 5152 Voice Recognition Audio Low Reference (U3U)
B5 0.5 L-GN/WH 512 Right Front Low Level Audio Signal (+) (U61) B5 0.5 L-GN/WH 512 Right Front Low Level Audio Signal (+) (U61)
B6 0.5 L-GN 1948 Right Front Low Level Audio Signal (-) (U61) B6 0.5 L-GN 1948 Right Front Low Level Audio Signal (-) (U61)
B7 0.5 D-BU 546 Right Rear Low Level Audio Signal (+) (U61) B7 0.5 D-BU 546 Right Rear Low Level Audio Signal (+) (U61)
B8 0.5 TN 1946 Right Rear Low Level Audio Signal (-) (U61) B8 0.5 TN 1946 Right Rear Low Level Audio Signal (-) (U61)
B9-B12 - - Not Used B9-B12 - - Not Used
C1-C2 - - Not Used C1 - - Not Used
C3 0.35 D-BU 658 Cellular Telephone Voice Signal (UE1) C3 0.35 D-BU 658 Cellular Telephone Voice Signal (UE1)
C4 0.35 L-BU/BK 659 Cellular Telephone Voice Low Reference (UE1) C4 0.35 L-BU/BK 659 Cellular Telephone Voice Low Reference (UE1)
C5 0.5 TN 511 Left Front Low Level Audio Signal (+) (U61) C5 0.5 TN 511 Left Front Low Level Audio Signal (+) (U61)
C6 0.5 D-GN 1947 Left Front Low Level Audio Signal (-) (U61) C6 0.5 D-GN 1947 Left Front Low Level Audio Signal (-) (U61)
C7 0.5 BN/WH 599 Left Rear Low Level Audio Signal (+) (U61) C7 0.5 BN/WH 599 Left Rear Low Level Audio Signal (+) (U61)
C8 0.5 BN 1999 Left Rear Low Level Audio Signal (-) (U61) C8 0.5 BN 1999 Left Rear Low Level Audio Signal (-) (U61)
C9-C12 - - Not Used C5 - - Not Used
D1 0.8 L-GN 200 Right Front Speaker Output (+) (UW6) D1 0.8 L-GN 200 Right Front Speaker Output (+) (UW6)
D2 0.8 D-GN 117 Right Front Speaker Output (-) (UW6) D2 0.8 D-GN 117 Right Front Speaker Output (-) (UW6)
D3 0.5 BARE 1782 Drain Wire D3 0.5 BARE 1782 Drain Wire
D4 0.5 BARE 2011 Drain Wire (U61) D4 0.5 BARE 2011 Drain Wire (U61)
D5 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus+ D5 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus+
D6 0.5 TN 2501 High Speed GMLAN Serial Data Bus- D6 0.5 TN 2501 High Speed GMLAN Serial Data Bus-
D7 0.8 D-BU 46 Right Rear Speaker Output (+) (UW6) D7 0.8 D-BU 46 Right Rear Speaker Output (+) (UW6)
D8 0.8 L-BU 115 Right Rear Speaker Output (-) (UW6) D8 0.8 L-BU 115 Right Rear Speaker Output (-) (UW6)
