X200 I/P Harness to Body Harness

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

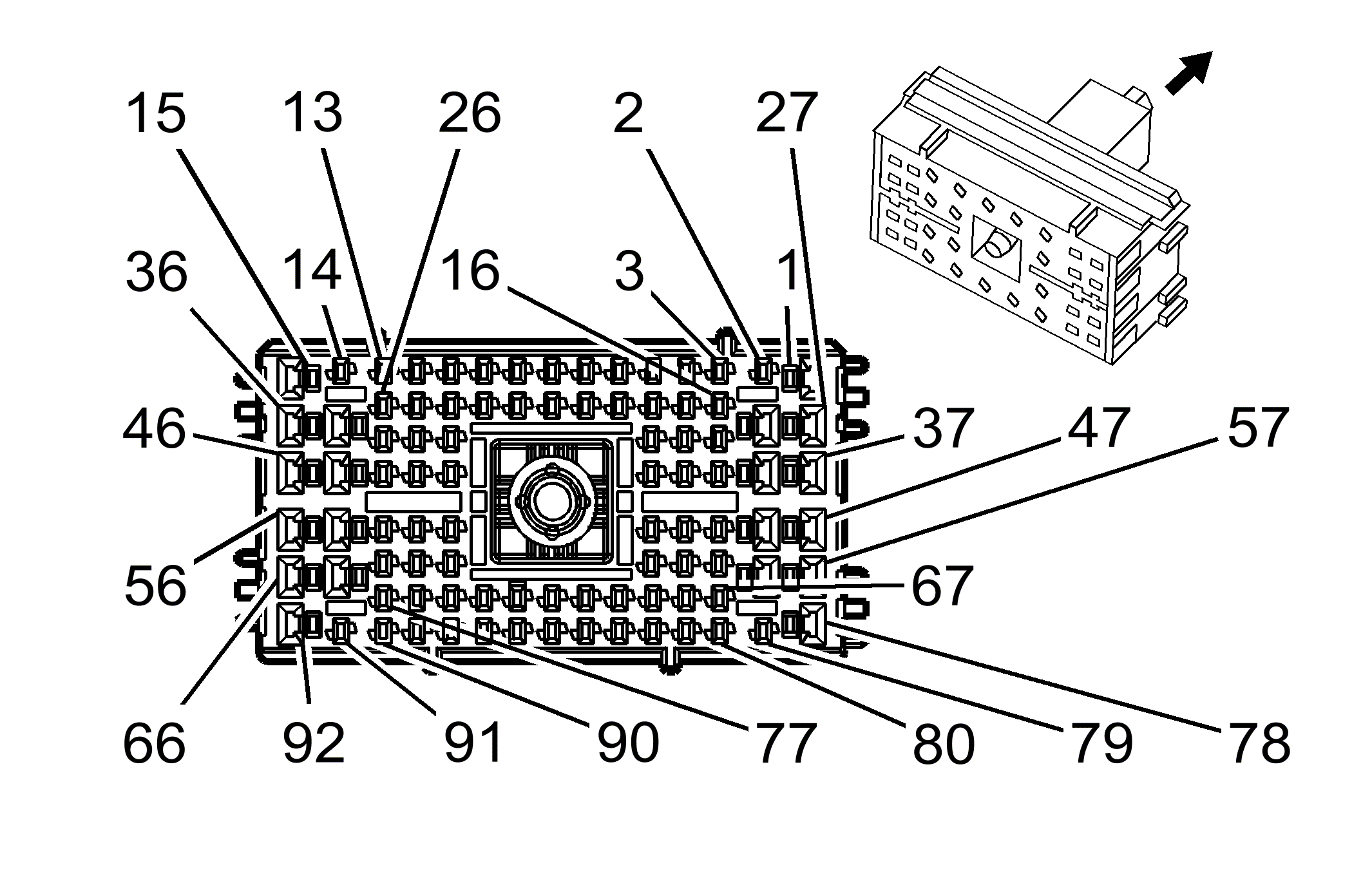

GM1830969Courtesy of GENERAL MOTORS CORP.
GM2001169Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13580434
  • Service: 19178162
  • Description: 92-Way F Hybrid Series, Unsealed (BK)
 Connector Part Information
  • OEM: 13579289
  • Service: 19168038
  • Description: 92-Way M Hybrid Mixed (BK)
Terminal Part Information
  • Pins: 4-5, 8-8, 11-14, 20-23, 29, 33, 39, 41-44, 49-50, 52-54, 62-64, 70-72, 79-81, 83-84, 88-89, 91
  • Terminal/Tray: 1241374-1/17
  • Core/Insulation Crimp: Pins: 11-14 : E/C
  • Core/Insulation Crimp: Pins: 4-5, 7-8, 20, 23, 29, 33, 41-44, 49-50, 52-53, 62-63, 70-72, 79, 91 : See Terminal Repair Kit
  • Core/Insulation Crimp: Pins: 21-22, 54, 64, 80-81, 83-84, 88-89 : E/2
  • Core/Insulation Crimp: Pins: 39 : 2/C
  • Release Tool/Test Probe: J-38125-557/J-35616-14 (GN)
  • Pins: 27-28, 47, 78, 85-86, 92
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
 Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
X200 I/P Harness to Body Harness

Pin Wire Circuit Function Pin Wire Circuit Function
1-3 - - Not Used 1-3 - - Not Used
4 0.35 TN/WH 372 Remote Radio Audio Output (-) (U2K) 4 0.35 TN/WH 372 Remote Radio Audio Output (-) (U2K)
5 0.35 BN/WH 367 Left Audio Signal (+) (U2K) 5 0.35 BN/WH 367 Left Audio Signal (+) (U2K)
6 - - Not Used 6 - - Not Used
7 0.35 D-GN/WH 368 Right Audio Signal (+) (U2K) 7 0.35 D-GN/WH 368 Right Audio Signal (+) (U2K)
8 0.35 GY 388 Remote Radio Right Audio Signal (U2K) 8 0.35 GY 388 Remote Radio Right Audio Signal (U2K)
9-10 - - Not Used 9-10 - - Not Used
11 0.8 BN 199 Left Rear Speaker Output (+) (UW6) 11 0.8 BN 199 Left Rear Speaker Output (+) (UW6)
12 0.8 YE 116 Left Rear Speaker Output (-) (UW6) 12 0.8 YE 116 Left Rear Speaker Output (-) (UW6)
13 0.8 TN 201 Left Front Speaker Output (+) (UW6) 13 0.8 TN 201 Left Front Speaker Output (+) (UW6)
14 0.8 GY 118 Left Front Speaker Output (-) (UW6) 14 0.8 GY 118 Left Front Speaker Output (-) (UW6)
15-16 - - Not Used 15-16 - - Not Used
17 0.5 D-BU 3424 Accessory Wakeup (HP5) 17 0.5 D-BU 3424 Accessory Wakeup (HP5)
18 0.5 TN 3425 Hybrid Controls Wakeup (HP5) 18 0.5 TN 3425 Hybrid Controls Wakeup (HP5)
19 - - Not Used 19 - - Not Used
20 0.35 GY 391 Rear Window Wiper Switch Signal 20 0.35 GY 391 Rear Window Wiper Switch Signal
21 0.5 D-GN/WH 636 Ambient Air Temperature Sensor Signal 21 0.5 D-GN/WH 636 Ambient Air Temperature Sensor Signal
22 0.5 YE 61 Low Reference 22 0.5 YE 61 Low Reference
0.5 YE 61 Low Reference (HP5) 0.5 YE 61 Low Reference (HP5)
23 0.35 WH 193 Rear Defog Relay Control 23 0.35 WH 193 Rear Defog Relay Control
24 0.5 D-GN 3423 High Voltage Circuit Impact Detection Sensor Signal - Rear (HP5) 24 0.5 D-GN 3423 High Voltage Circuit Impact Detection Sensor Signal - Rear (HP5)
25 0.5 YE/BK 3422 Low Reference (HP5) 25 0.5 YE/BK 3422 Low Reference (HP5)
26 - - Not Used 26 - - Not Used
27 0.5 OG 1732 Courtesy Lamps Supply Voltage 27 0.5 OG 1732 Courtesy Lamps Supply Voltage
28 0.35 BARE 1573 Drain Wire 28 0.35 BARE 1573 Drain Wire
29 0.35 YE 18 Left Rear Stop/Turn Lamp Supply Voltage 29 0.5 YE 18 Left Rear Stop/Turn Lamp Supply Voltage
30 0.5 D-BU 3427 High Voltage Circuit Impact Detection Sensor Signal - Front (HP5) 30 0.5 D-BU 3427 High Voltage Circuit Impact Detection Sensor Signal - Front (HP5)
31 0.5L-BU 3426 Low Reference (HP5) 31 0.5L-BU 3426 Low Reference (HP5)
32 0.5 PK 2014 Heater Coolant Pump Relay Control (HP5) 32 0.5 PK 2014 Heater Coolant Pump Relay Control (HP5)
33 0.35 PU 333 Brake Fluid Level Sensor Signal 33 0.35 PU 333 Brake Fluid Level Sensor Signal
34-38 - - Not Used 34-38 - - Not Used
39 1 BK/WH 451 Ground 39 1 BK/WH 451 Ground
40 0.5 RD/WH 5340 Battery Positive Voltage (HP5) 40 0.5 RD/WH 5340 Battery Positive Voltage (HP5)
41 0.35 BN 1271 Low Reference 41 0.35 BN 1271 Low Reference
42 0.35 WH/BK 1164 5-Volt Reference 42 0.35 WH/BK 1164 5-Volt Reference
43 0.35 L-BU 1162 APP Sensor 2 Signal 43 0.35 L-BU 1162 APP Sensor 2 Signal
44 0.35 TN 1274 5-Volt Reference 44 0.35 TN 1274 5-Volt Reference
45-46 - - Not Used 45-46 - - Not Used
47 3 RD/WH 3040 Battery Positive Voltage 47 3 RD/WH 3040 Battery Positive Voltage
48 - - Not Used 48 - - Not Used
49 0.35 PU 1272 Low Reference 49 0.35 PU 1272 Low Reference
50 0.35 D-BU 1161 APP Sensor 1 Signal 50 0.35 D-BU 1161 APP Sensor 1 Signal
51 - - Not Used 51 - - Not Used
52 0.35 TN/WH 99 Windshield Washer Fluid Level Signal 52 0.35 TN/WH 99 Windshield Washer Fluid Level Signal
53 0.35 RD/WH 740 Battery Positive Voltage 53 0.35 RD/WH 740 Battery Positive Voltage
54 0.5 RD/WH 740 Battery Positive Voltage 54 0.5 RD/WH 740 Battery Positive Voltage
0.5 RD/WH 740 Battery Positive Voltage (-HP5)
55-59 - - Not Used 5559 - - Not Used
60 0.5 D-BU 6105 High Speed GMLAN Serial Data (+) (2) (HP5) 60 0.5 D-BU 6105 High Speed GMLAN Serial Data (+) (2) (HP5)
61 0.5 L-BU 6106 High Speed GMLAN Serial Data (-) (2) (HP5) 61 0.5 L-BU 6106 High Speed GMLAN Serial Data (-) (2) (HP5)
62 0.35 PU 328 Interior Lamp Switch Voltage Supply Circuit 62 0.35 PU 328 Interior Lamp Switch Voltage Supply Circuit
63 0.35 BN 4 Accessory Voltage 63 0.35 BN 4 Accessory Voltage
0.35 BN 4 Accessory Voltage (CE1) (-HP5)
64 0.5 D-GN/WH 817 Vehicle Speed Signal (U3U) 64 0.35 D-GN/WH 817 Vehicle Speed Signal (U3U)
65-67 - - Not Used 65-67 - - Not Used
68 0.5 D-BU 6105 High Speed GMLAN Serial Data (+) (2) (HP5) 68 0.5 D-BU 6105 High Speed GMLAN Serial Data (+) (2) (HP5)
69 0.5 L-BU 6106 High Speed GMLAN Serial Data (-) (2) (HP5) 69 0.5 L-BU 6106 High Speed GMLAN Serial Data (-) (2) (HP5)
70-73 - - Not Used 70-73 - - Not Used
74 0.5 BN 5382 Low Reference (HP5) 74 0.5 BN 5382 Low Reference (HP5)
75 0.5 GY 3335 5 V Reference (HP5) 75 0.5 GY 3335 5 V Reference (HP5)
76 0.5 L-BU 3334 Brake Master Cylinder Piston Position Sensor Signal A (HP5) 76 0.5 L-BU 3334 Brake Master Cylinder Piston Position Sensor Signal A (HP5)
77 0.5 PU 3333 Brake Master Cylinder Piston Position Sensor Signal B (HP5) 77 0.5 PU 3333 Brake Master Cylinder Piston Position Sensor Signal B (HP5)
78 0.35 GY/BK 690 Courtesy Lamp Supply Voltage (LCS/LY7/LZ4) 78 0.35 GY/BK 690 Courtesy Lamp Supply Voltage (LCS/LY7/LZ4)
79 0.35 BN/WH 419 MIL Control 79 0.35 BN/WH 419 MIL Control
80 0.5 WH/BK 6436 CAN Bus Low Terminated Serial Data (LY7/LZ4) 80 0.5 WH/BK 6436 CAN Bus Low Terminated Serial Data (LY7/LZ4)
80 0.35 TN 6048 Steering Angle Sensor - Index (HP5) 80 0.35 TN 6048 Steering Angle Sensor - Index (HP5)
81 0.5 BN/WH 6437 CAN Bus High Terminated Serial Data (LY7/LZ4) 81 0.5 BN/WH 6437 CAN Bus High Terminated Serial Data (LY7/LZ4)
81 0.5 D-BU 6047 Steering Angle Sensor - Phase B (HP5) 81 0.5 D-BU 6047 Steering Angle Sensor - Phase B (HP5)
82 0.35 YE 6046 Steering Angle Sensor - Phase A (HP5) 82 0.35 YE 6046 Steering Angle Sensor - Phase A (HP5)
83 0.5 OG/BK 6045 Steering Angle Sensor Low Reference (LCS/LY7/LZ4) 83 0.5 OG/BK 6045 Steering Angle Sensor Low Reference (LCS/LY7/LZ4)
84 0.5 GY 6044 Steering Angle Sensor 5-Volt Reference (LCS/LY7/LZ4) 84 0.5 GY 6044 Steering Angle Sensor 5-Volt Reference (LCS/LY7/LZ4)
85 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus+ 85 0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus+
0.5 TN/BK 2500 High Speed GMLAN Serial Data Bus+
86 0.5 TN 2501 High Speed GMLAN Serial Data Bus- 86 0.5 TN 2501 High Speed GMLAN Serial Data Bus-
0.5 TN 2501 High Speed GMLAN Serial Data Bus-
87 0.35 L-GN 6043 Steering Angle Sensor Signal (HP5) 87 0.35 L-GN 6043 Steering Angle Sensor Signal (HP5)
88 0.5 TN/WH 6433 CAN Bus High Serial Data (LY7/LZ4) 88 0.5 TN/WH 6433 CAN Bus High Serial Data (LY7/LZ4)
89 0.5 L-GN/BK 6432 CAN Bus Low Serial Data (LY7/LZ4) 89 0.5 L-GN/BK 6432 CAN Bus Low Serial Data (LY7/LZ4)
90 - - Not Used 90 - - Not Used
91 0.35 PK 439 Ignition 1 Voltage 91 0.35 PK 439 Ignition 1 Voltage
92 0.35 L-BU 5986 Serial Data Communication Enable 92 0.35 L-BU 5986 Serial Data Communication Enable
0.35 L-BU 5986 Serial Data Communication Enable (LAT/LCS) 92 0.35 L-BU 5986 Serial Data Communication Enable (LAT/LCS)
