X112 Engine Harness to Transmission Harness (ME7/MN5)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

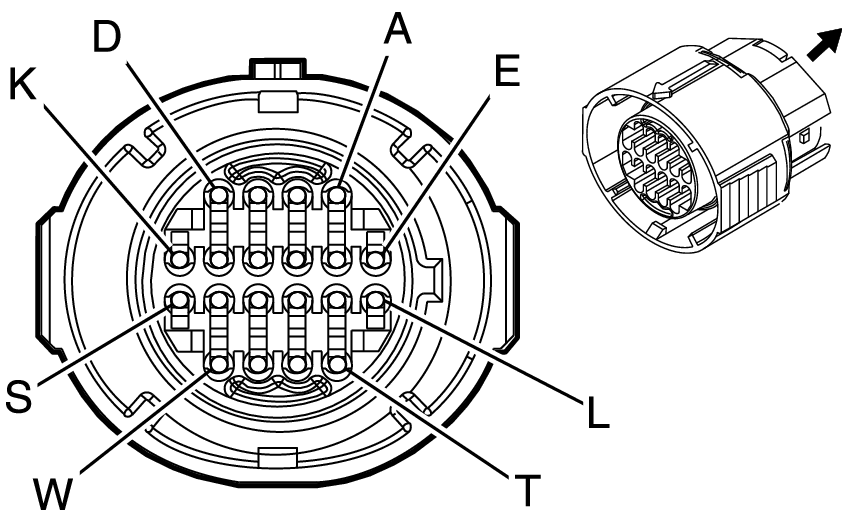

GM1922568Courtesy of GENERAL MOTORS CORP.

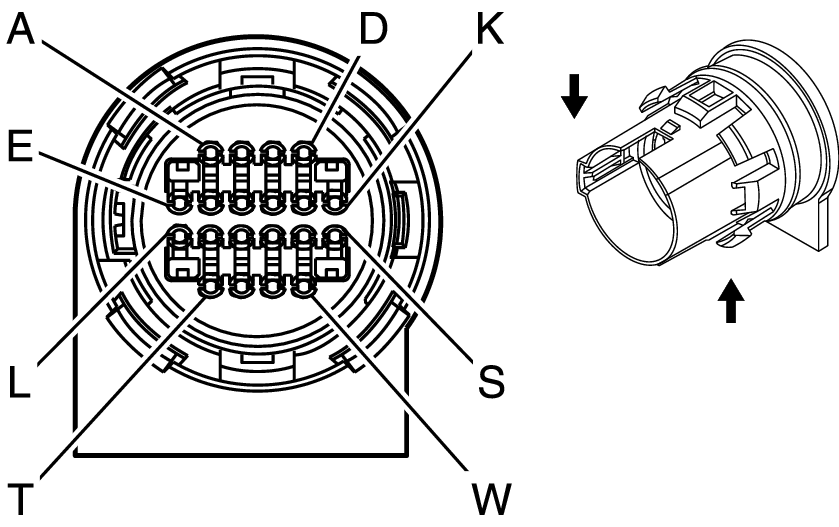

GM1922569Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 13603424
  • Service: 89047246
  • Description: 20-Way F Micro-Pack 100W Series Sealed (BK)
 Connector Part Information
  • OEM: 15443076
  • Service: See Catalog
  • Description: 20-Way M Micro-Pack 100W Series Sealed (BK)
Terminal Part Information
  • Pins: See Terminal Repair Kit
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
 Terminal Part Information
  • Pins: See Terminal Repair Kit
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
X112 Engine Harness to Transmission Harness (ME7/MN5)

Pin Wire Circuit Function Pin Wire Circuit Function
A 0.35 L-GN 1222 1-2 Shift Solenoid Valve Control A 0.5 L-GN 1222 1-2 Shift Solenoid Valve Control
B 0.35 YE/BK 1223 2-3 Shift Solenoid Valve Control B 0.5 YE 1223 2-3 Shift Solenoid Valve Control
C 0.35 OG/BK 1228 PC Solenoid Valve High Control (Sol. A) C 0.5 PU 1228 PC Solenoid Valve High Control (Sol. A)
D 0.35 L-BU/WH 1229 PC Solenoid Valve Low Control (Sol. A) D 0.5 L-BU 1229 PC Solenoid Valve Low Control (Sol. A)
E 0.5 PK 639 Ignition 1 Voltage E 0.5 RD 839 Ignition 1 Voltage
F-K - - Not Available F-K - - Not Available
L 0.35 YE/BK 1227 TFT Sensor Signal L 0.5 BN 1227 TFT Sensor Signal
M 0.35 TN 2762 Low Reference M 0.5 GY 452 Low Reference
N - - Not Used N - - Not Used
P 0.35 OG 1226 Transmission Fluid Pressure Switch Signal C P 0.5 OG 1226 Transmission Fluid Pressure Switch Signal C
R 0.35 D-BU 1225 Transmission Fluid Pressure Switch Signal B R 0.5 D-BU 1225 Transmission Fluid Pressure Switch Signal B
S 0.35 OG/BK 1230 AT ISS High Signal S 0.5 BK 1230 AT ISS High Signal
T 0.35 TN/BK 422 TCC PWM Solenoid Valve Control T 0.5 TN 418 TCC PWM Solenoid Valve Control
U 0.35 YE 657 TCC Release Switch Signal U 0.5 WH 1804 TCC Release Switch Signal
V 0.35 D-BU/WH 1231 AT ISS Low Signal V 0.5 D-GN 1231 AT ISS Low Signal
W - - Not Available W - - Not Available
