X110 Engine Harness to Fuel Injector Harness (LCS)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
GM1986157Courtesy of GENERAL MOTORS CORP.

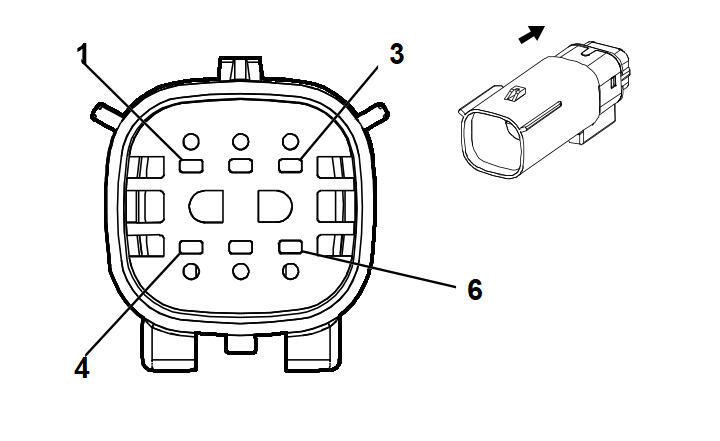

GM1986159Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 33472-0606
  • Service: 88986255
  • Description: 6-Way F MX 150 Series Sealed (BK)
 Connector Part Information
  • OEM: 33482-0601
  • Service: 15326840
  • Description: 6-Way M MX 150 Series Sealed (BK)
Terminal Part Information
  • Pins: A-H
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: Pins:1-6 E/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
 Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
X110 Engine Harness to Fuel Injector Harness (LCS)

Pin Wire Circuit Function Pin Wire Circuit Function
1 1 D-BU 4802 Direct Fuel Injector (DFI) High Voltage Control Cylinder 2 1 1 TN 4802 Direct Fuel Injector (DFI) High Voltage Control Cylinder 2
2 1 D-BU/WH 4902 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 2 2 1 D-BU/WH 4902 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 2
3 1 L-BU 4804 Direct Fuel Injector (DFI) High Voltage Control Cylinder 4 3 1 TN 4804 Direct Fuel Injector (DFI) High Voltage Control Cylinder 4
4 1 L-BU/WH 4904 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 4 4 1 BK 4904 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 4
5 1 PU 4806 Direct Fuel Injector (DFI) High Voltage Control Cylinder 6 5 TN 4806 Direct Fuel Injector (DFI) High Voltage Control Cylinder 6
6 1 PU/WH 4906 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 6 6 1 BK 4906 Direct Fuel Injector (DFI) High Voltage Supply Cylinder 6
