Oil Pan Disassemble

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Oil Pan Drain Plug
    GM1866888Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil pan drain plug.

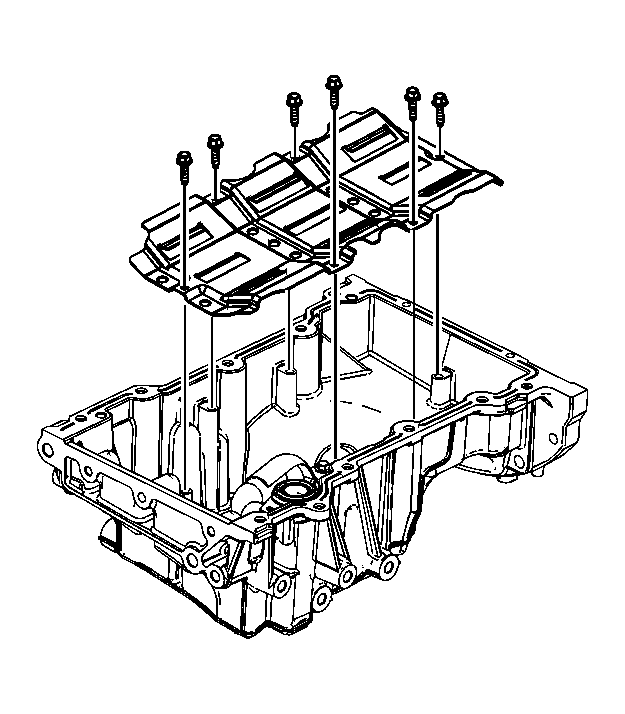

    2. Fig 2: Oil Pan Scraper
    GM1866889Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil pan scraper bolts.
  3. Remove the oil pan scraper.
    4. Fig 3: Oil Suction Pipe
    GM1866890Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil suction pipe bolts.
  5. Remove the oil suction pipe.
    6. Fig 4: Oil Suction Tube Seal
    GM1866891Courtesy of GENERAL MOTORS CORP.
  6. Remove the oil suction tube seal from the oil suction tube. Discard the oil suction tube seal.
