Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

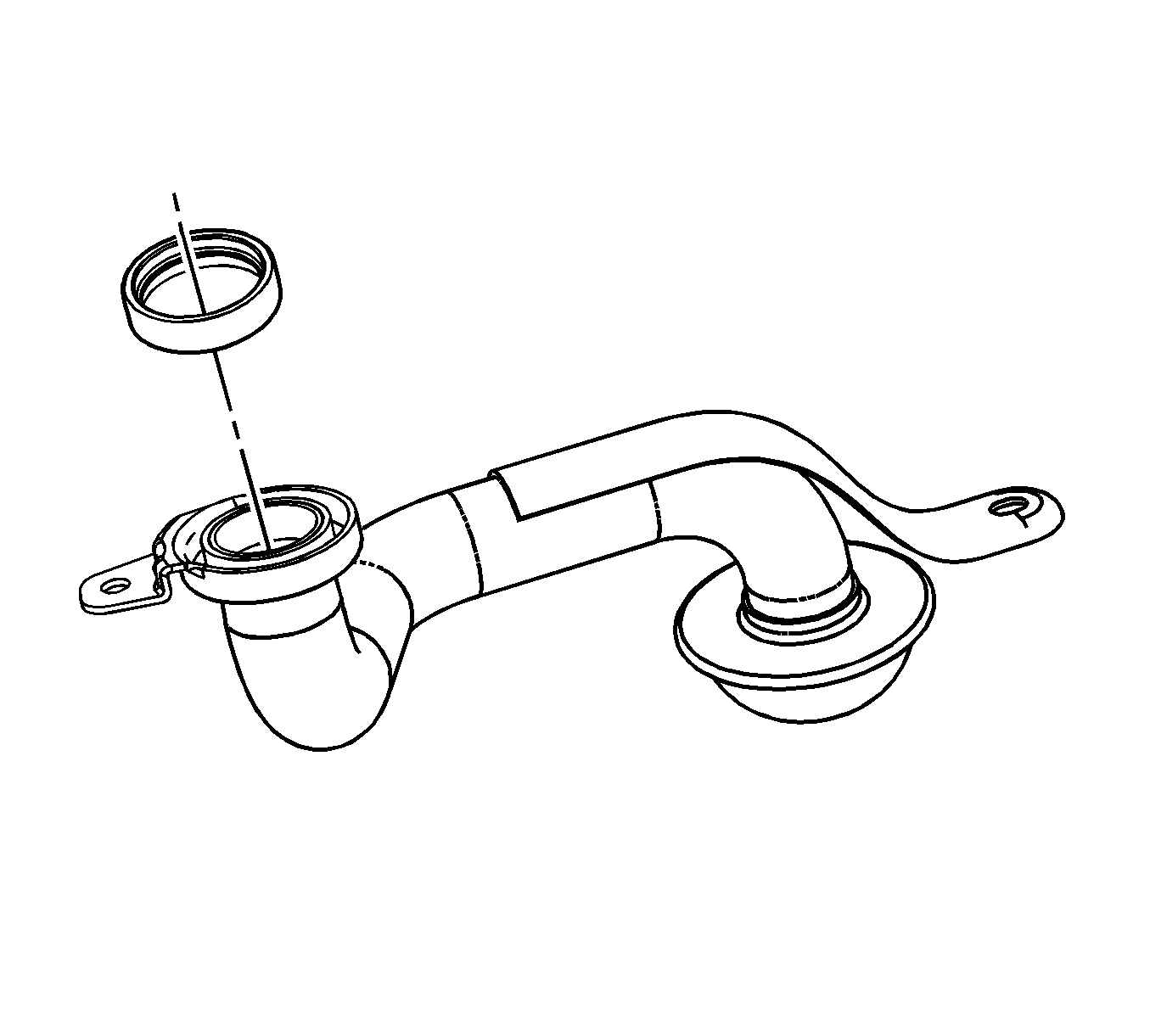

    Fig 1: Locating Oil Suction Tube Seal
    GM1832195Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW oil suction tube seal onto the oil suction tube. DO NOT reuse the old oil suction tube seal.

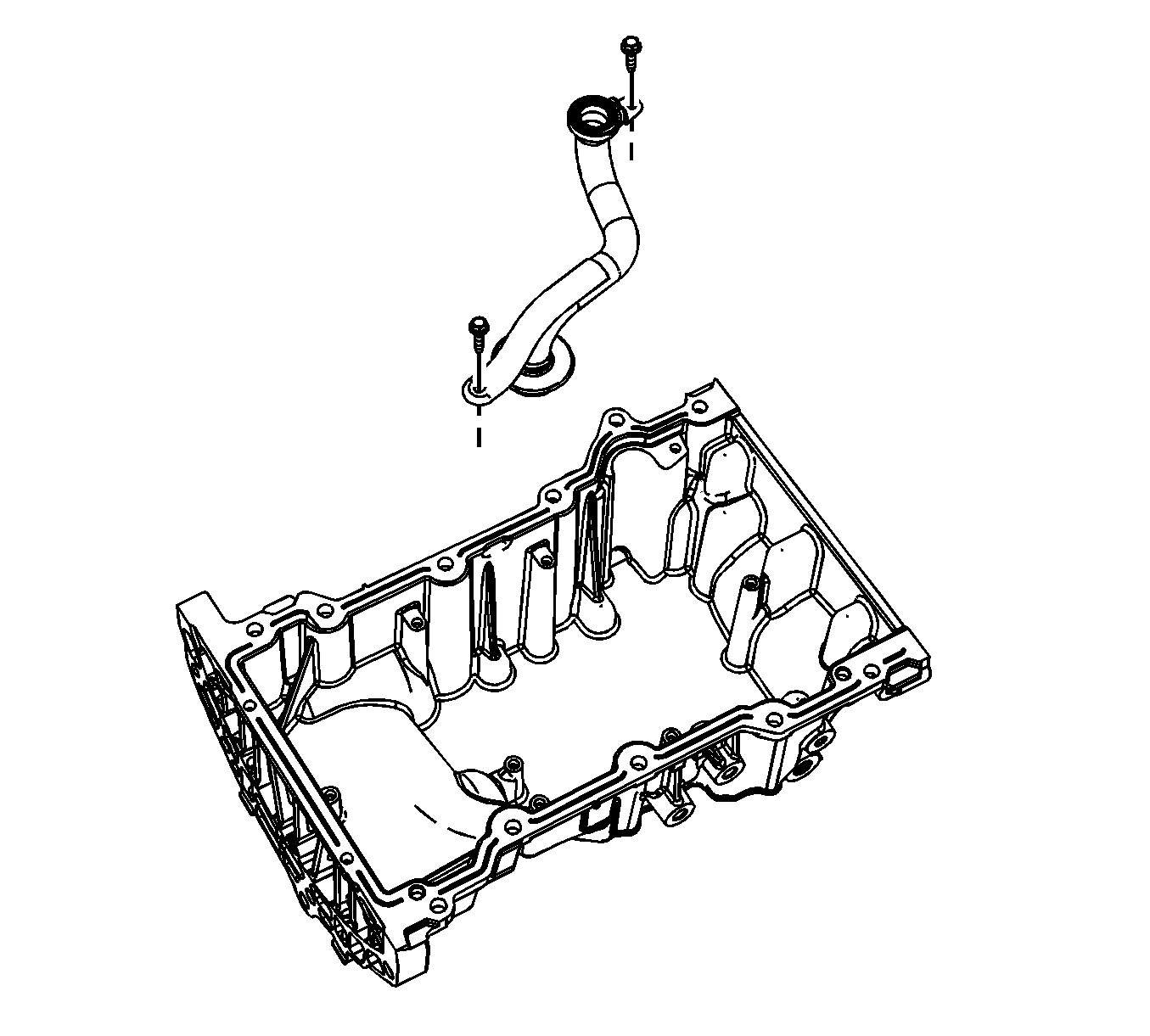

    2. Fig 2: View Of Oil Suction Pipe & Bolts
    GM1832076Courtesy of GENERAL MOTORS CORP.
  2. Install the oil suction pipe.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the oil suction pipe bolts and tighten to 10 N.m (89 lb in).
    4. Fig 3: Identifying Oil Pan Scraper Bolts
    GM1832074Courtesy of GENERAL MOTORS CORP.
  4. Install the oil pan scraper.
  5. Install the oil pan scraper bolts and tighten to 10 N.m (89 lb in).
  6. Install the oil pan. Refer to Oil Pan Replacement .
