Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

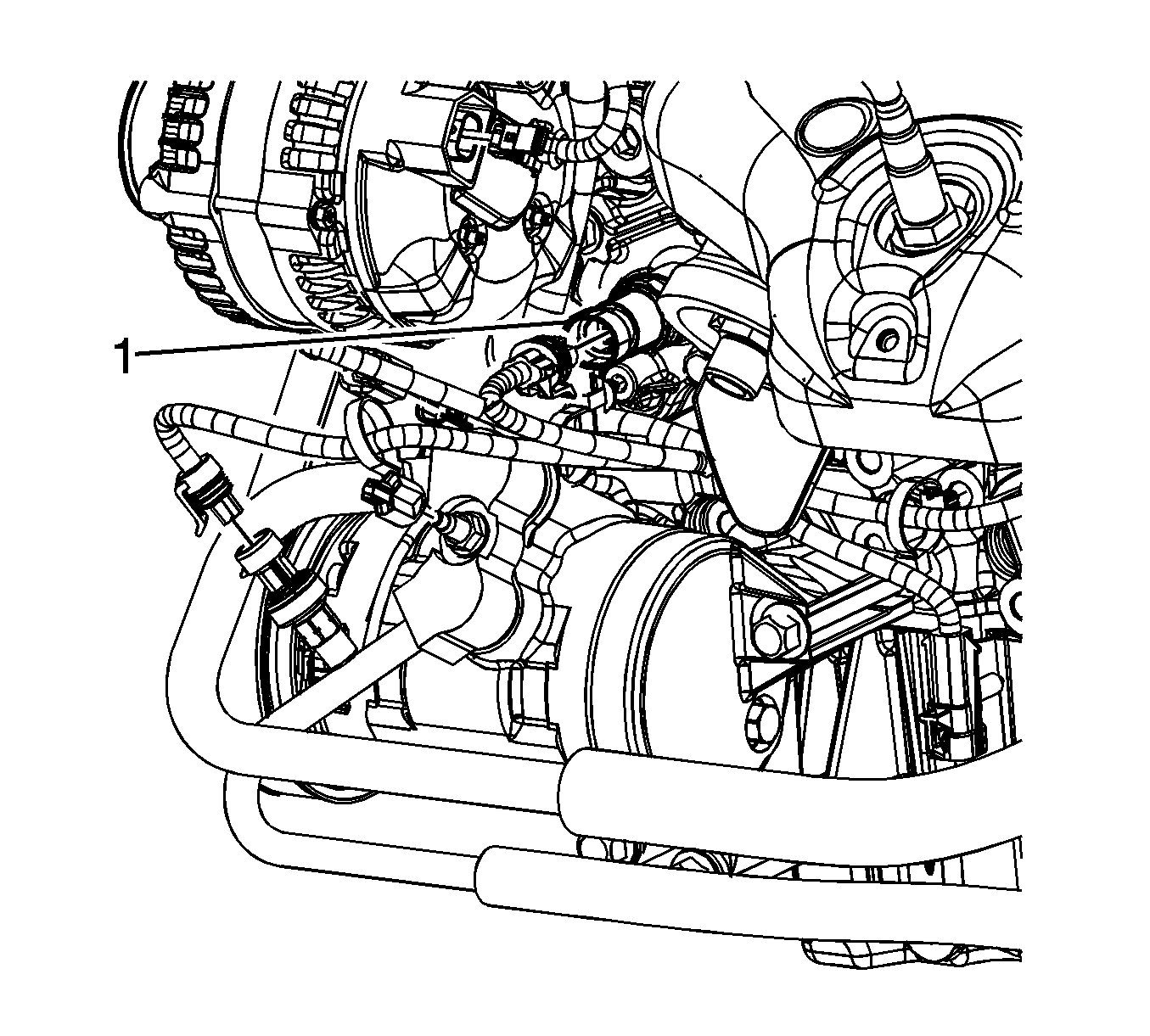

    Fig 1: Identifying Oil Pressure Sensor
    GM1832048Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Component Fastener Tightening Caution .
  1. Install the oil pressure sensor (1) and tighten to 20 N.m (15 lb ft).
  2. Connect the oil pressure sensor electrical connector.
