Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

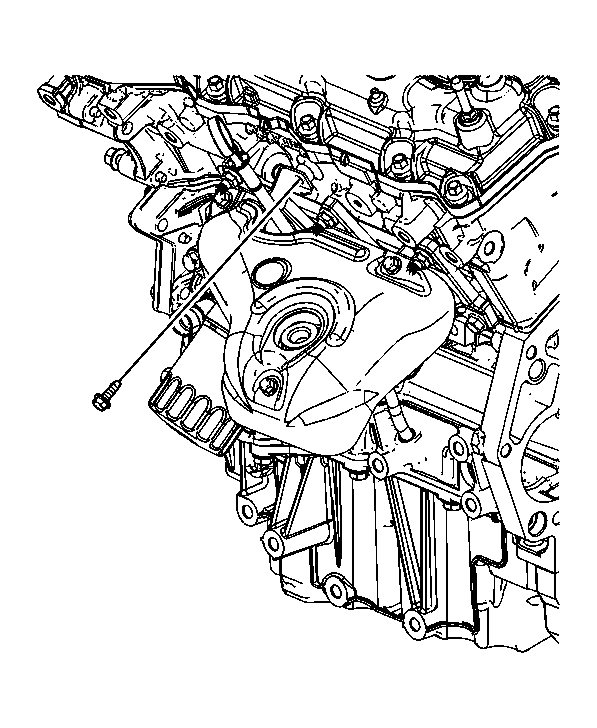

    Fig 1: Identifying Oil Level Indicator Tube Bracket Bolt
    GM1828664Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil level indicator tube bracket bolt.

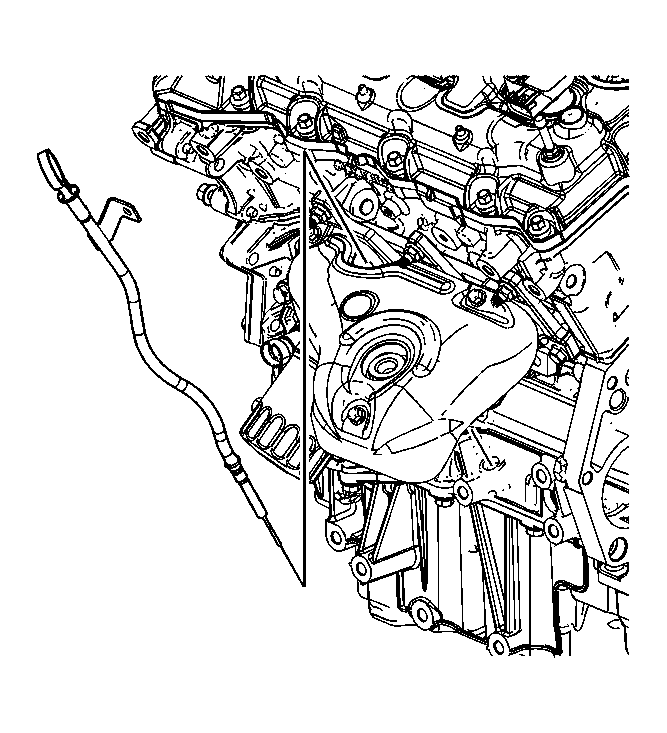

    2. Fig 2: Identifying Oil Level Indicator & Tube
    GM1828665Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil level indicator and tube by sliding the tube out from the lower crankcase hole.
    3. Fig 3: View Of Oil Level Indicator Tube O-Ring
    GM1583980Courtesy of GENERAL MOTORS CORP.
  3. Remove and discard the O-ring from the oil level indicator tube.
