Exhaust Manifold Removal - Left Side

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

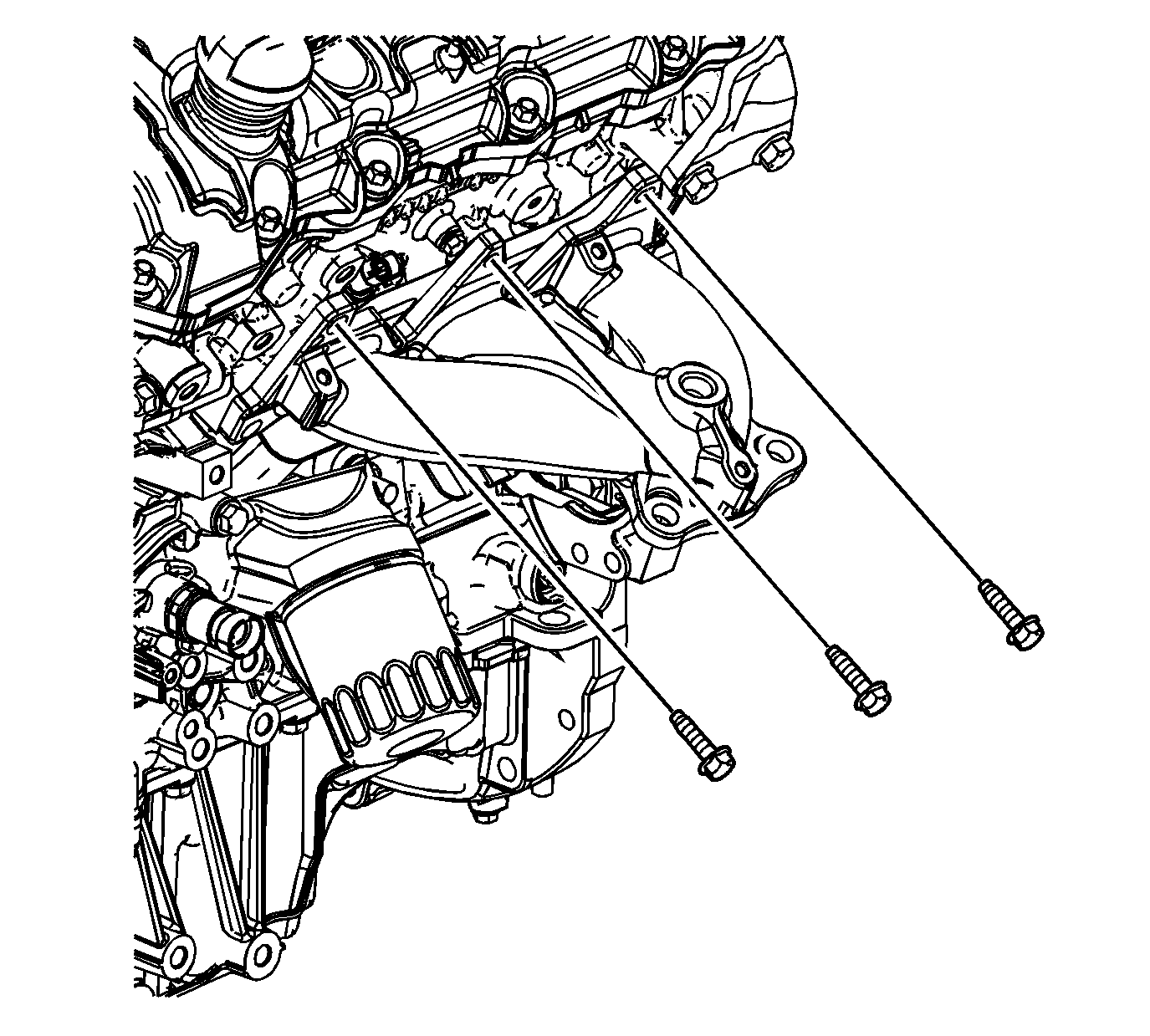

Fig 1: Locating Exhaust Manifold Heat Shield Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the left exhaust manifold heat shield bolts.

Fig 2: Removing/Installing Exhaust Manifold Heat Shield

Courtesy of GENERAL MOTORS CORP.

Remove the left exhaust manifold heat shield.

Fig 3: Identifying Exhaust Manifold Lower Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the left exhaust manifold lower bolts from the left cylinder head.

Fig 4: Identifying Exhaust Manifold Upper Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the left exhaust manifold upper bolts from the left cylinder head.

Fig 5: Removing/Installing Exhaust Manifold

Courtesy of GENERAL MOTORS CORP.

Remove the left exhaust manifold.

Fig 6: View Of Exhaust Manifold Gasket

Courtesy of GENERAL MOTORS CORP.

Remove and discard the left exhaust manifold gasket.
