Camshaft Cover Removal - Right Side

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Ignition Coil Bolts
    GM1864421Courtesy of GENERAL MOTORS CORP.
  1. Remove the ignition coil bolts.
    2. Fig 2: View Of Ignition Coils
    GM1864424Courtesy of GENERAL MOTORS CORP.
  2. Remove the ignition coils.

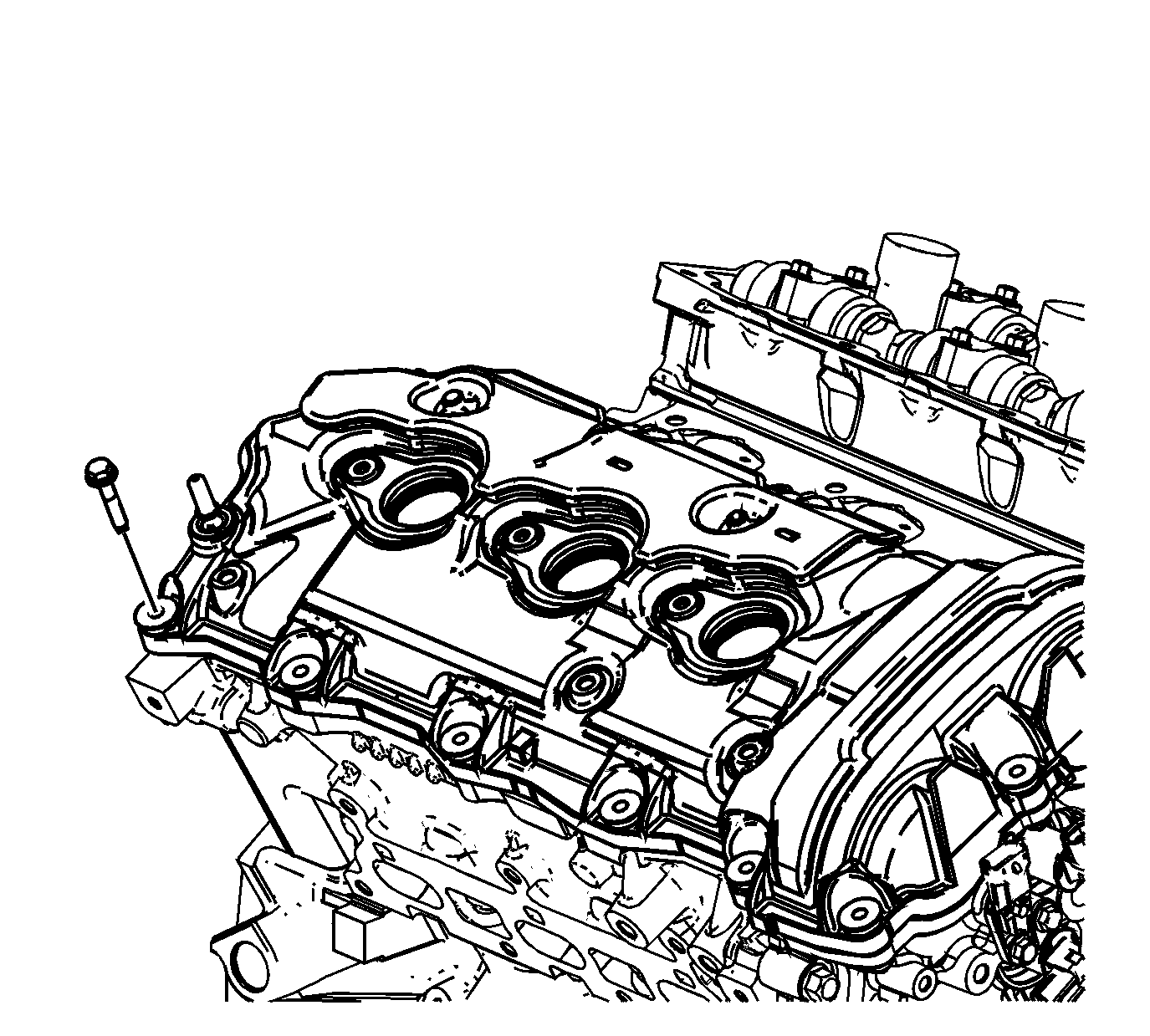

    3. Fig 3: View Of Right Camshaft Cover Bolts
    GM1864428Courtesy of GENERAL MOTORS CORP.
  3. Remove the right camshaft cover bolts.
  4. Remove and discard the camshaft cover grommets and camshaft cover bolts if they are serviced with the grommet.

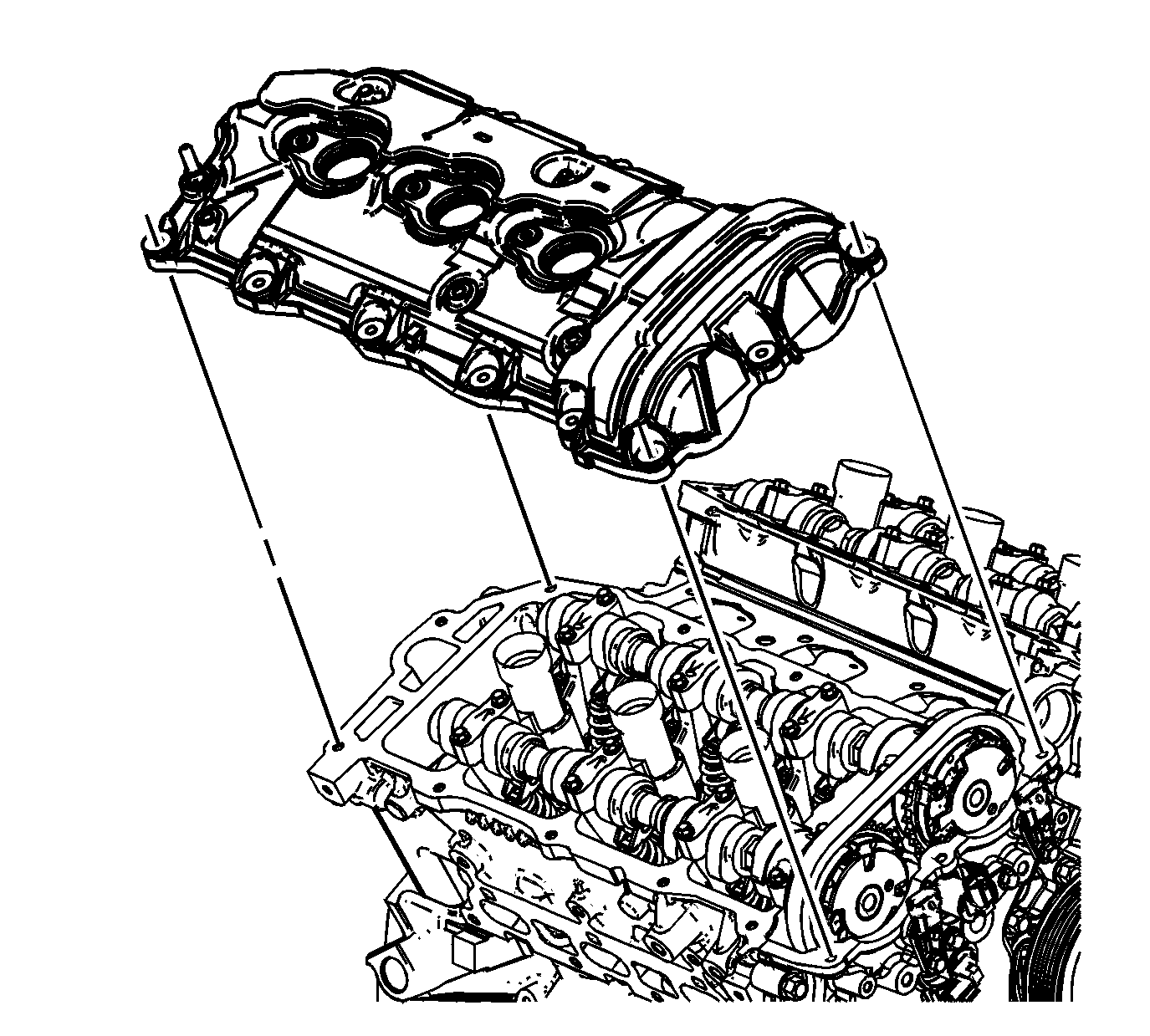

    5. Fig 4: Identifying Right Camshaft Cover
    GM1864429Courtesy of GENERAL MOTORS CORP.
  5. Remove the right camshaft cover from the right cylinder head.
