Radiator Surge Tank Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

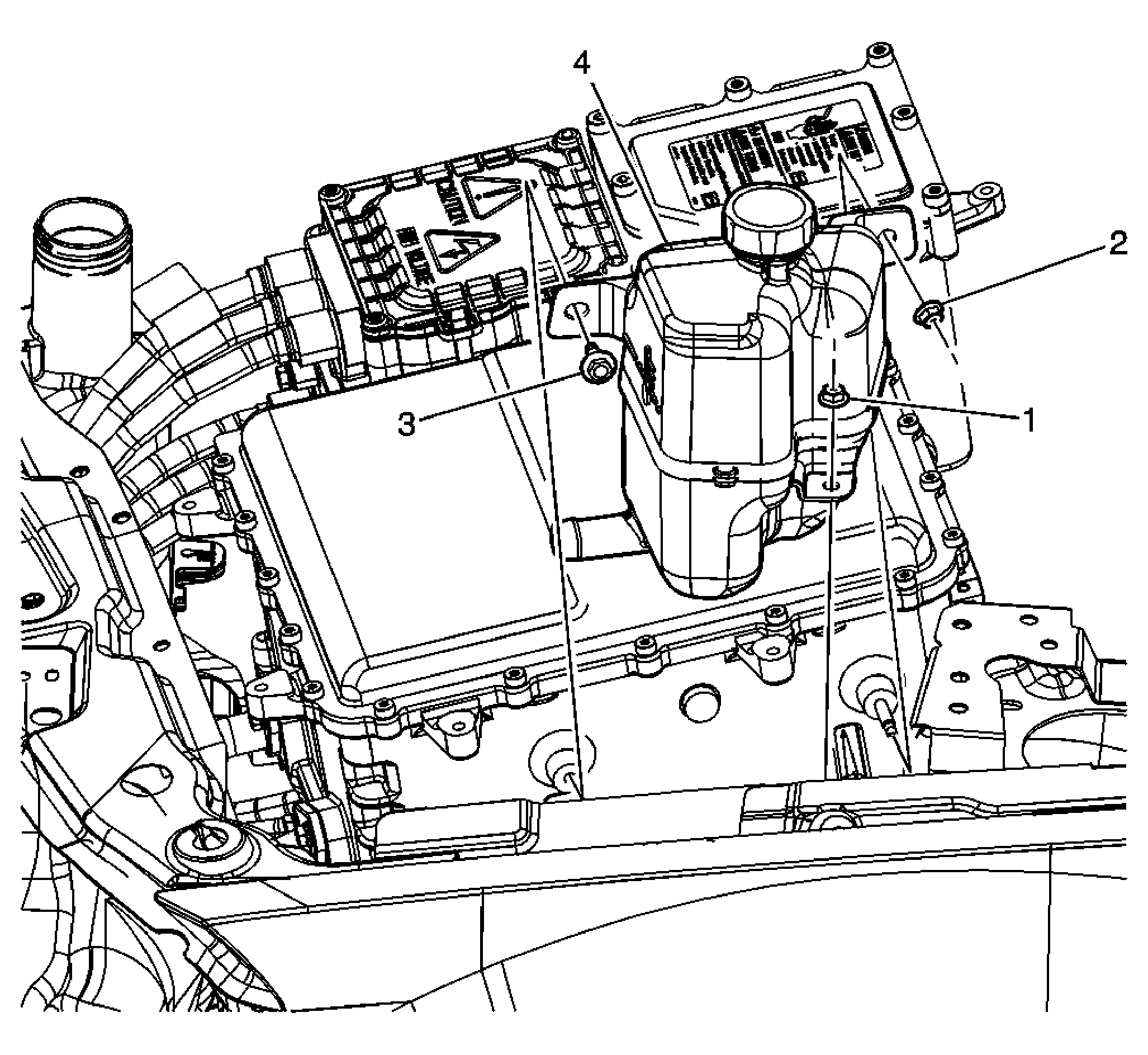

Fig 1: Radiator Surge Tank Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the generator control module cooling system. Refer to Generator Control Module Cooling System Draining and Filling . Remove the drive motor power inverter module bracket. Refer to Generator Control Module Bracket Replacement . Remove the radiator surge tank outlet hose. Refer to Radiator Surge Tank Outlet Hose Replacement .
1	Radiator Surge Tank Nut CAUTION: Refer to Fastener Caution . Tighten: 7.5 N.m (66 lb in)
2	Radiator Surge Tank Nut Tighten: 7.5 N.m (66 lb in)
3	Radiator Surge Tank Bolt Tighten: 7.5 N.m (66 lb in)
4	Radiator Surge Tank
