Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

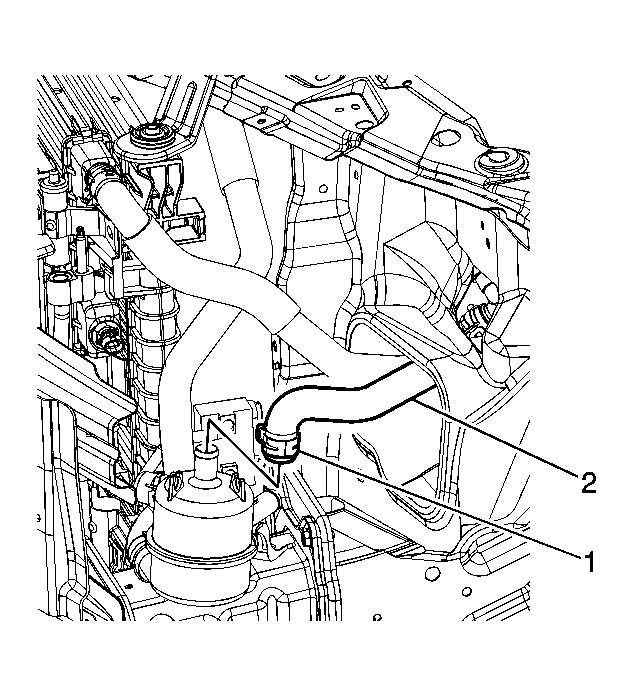

Fig 1: Radiator Surge Tank Outlet Hose At Radiator Air Separator

Courtesy of GENERAL MOTORS CORP.

Install the radiator surge tank outlet hose into the vehicle.
Using J 38185: Hose Clamp Pliers reposition the radiator surge tank outlet hose clamp (1) and install the radiator surge tank outlet hose (2) to the air separator.

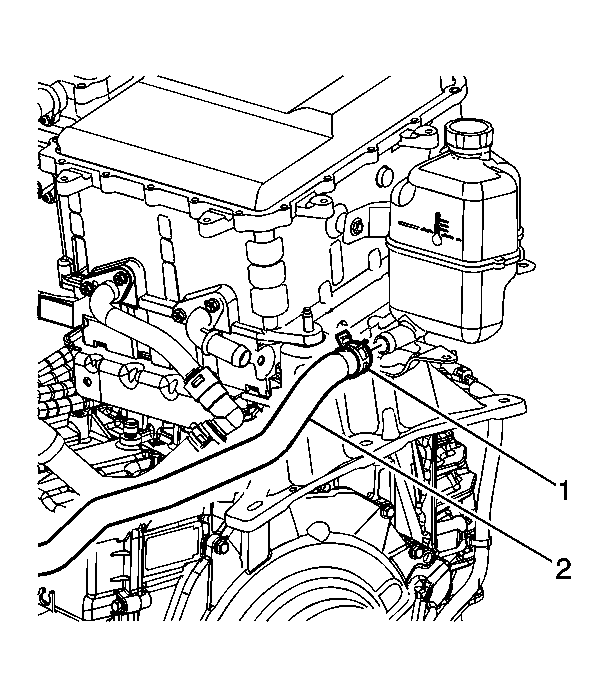

Fig 2: Radiator Surge Tank Outlet Hose At Surge Tank

Courtesy of GENERAL MOTORS CORP.

Using J 38185: Hose Clamp Pliers reposition the radiator surge tank outlet hose clamp (1) and install the radiator surge tank outlet hose (2) to the radiator surge tank.
Install the drive motor power inverter module bracket. Refer to Generator Control Module Bracket Replacement .
Fill the generator control module cooling system. Refer to Generator Control Module Cooling System Draining and Filling .
