Transfer Case Brace Replacement (LZ4 Transfer Case to Engine Block)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

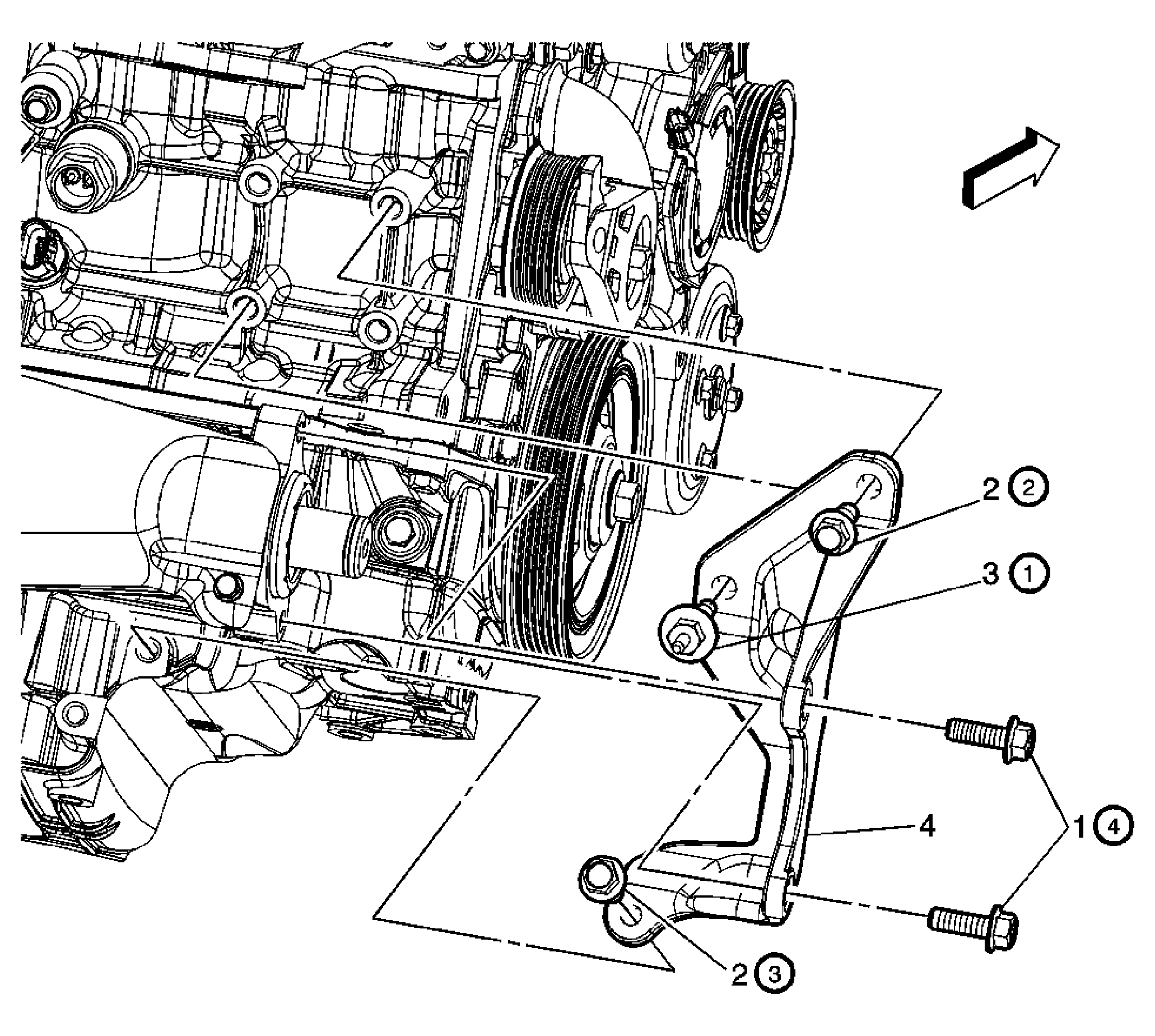

Fig 1: Transfer Case Brace Replacement (LZ4 Transfer Case to Engine Block)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the right wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement .
1	Transfer Case Brace Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tip: Tighten the fasteners in the specified sequential order. Tighten: 23 N.m (17 lb ft)
2	Transfer Case Brace Bolt (Qty: 2) Tip: Tighten the fasteners in the specified sequential order. Tighten: 50 N.m (37 lb ft)
3	Transfer Case Brace Stud Tip: Tighten the fasteners in the specified sequential order. Tighten: 50 N.m (37 lb ft)
4	Transfer Case Brace
