Intermediate Drive Shaft Installation

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

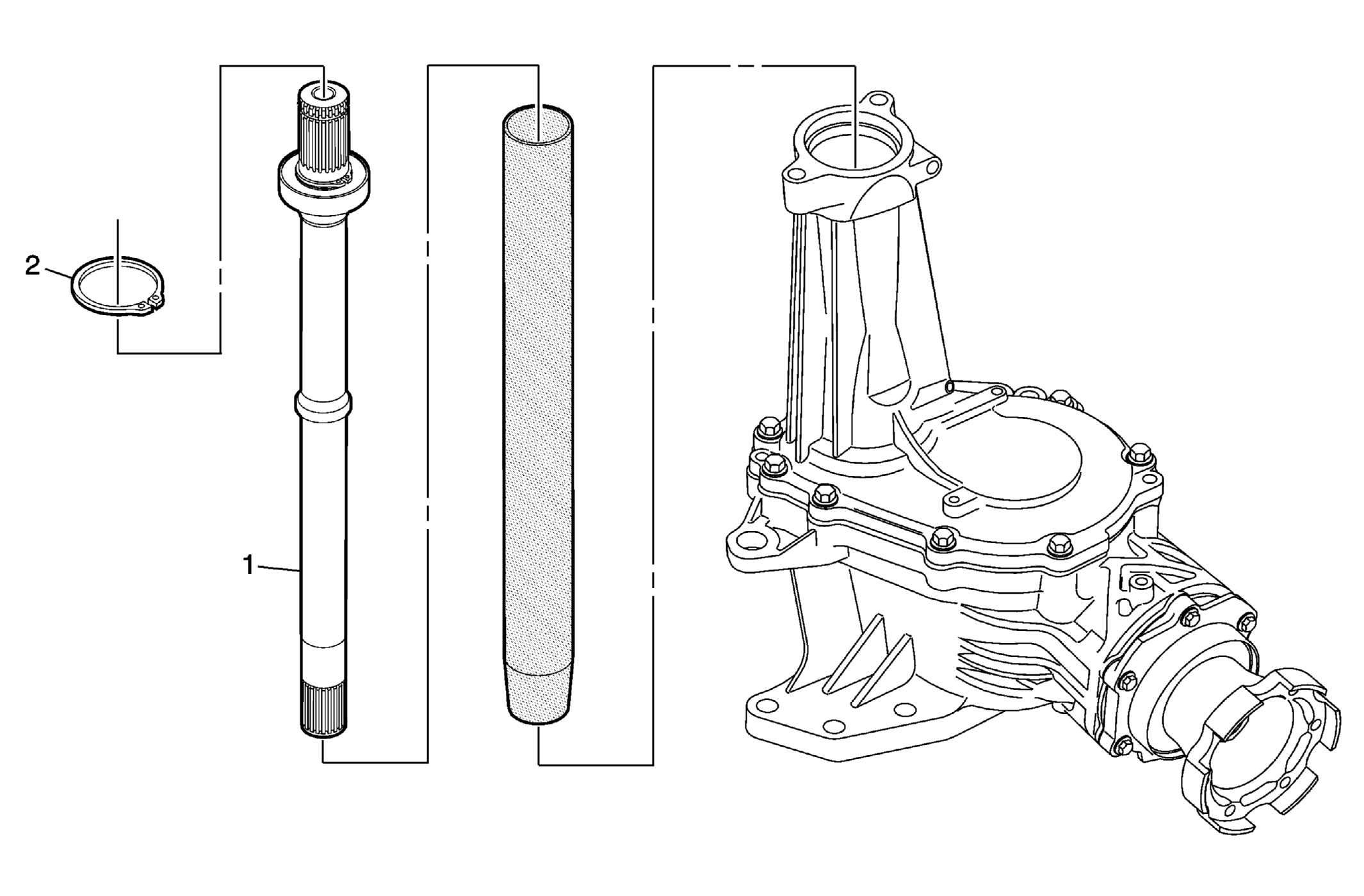

Fig 1: Intermediate Drive Shaft

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Wheel Drive Intermediate Shaft CAUTION: DT-48094 must be used over the intermediate shaft prior to installation in order to protect the intermediate shaft seal from damage. Special Tools DT-48094: Inner Drive Shaft Seal Protector J-25070: Heat Gun - 500-750F
2	Front Wheel Drive Retainer

Callout

Component Name

Front Wheel Drive Intermediate Shaft

CAUTION: DT-48094 must be used over the intermediate shaft prior to installation in order to protect the intermediate shaft seal from damage.

Special Tools

DT-48094: Inner Drive Shaft Seal Protector
J-25070: Heat Gun - 500-750F

Front Wheel Drive Retainer
