Input Shaft Seal Replacement - Left

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

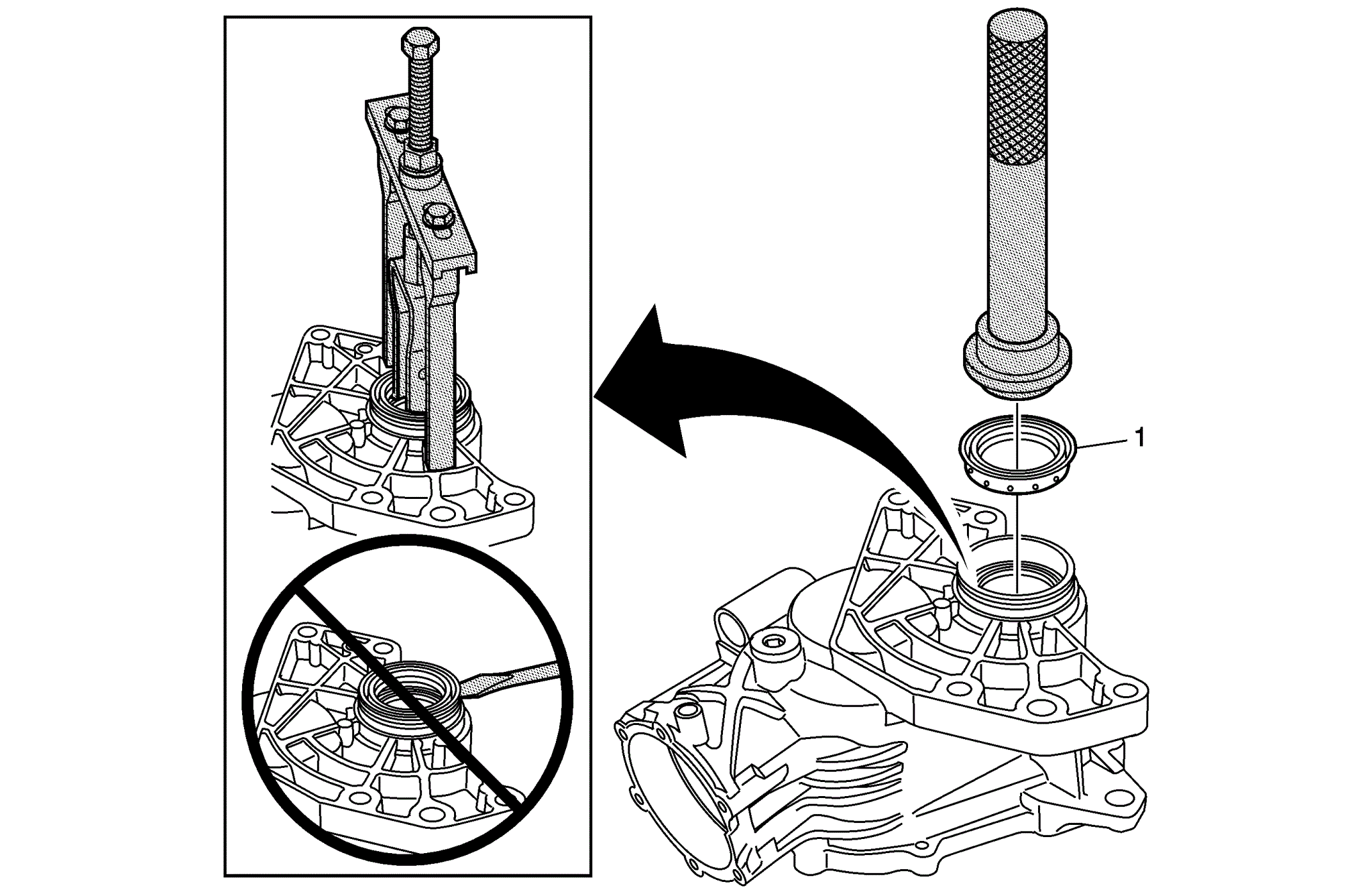

Fig 1: Identifying Left Transfer Case Input Shaft Seal

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Input Shaft Seal - Left CAUTION: Do not use a screwdriver or punch to remove the seal. Using a screwdriver or punch to remove the seal may damage the aluminum housing sealing surface. Special Tools DT-48074: Input and Output Shaft Seal Installer J-8092: Driver Handle J-26941: Bushing and Bearing Remover - 3-4 in J-45124: Removal Bridge

Callout

Component Name

Transfer Case Input Shaft Seal - Left

CAUTION: Do not use a screwdriver or punch to remove the seal. Using a screwdriver or punch to remove the seal may damage the aluminum housing sealing surface.

Special Tools

DT-48074: Input and Output Shaft Seal Installer
J-8092: Driver Handle
J-26941: Bushing and Bearing Remover - 3-4 in
J-45124: Removal Bridge
