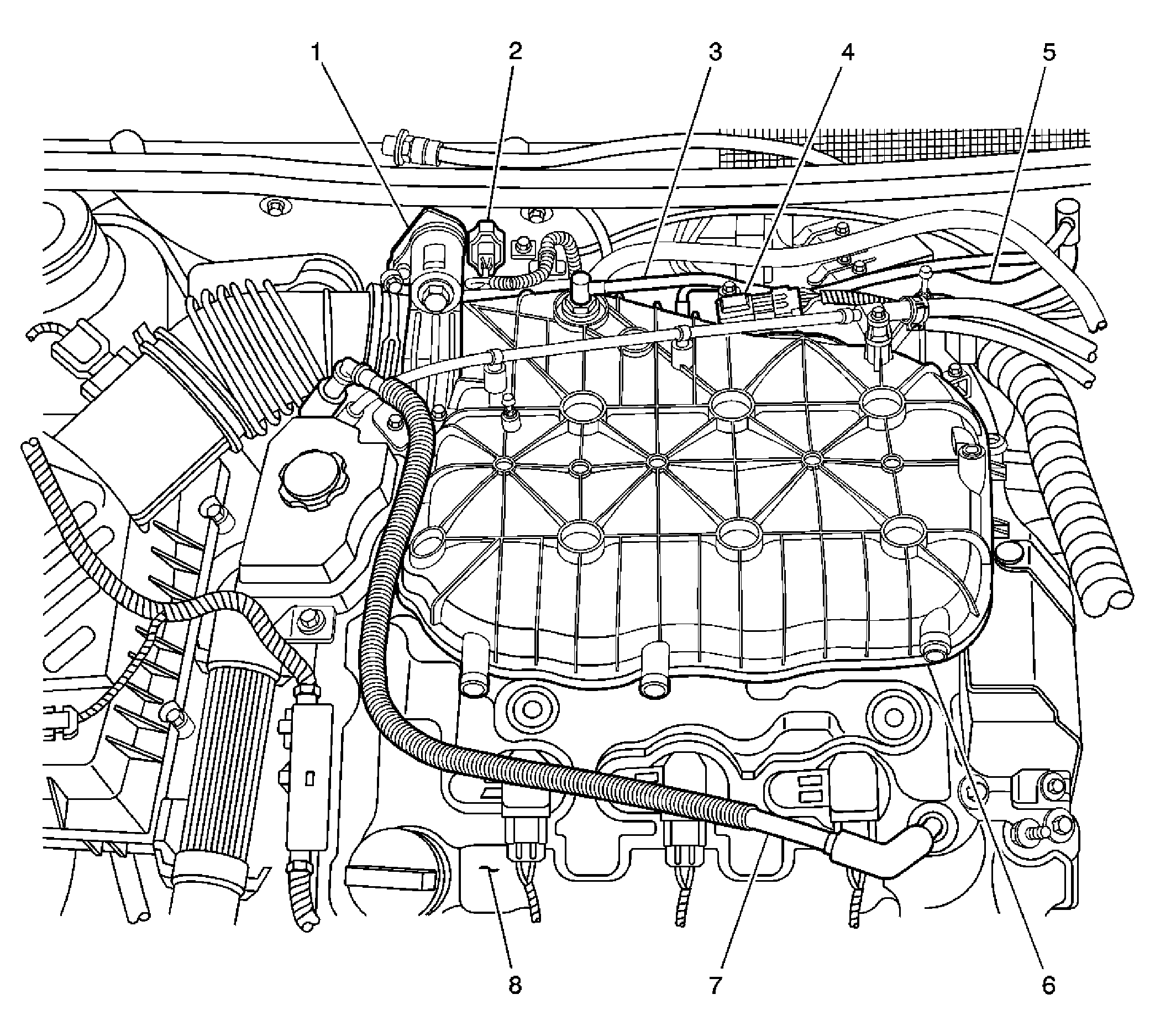

Emission Hose Routing Diagram
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Throttle actuator |
| 2 |
EVAP purge valve |
| 3 |
Line to PCV valve on valve cover |
| 4 |
MAP sensor-Not Equipped |
| 5 |
To brake booster-Not Equipped |
| 6 |
Intake manifold |
| 7 |
Crankcase ventilation hose |
| 8 |
Valve cover |
