Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

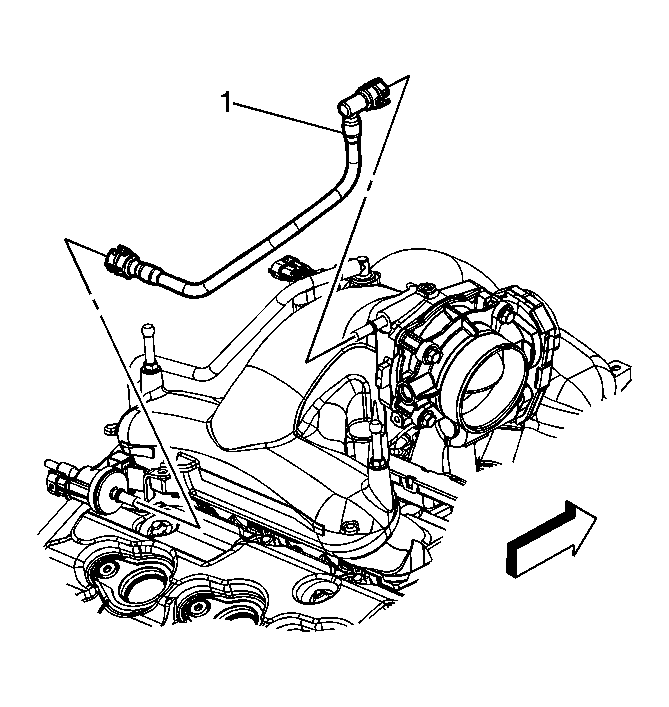

    Fig 1: EVAP Canister Purge Line
    GM1889291Courtesy of GENERAL MOTORS CORP.
  1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (LCS) .
  2. Disconnect the evaporative emission (EVAP) canister purge line quick connect fitting from the intake manifold. Refer to Plastic Collar Quick Connect Fitting Service .
  3. Disconnect the EVAP canister purge line quick connect fitting from the EVAP canister purge solenoid valve. Refer to Plastic Collar Quick Connect Fitting Service .
  4. Remove the EVAP canister purge line (1) from the vehicle.
