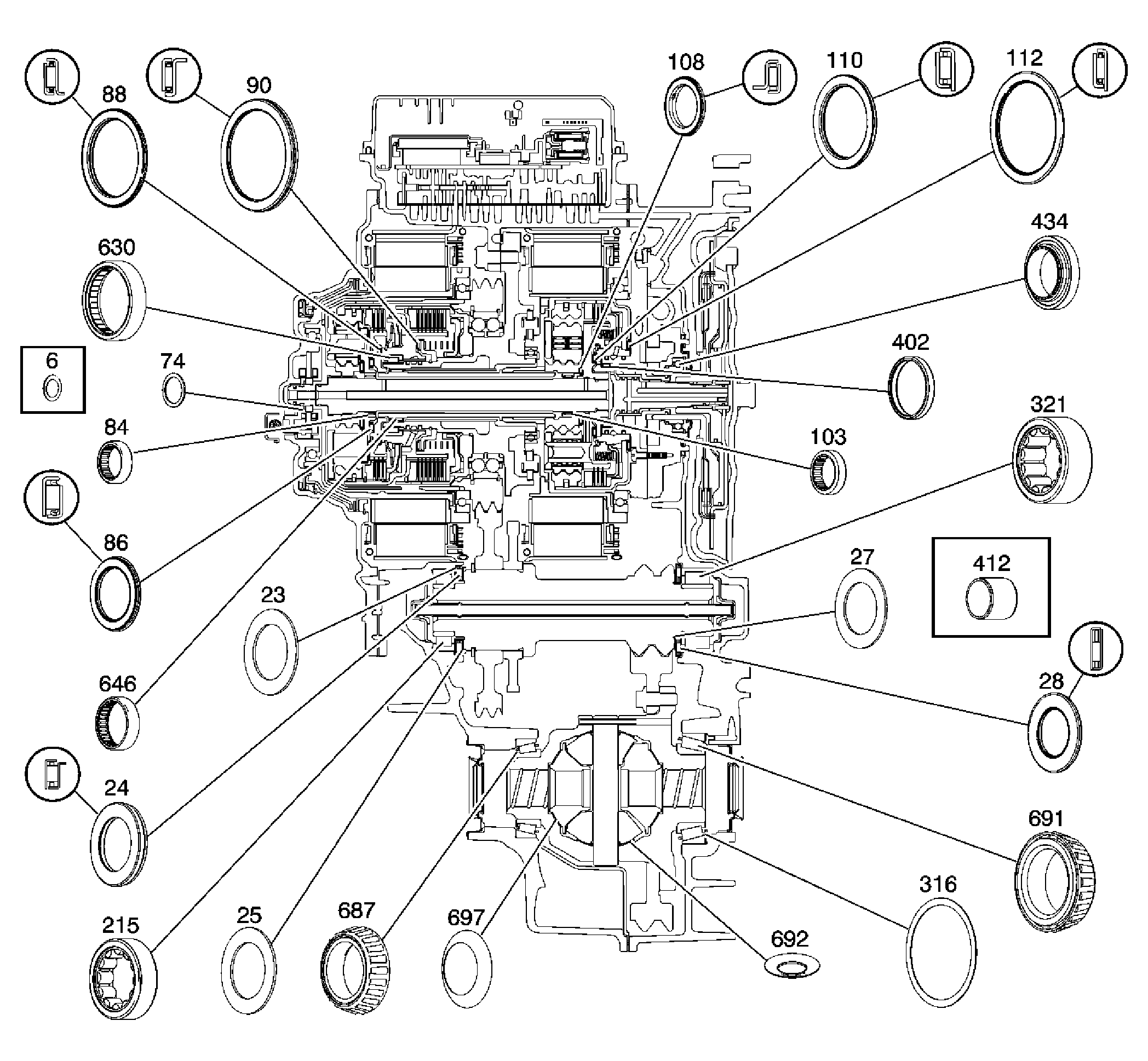

Bushing, Bearing, and Washer Locations
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 6 | Trans Fluid Cooler Outlet Washer |
| 23 | Front Differential Bearing Spacer |
| 24 | Front Drive Pinion Gear Shaft Thrust Bearing Assembly (LHS) |
| 25 | Front Differential Drive Pinion Gear Bearing Thrust Washer - Selective |
| 27 | Front Differential Drive Pinion Gear Bearing Thrust Washer Selective (RHS) |
| 28 | Front Drive Pinion Gear Shaft Thrust Bearing Assembly (RHS) |
| 74 | Drive Motor/Generator Position Sensor Rotor Washer |
| 84 | Output Carrier Roller Bearing Assembly |
| 86 | Output Carrier Thrust Bearing Assembly |
| 88 | Variable Hi and 2-3-4 Clutch Hub Thrust Bearing Assembly |
| 90 | Variable Hi and 2-3-4 Clutch Housing Thrust Bearing Assembly |
| 103 | Input Carrier Roller Bearing Assembly |
| 108 | Input Sun Gear Thrust Bearing Assembly |
| 110 | Input Carrier Thrust Bearing Assembly |
| 112 | 1-3 Reverse Clutch Thrust Bearing Assembly |
| 215 | Front Differential Drive Pinion Gear Roller Bearing Assembly |
| 316 | Front Differential Bearing Washer - Selective |
| 321 | Front Differential Drive Pinion Gear Roller Bearing Assembly |
| 402 | Input Shaft Bearing Assembly |
| 412 | A/Trans Fluid Pump Drive Shaft Bushing |
| 434 | A/Trans Torque Dampener Bearing Assembly |
| 630 | Center Support Roller Bearing Assembly |
| 646 | Input Sun Gear Shaft Roller Bearing Assembly |
| 687 | Front Differential Carrier Bearing Assembly (LHS) |
| 691 | Front Differential Carrier Bearing Assembly (RHS) |
| 692 | Differential Pinion Gear Thrust Washer |
| 697 | Differential Side Gear Thrust Washer |
