Fluid Pump Assembly Assemble
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

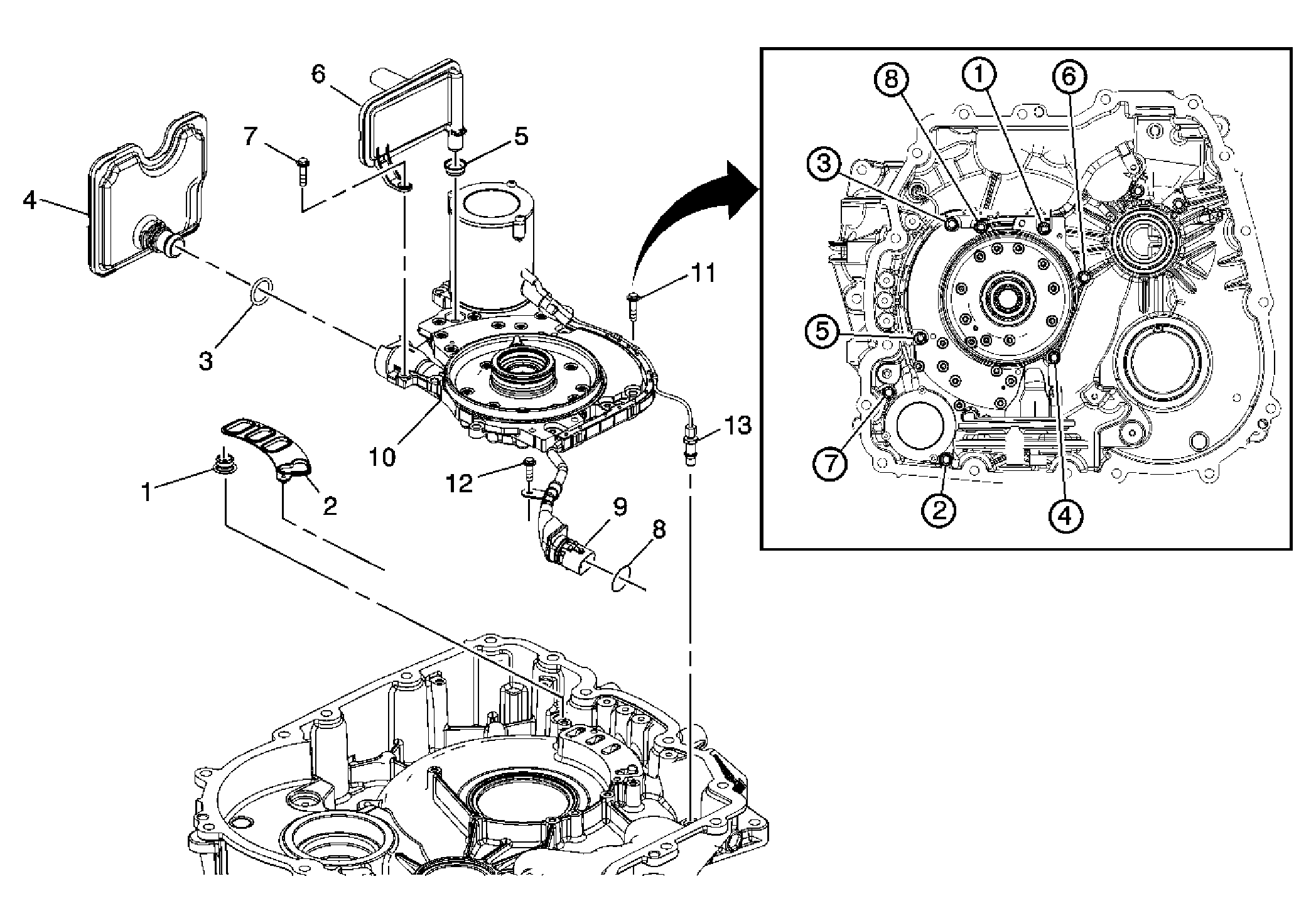

Fluid Pump Assembly Assemble
| Callout | Component Name |
|---|---|
| 1 | A/Trans Pump Fluid Outlet Seal Assembly |
| 2 | A/Trans Fluid Pump Seal Assembly |
| 3 | A/Trans Fluid Filter Seal |
| 4 | A/Trans Fluid Filter |
| 5 | A/Trans Auxiliary Fluid Filter Seal Assembly |
| 6 | A/Trans Auxiliary Fluid Filter Assembly Tip: Rotate until tab on filter aligns with slot on pump housing. |
| 7 | A/Trans Fluid Filter Bolt M6 x 20 mm (Qty: 1) Tighten: 9 N.m (80 lb in) |
| 8 | Pump Wiring Harness Connector Seal |
| 9 | A/Trans Auxiliary Fluid Pump Connector |
| 10 | A/Trans Fluid Pump Assembly |
| 11 | A/Trans Fluid Pump Bolt M6 x 25 mm (Qty: 8) Procedure: Tighten in sequence shown. Tighten: 9 N.m (80 lb in) |
| 12 | A/Trans Auxiliary Fluid Pump Wiring Harness Bolt M6 x 20 mm (Qty: 1) Tighten: 9 N.m (80 lb in) |
| 13 | A/Trans Auxiliary Fluid Pump Vent Fitting |
