Manual Shift Shaft Position Switch and Fluid Level Control Valve Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

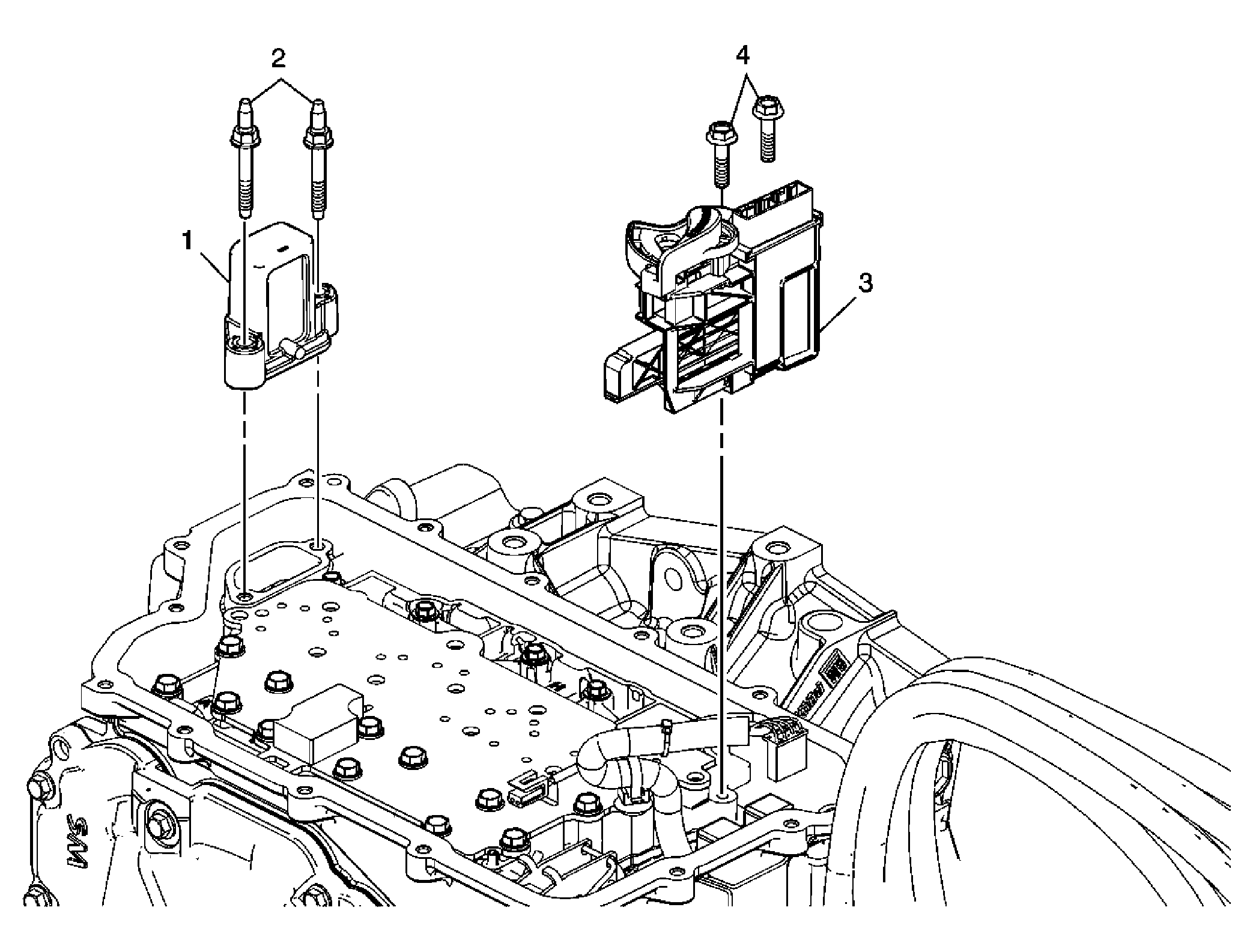

| Callout | Component Name |
|---|---|
| 1 | A/Trans Fluid Level Control Valve |
| 2 | A/Trans Fluid Level Control Valve Stud M6 x 40 mm (Qty: 2)
CAUTION:
Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Tighten: 9 N.m (80 lb in) |
| 3 | A/Trans Manual Shift Shaft Position Switch Assembly Tip: Insure the sensor slide is engaged with the pin on the detent lever. |
| 4 | A/Trans Manual Shaft Position Switch Bolt M6 x 25 mm (Qty: 2) Tighten: 9 N.m (80 lb in) |
