Front Differential Drive Pinion Gear Roller Bearing and Lubricant Dam Replacement: Install

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

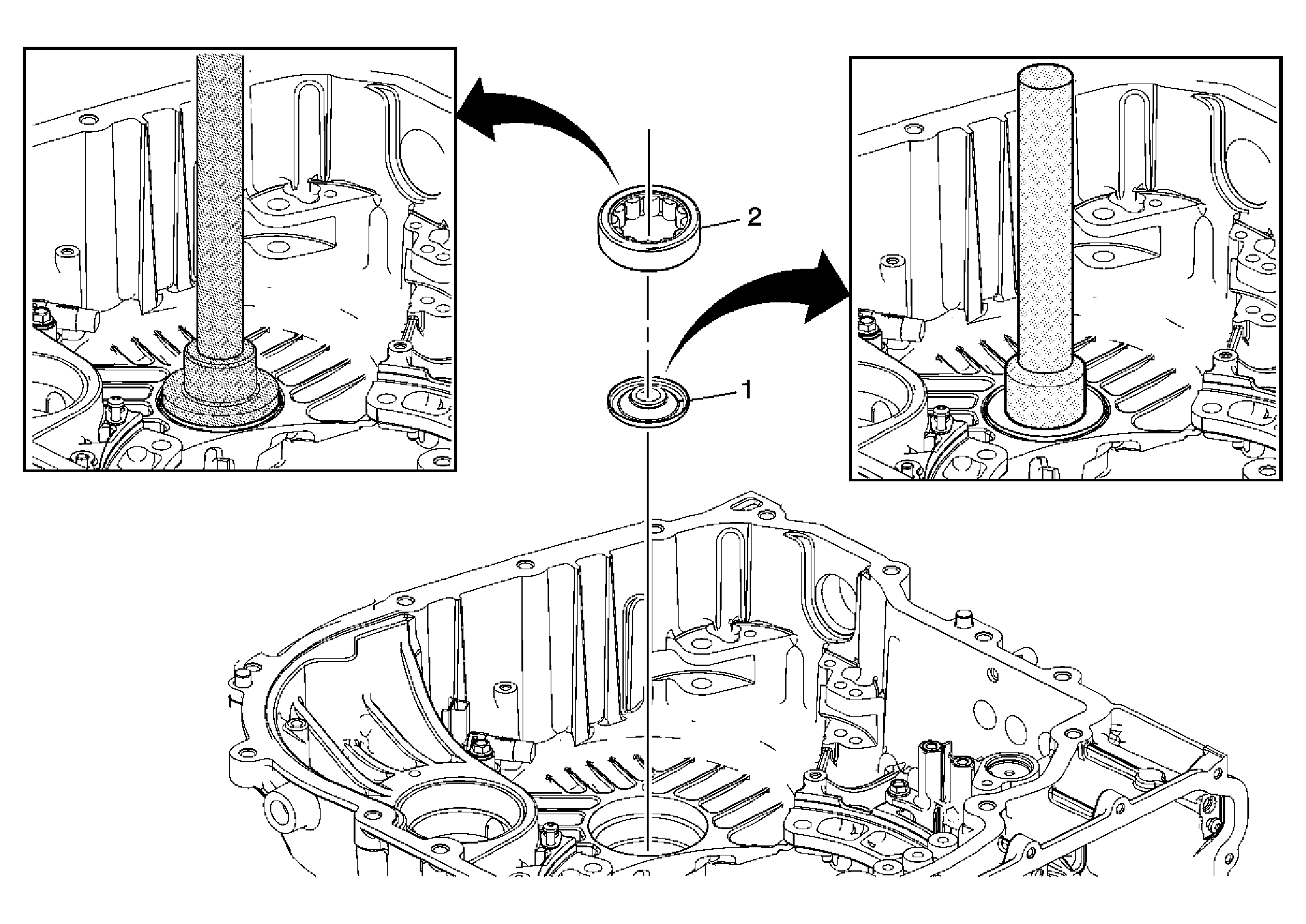

Fig 1: Front Differential Drive Pinion Gear Roller Bearing and Lubricant Dam - Installation

Courtesy of GENERAL MOTORS CORP.

Install

Callout	Component Name
1	Front Differential Drive Pinion Gear Lube Dam Special Tools J 8092: Driver Handle J-46630: Lube Dam Installer For equivalent regional tools, refer to Special Tools .
2	Front Differential Drive Pinion Gear Roller Bearing Assembly Special Tools DT-49229: Transfer Shaft Bearing Installer J 8092: Driver Handle For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Front Differential Drive Pinion Gear Lube Dam

Special Tools

J 8092: Driver Handle
J-46630: Lube Dam Installer

For equivalent regional tools, refer to Special Tools .

Front Differential Drive Pinion Gear Roller Bearing Assembly

Special Tools

DT-49229: Transfer Shaft Bearing Installer
J 8092: Driver Handle

For equivalent regional tools, refer to Special Tools .
