Front Differential Drive Pinion Gear Bearing Cup Installation - Torque Dampener Side

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

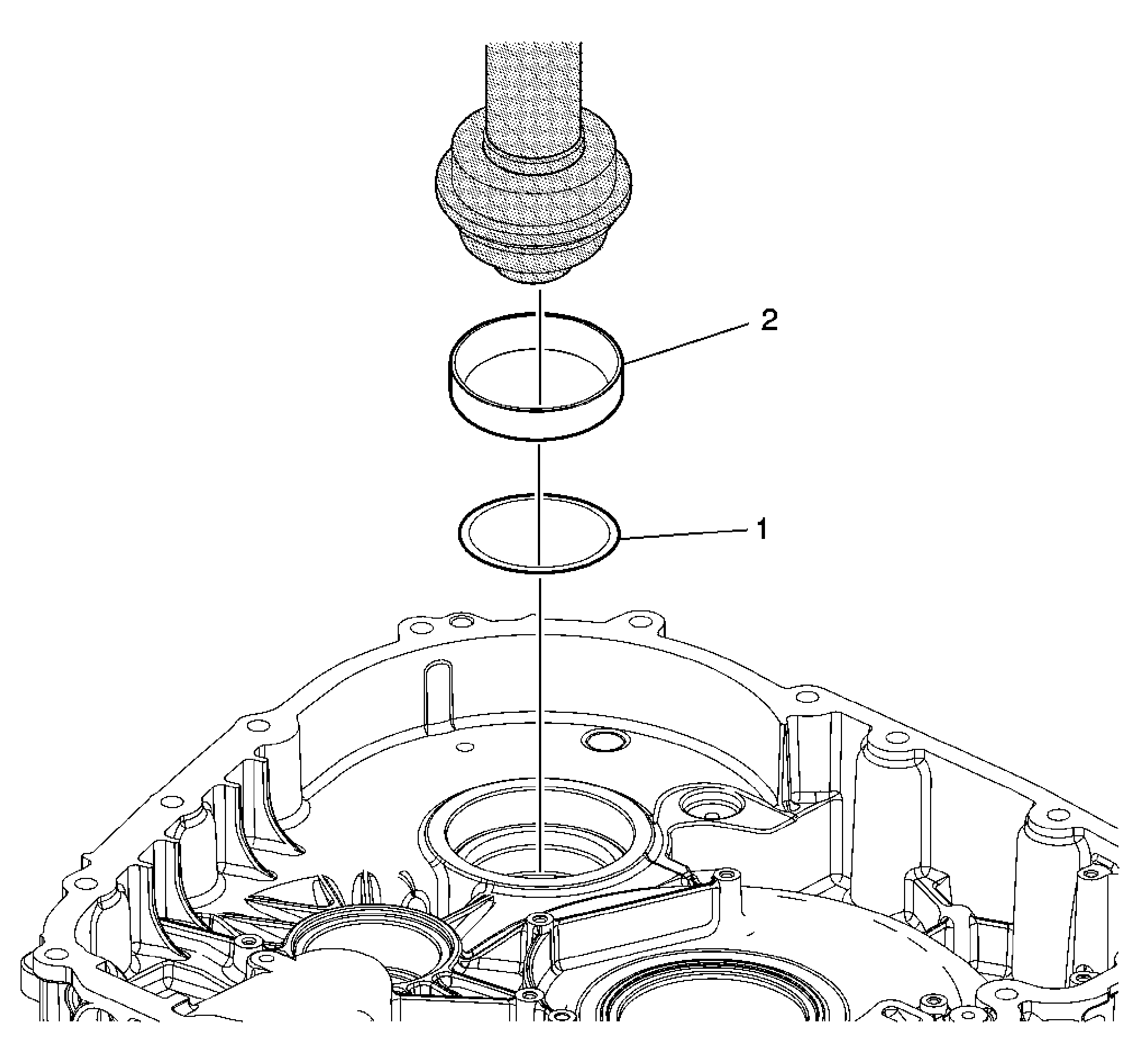

Fig 1: Front Differential Drive Pinion Gear Bearing Cup - Torque Dampener Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Install the correct differential bearing washer as determined by the thrust washer measurement procedure. Refer to Front Differential Drive Pinion Gear Bearing Thrust Washer and Front Differential Bearing Washer Measurement . Do not install the bearing cup until after the selective washer measurement has been performed. Refer to Front Differential Drive Pinion Gear Bearing Thrust Washer and Front Differential Bearing Washer Measurement .
1	Front Differential Bearing Washer - Selective
2	Front Differential Drive Pinion Gear Bearing Cup CAUTION: Support the back side of the torque dampener housing while installing the bearing cup. Install the bearing cup until it stops moving. Applying excessive pressure to the bearing cup once it is seated could cause damage to the torque dampener housing casting. Special Tools DT-49263: Bearing Cup Installer J 8092: Driver Handle For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedures

Install the correct differential bearing washer as determined by the thrust washer measurement procedure. Refer to Front Differential Drive Pinion Gear Bearing Thrust Washer and Front Differential Bearing Washer Measurement .
Do not install the bearing cup until after the selective washer measurement has been performed. Refer to Front Differential Drive Pinion Gear Bearing Thrust Washer and Front Differential Bearing Washer Measurement .

Front Differential Bearing Washer - Selective

Front Differential Drive Pinion Gear Bearing Cup

CAUTION: Support the back side of the torque dampener housing while installing the bearing cup. Install the bearing cup until it stops moving. Applying excessive pressure to the bearing cup once it is seated could cause damage to the torque dampener housing casting.

Special Tools

DT-49263: Bearing Cup Installer
J 8092: Driver Handle

For equivalent regional tools, refer to Special Tools .
