Front Differential Carrier Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

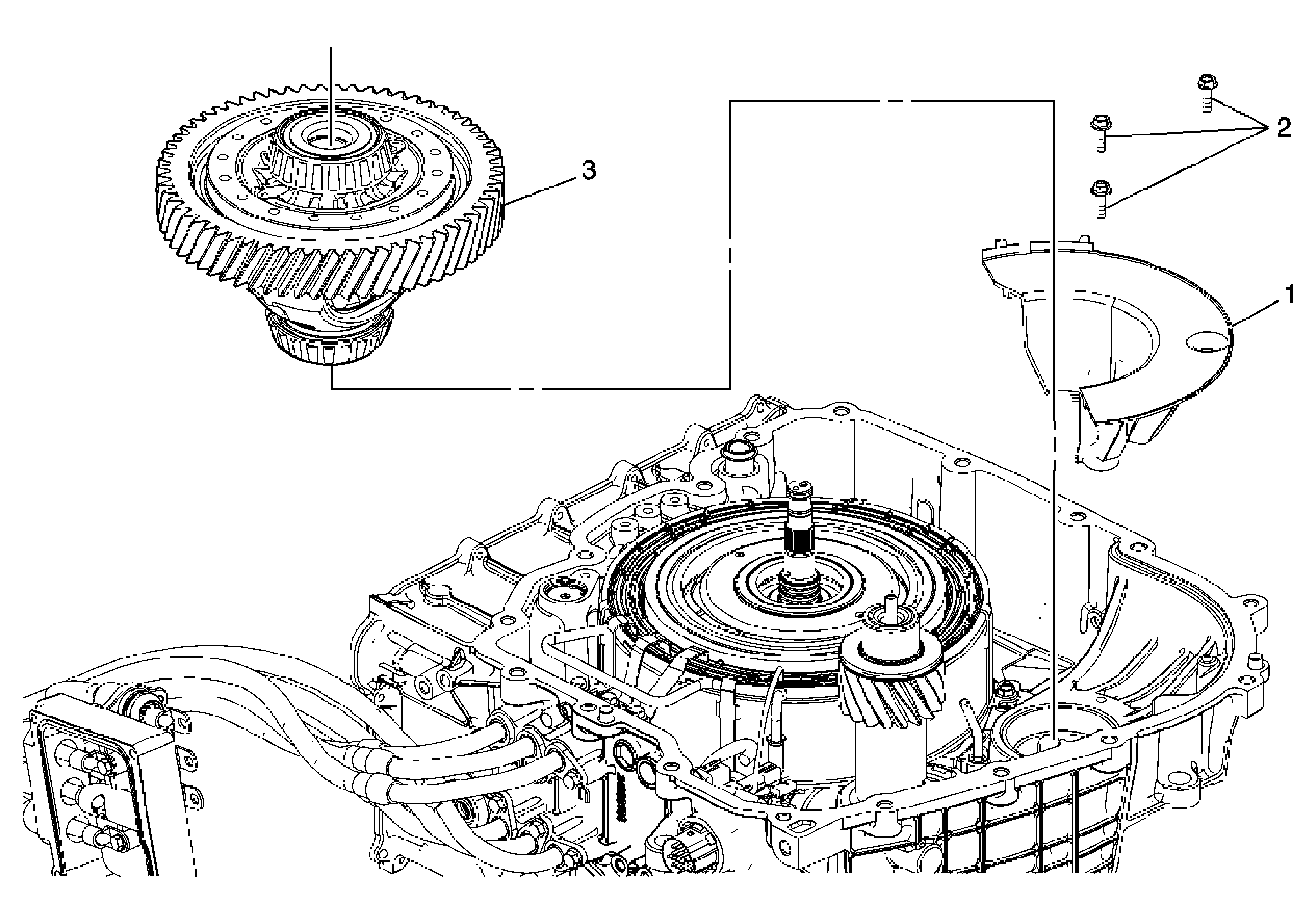

| Callout | Component Name |
|---|---|
| 1 | Front Differential Carrier Baffle Tip: Inspect the collection debree magnet before installation located on the underside of the baffle. |
| 2 | Front Differential Carrier Baffle Bolt M6 x 20 mm (Qty: 3)
CAUTION:
Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Tighten: 9 N.m (80 lb in) |
| 3 | Front Differential Carrier Assembly (FWD) |
