Front Differential Carrier Bearing Replacement: Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Installation

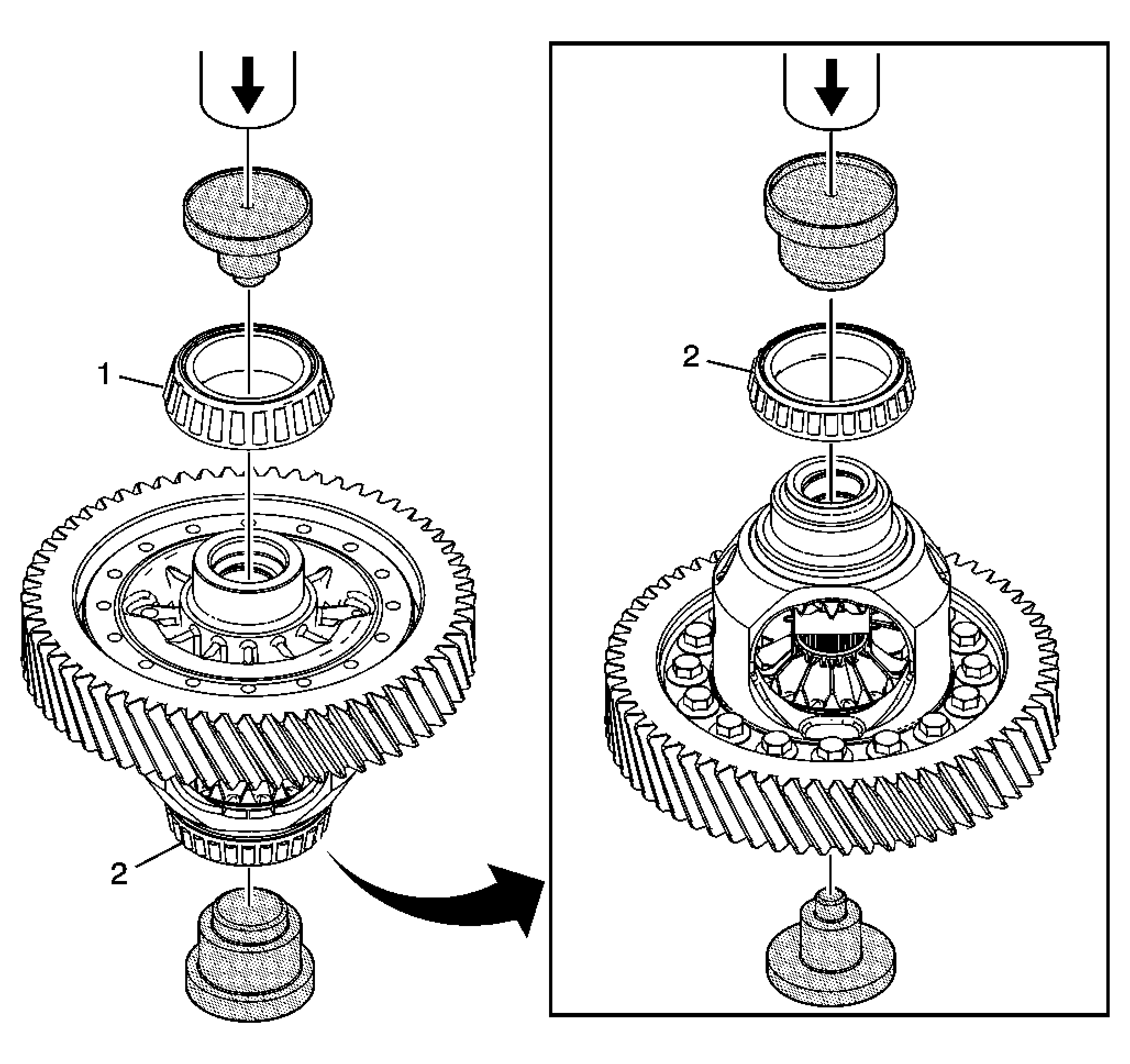

| Callout | Component Name |
|---|---|
| 1 | Front Differential Carrier Bearing Assembly
CAUTION:
Pressing against the bearing assembly can damage the bearing and cause premature bearing failure. Tip: When installing the front differential carrier bearing assembly use DT-47928-2 bearing support which is part of DT-47928: bearing installer. Special Tools
For equivalent regional tools, refer to Special Tools . |
| 2 | Front Differential Carrier Bearing Assembly
CAUTION:
Pressing against the bearing assembly can damage the bearing and cause premature bearing failure. Tip: When installing the front differential carrier bearing assembly use DT-47928-2 bearing support which is part of DT-47928: bearing installer. Special Tools
For equivalent regional tools, refer to Special Tools . |
