Control Valve Body and Channel Plate Removal
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

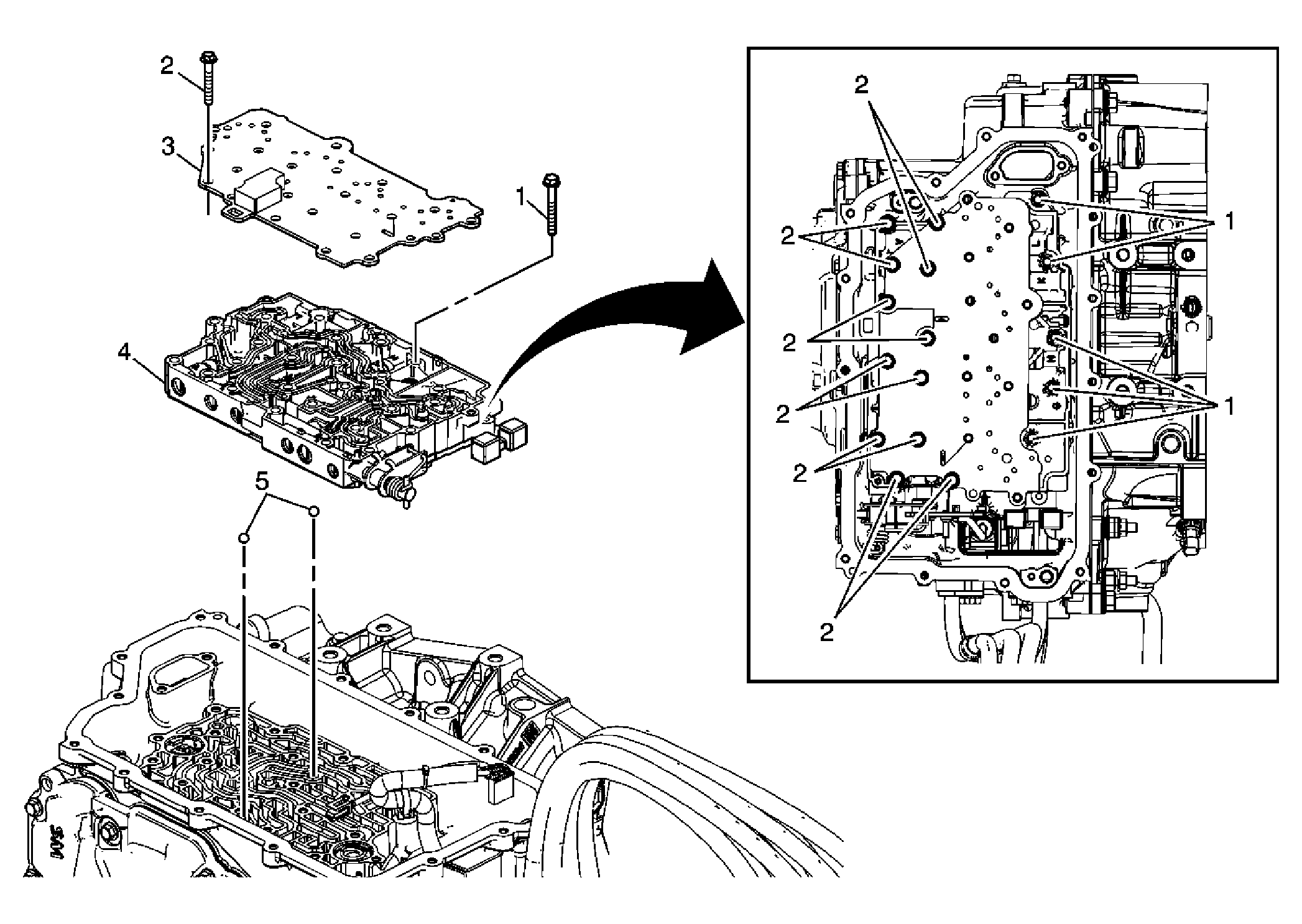

| Callout |
Component Name |
| 1 |
Control Valve Body Bolt M6 x 42 mm (Qty: 5) |
| 2 |
Control Valve Body Bolt M6 x 48 mm (Qty: 12) |
| 3 |
Control Valve Channel Plate Assembly |
| 4 |
Control Valve Body |
| 5 |
Ball Check Valve (Qty: 2) |
