Control Valve Body and Channel Plate Installation
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

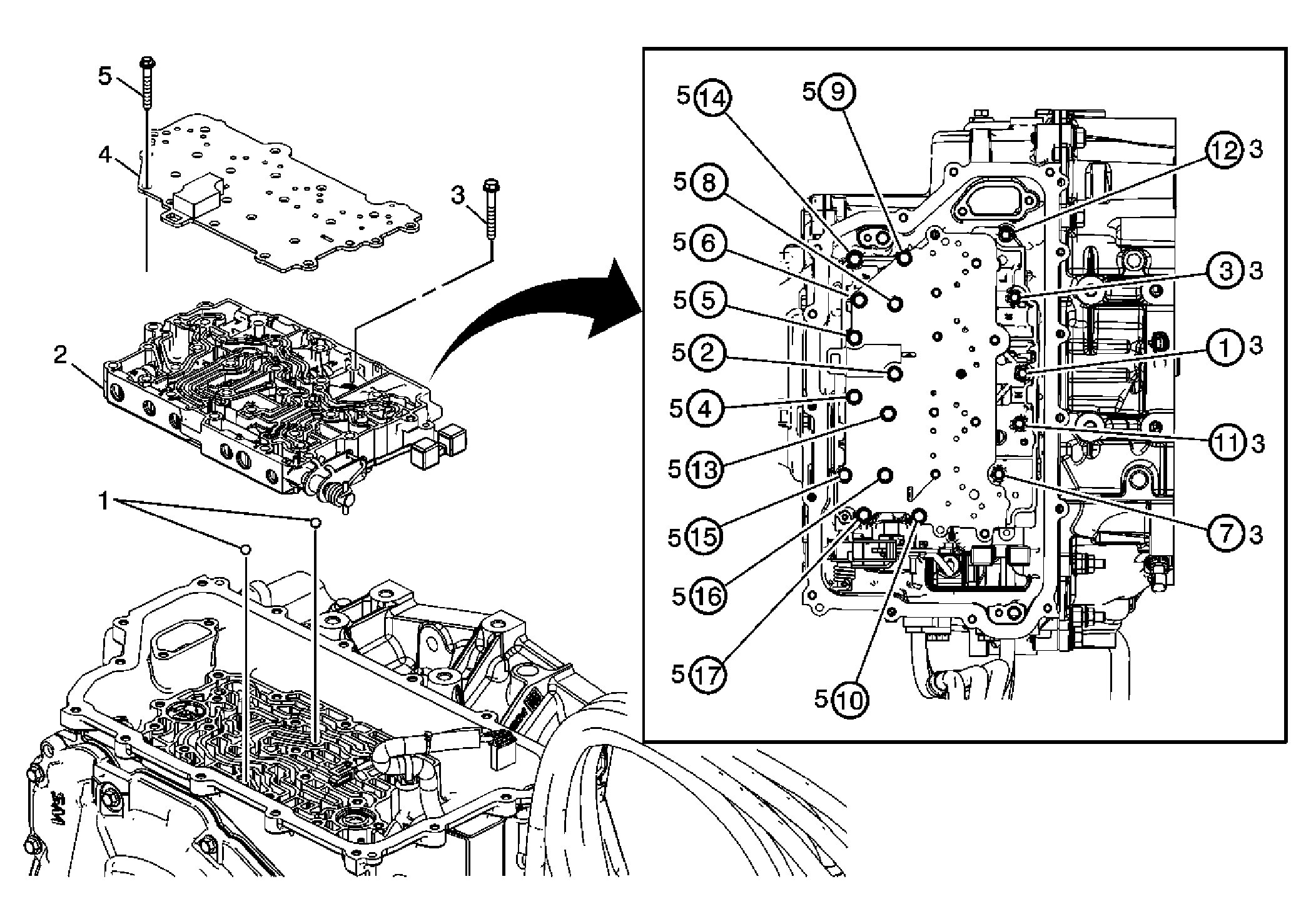

| Callout | Component Name |
|---|---|
| 1 | Ball Check Valves Tip: Refer to Ball Check Valve Locations . |
| 2 | Control Valve Body |
| 3 | Control Valve Body Bolt M6 x 42 mm (Qty: 5)
CAUTION:
Refer to Fastener Caution
. Procedure: Tighten the bolts in sequence shown. Tighten: 9 N.m (80 lb in) |
| 4 | Control Valve Channel Plate Assembly |
| 5 | Control Valve Body Bolt M6 x 48 (Qty: 12) Procedure: Tighten the bolts in sequence shown. Tighten: 9 N.m (80 lb in) |
